Getting started

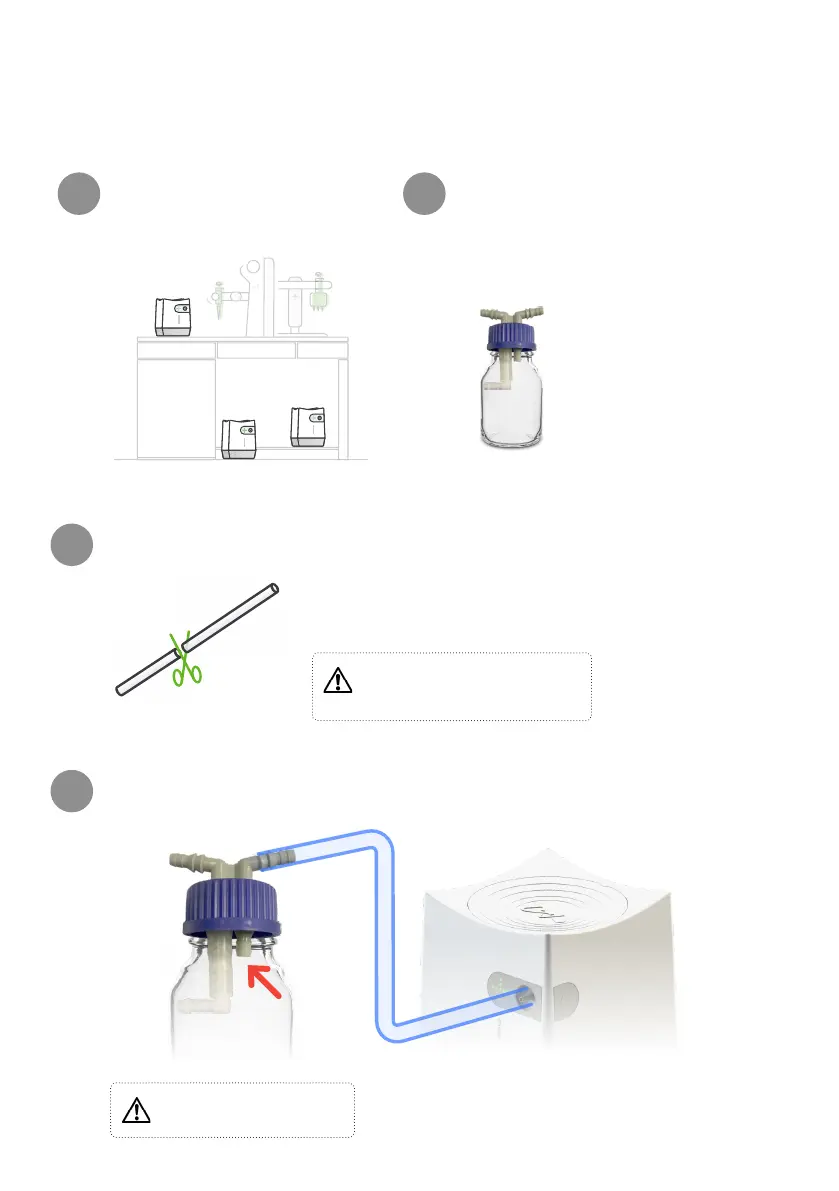

A. Install the vacuum pump and liquid trap system
Connect the Extraction+ vacuum pump
and the waste container using the silicone hose
If needed, cut the silicone hoses to the appropriate lengths
3
4
Bottle smaller than one
liter can also be placed
on the Extraction+
vacuum pump.
On or under the workbench,
or on the oor.
On or under the workbench,
or on the oor.
We recommend using the longest portion of
the hose for connecting the Extraction+ vacuum
pump to the waste container.
Place the Extraction+ vacuum
pump
Place the waste container
(GL45-threaded bottle)
1 2
Ensure that the connection is loose
enough to prevent the waste container
from falling.
This hose must be connected to the
shorter port of the thread.
