Watson-Marlow 620DuN and 620Du User Manual 95

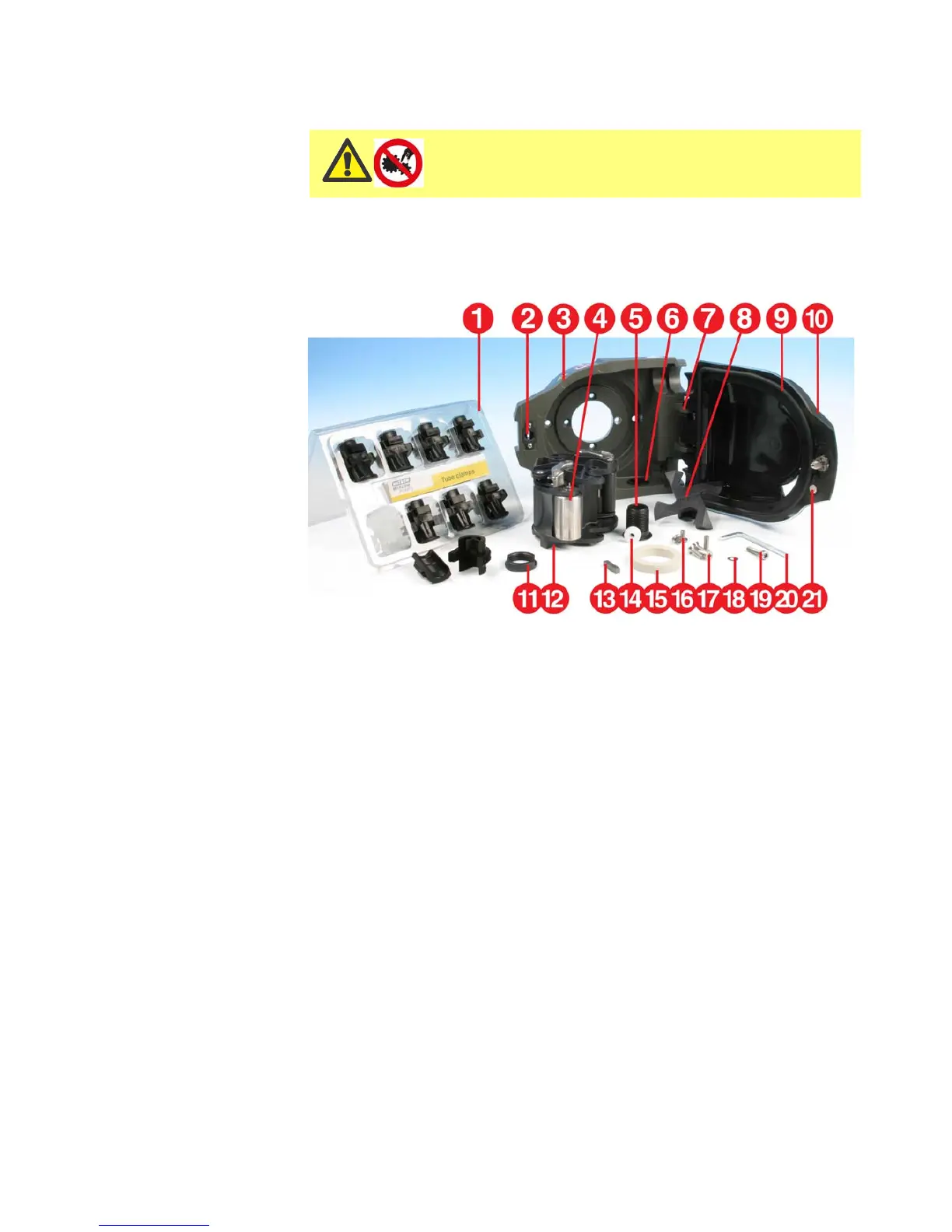

29.11 620RE, 620RE4 and 620R

pumphead spares

Ensure that the pumphead door is closed and

locked before SIP cleaning commences.
