Watts Vision BT-A02 RF User Manual

6 7
Systems

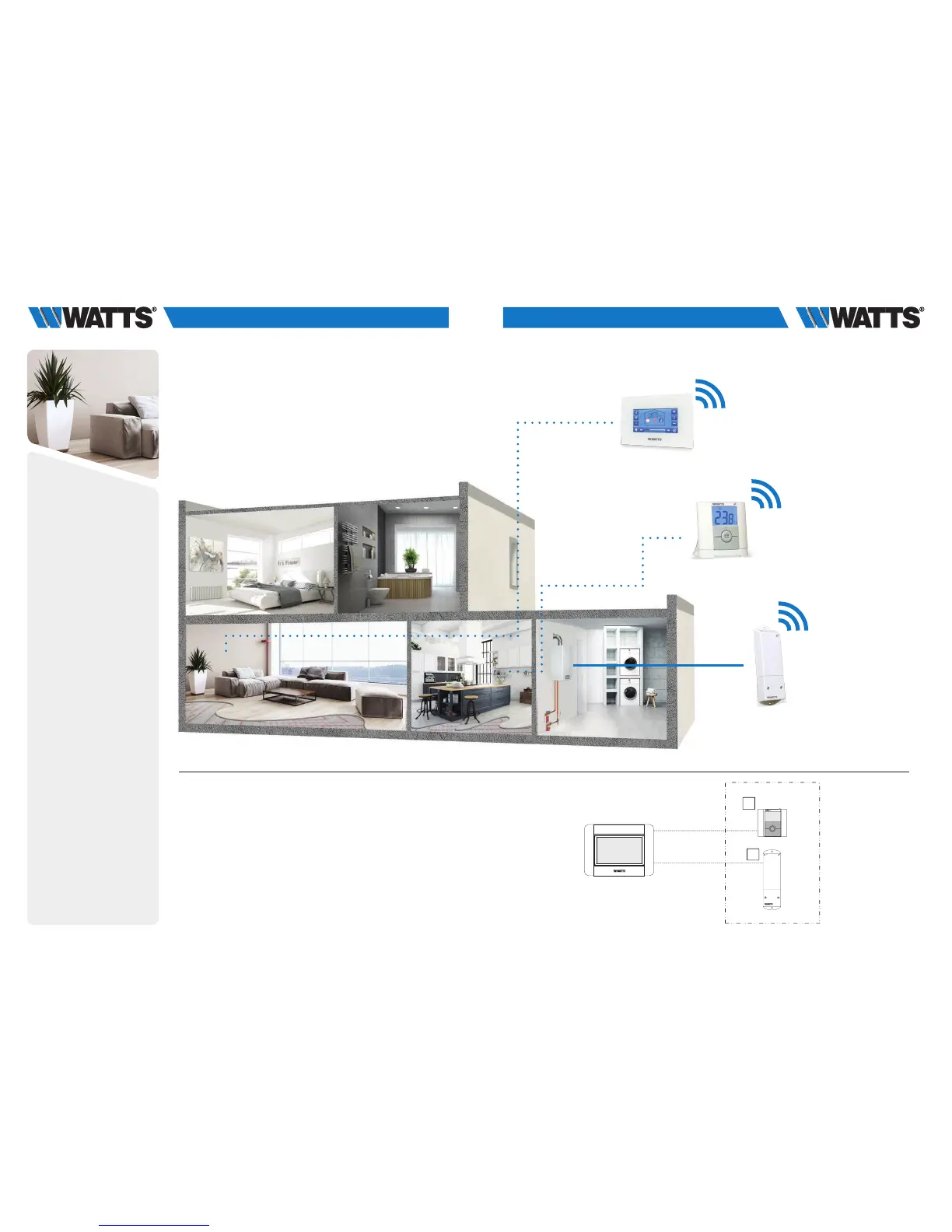

3.1 Hydraulic Systems with Central Unit
NOTE: Following representative examples and configurations are applicable only if Central Unit
BT-CT02 RF Software Version ≥ V.03.01
3.1.1 A thermostat (mono zone) managing a boiler (or a heat pump).
Equipments:
• 1 Thermostat BT-D02 RF (or BT-A02 or BT-DP02 RF)
• 1 Receiver BT-WR02 HC RF
• 1 Central Unit BT-CT02 RF
For a correct installation, refer to dedicated user guides of each product, then:
WIRING CONNECTION:
• Connect the receiver BT-WR02 HC RF to the heating relay of boiler (or heat
pump).
VIRTUAL – RF CONNECTION:
• Create a virtual room on Central Unit BT-CT02 RF
• Pair as Heating Device the thermostat to the Central Unit BT-CT02 RF
• Pair in heating mode the receiver BT-WR02 HC RF to the Central Unit
BT-CT02 RF
BT-CT02 RF
BT-D02 RF
BT-WR02 HC RF
9
For a correct installation, refer to dedicated user guides of each product, then:
WIRING CONNECTION:
• Connect the receiver BT-WR02 HC RF to the heating relay of boiler (or heat pump).
VIRTUAL – RF CONNECTION:
• Create a virtual room on Central Unit BT-CT02 RF
• Pair as Heating Device the thermostat to the Central Unit BT-CT02 RF
• Pair in heating mode the receiver BT-WR02 HC RF to the Central Unit BT-CT02 RF
BT-CT02 RF
BT-D02 RF
ZONE 1
1
2
BT-WR HC02 RF
BT-WR02 HC RF
