Watts Vision BT-A02 RF - Hydraulic Radiator Valve (Multi Zones) Managing a Boiler (or a Pump)

10 11
3.1.3 Hydraulic radiator valve (multi zones) managing a boiler
(or a pump).
Equipments:
• 1 (or more) Thermostatic Head BT-TH02 RF
• Option : BT-A02 RF or BT-D02 or BT-DP02 RF thermostats
• 1 Central Unit BT-CT02 RF
• 1 receiver BT-WR02 HC RF for driving a boiler or an heat pump
(or a BT-WR02 RF for driving a pump)
For a correct installation, refer to dedicated user guides of each product, then:
WIRING CONNECTION:
• Connect the receiver to the pump (boiler or heat pump)
VIRTUAL – RF CONNECTION:
• Create the virtual rooms in the Central Unit BT-CT02 RF
1. Option : Pair as Heating device a thermostat in each virtual room created
in the Central unit BT-CT02 RF
2. Pair as Heating Device each thermostatic head BT-TH02 RF in each virtual
room created in the Central Unit BT-CT02 RF by selecting the hydraulic
circuit. It’s possible to pair several BT-TH02 RF in the same room.
3. Pair the BT-WR02 HC RF (or BT-WR02 RF) receiver to the Central Unit
BT-CT02 RF as a hydraulic circuit then select the hydraulic circuit.
Devices configuration: go in the zone, select the information menu, select
the receiver and the hydraulic type, then the hydraulic circuit (refer to
HYDRAULIC SYSTEM PAIRING chapter on Central Unit user guide).

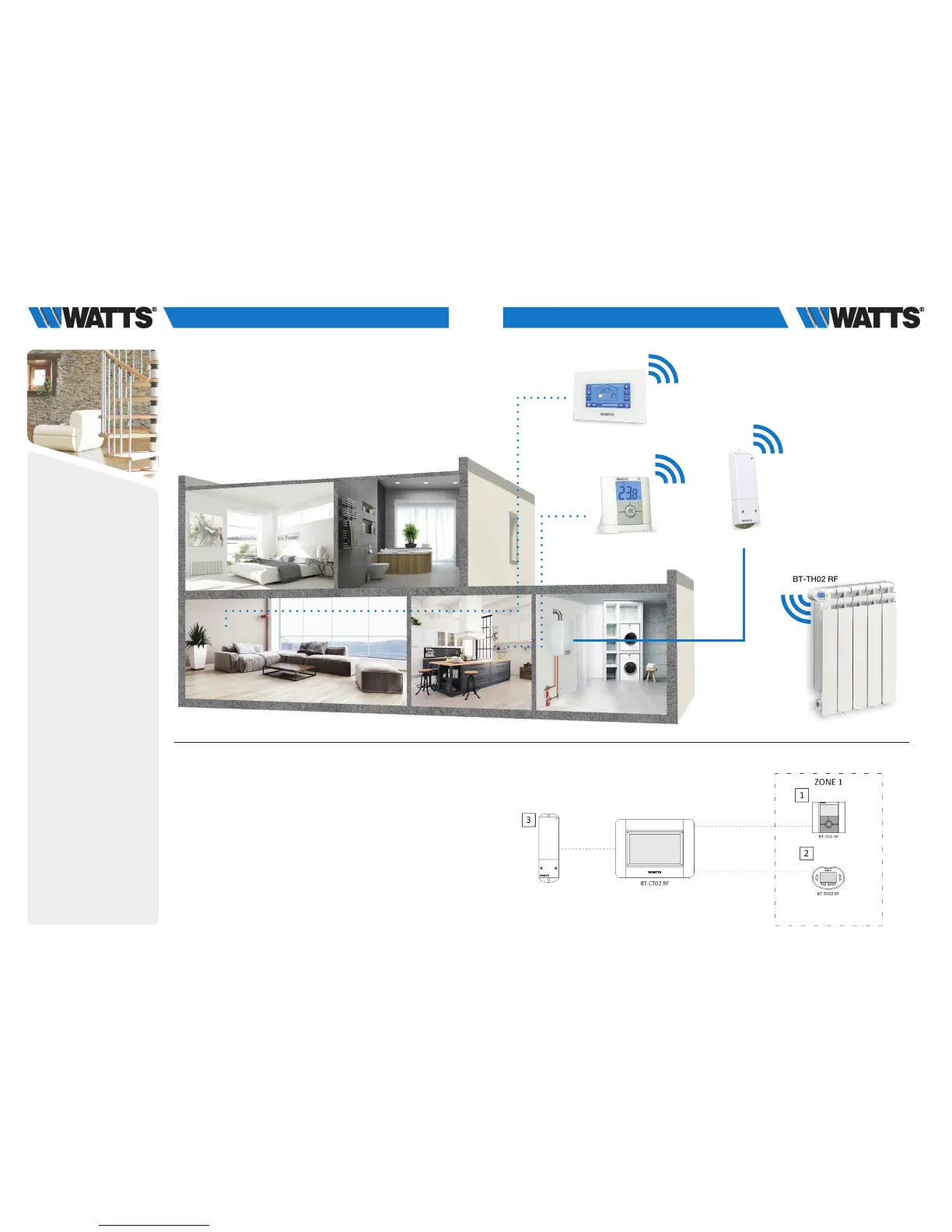

BT-CT02 RF
BT-D02 RF BT-WR02 HC RF
BT-TH02 RF
13
For a correct installation, refer to dedicated user guides of each product, then:
WIRING CONNECTION:
• Connect the receiver to the pump (boiler or heat pump)
VIRTUAL – RF CONNECTION:
• Create the virtual rooms in the Central Unit BT-CT02 RF
1. Option : Pair as Heating device a thermostat in each virtual room created in the Central
unit BT-CT02 RF
2. Pair as Heating Device each thermostatic head BT-TH02 RF in each virtual room created
in the Central Unit BT-CT02 RF by selecting the hydraulic circuit. It’s possible to pair
several BT-TH02 RF in the same room.
3. Pair the BT-WR02 HC RF (or BT-WR02 RF) receiver to the Central Unit BT-CT02 RF as a
hydraulic circuit then select the hydraulic circuit. Devices configuration: go in the zone,
select the information menu, select the receiver and the hydraulic type, then the
hydraulic circuit (refer to HYDRAULIC SYSTEM PAIRING chapter on Central Unit user
guide).
BT-WR02 HC RF
