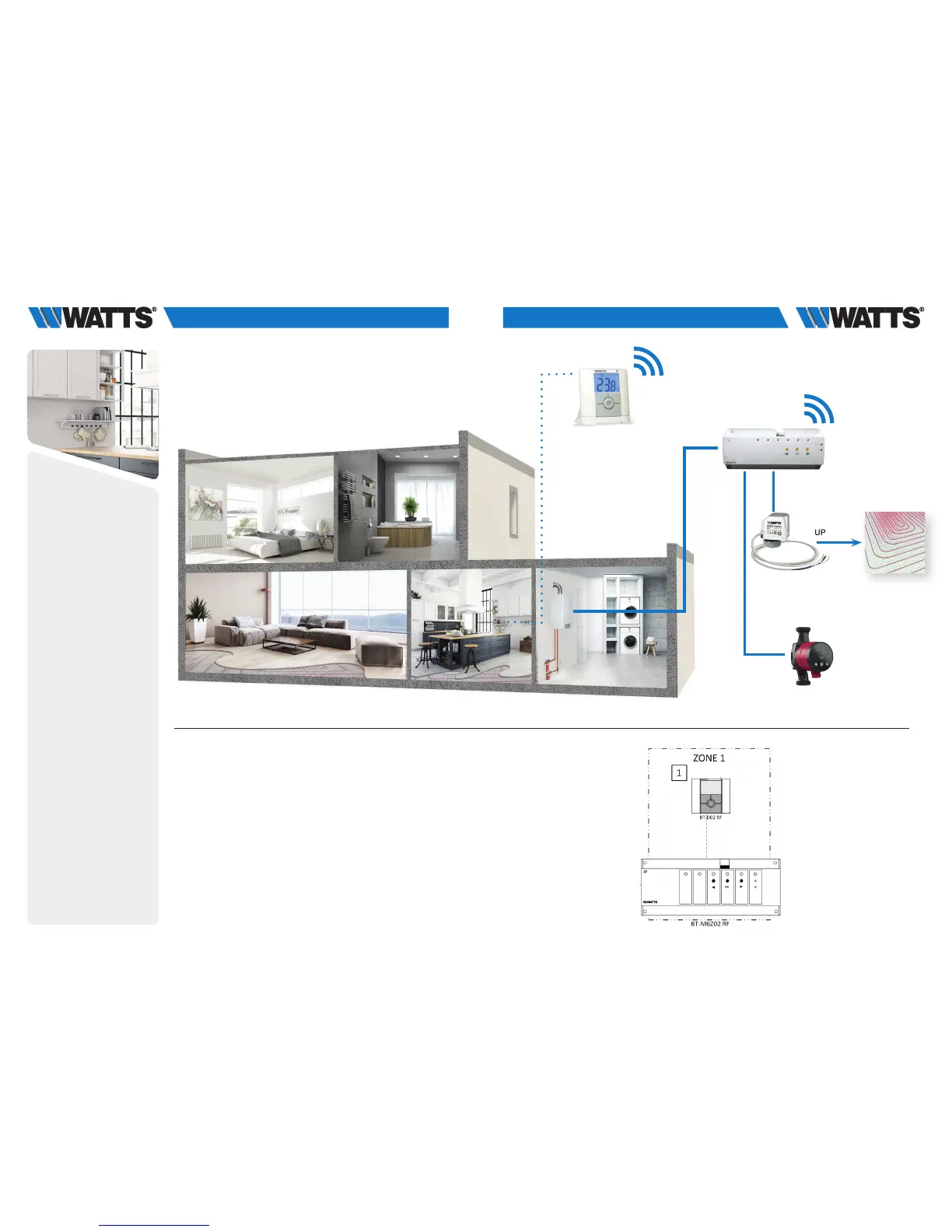

3.2.3 Water floor heating (only 1 BT-M6Z02 RF).
Equipments:
• 1 Connecting Box BT-M6Z02 RF
• 1 Thermostat BT-D02 RF (or BT-A02 RF or BT-DP02 RF)
For a correct installation, refer to dedicated user guides of each product, then:
WIRING CONNECTION:
• Connect the actuators (eg. 22C – 22CX series) to the connecting box
BT-M6Z02 RF
• Connect the circulating pump to the connecting box BT-M6Z02 RF
• Connect the connecting box BT-M6Z02 RF to the heating relay of the boiler
VIRTUAL – RF CONNECTION:
1 Pair each thermostat to each zone of the BT-M6Z02 RF.
One thermostat can drive several zones
BT-D02 RF
?
UP TO SIX
BT-M6Z02 RF
21
For a correct installation, refer to dedicated user guides of each product, then:
WIRING CONNECTION:
• Connect the actuators (eg. 22C – 22CX series) to the connecting box BT-M6Z02 RF
• Connect the circulating pump to the connecting box BT-M6Z02 RF
• Connect the connecting box BT-M6Z02 RF to the heating relay of the boiler
VIRTUAL – RF CONNECTION:
1 Pair each thermostat to each zone of the BT-M6Z02 RF. One thermostat can drive
several zones
