3 General Presentation
3.1 Description

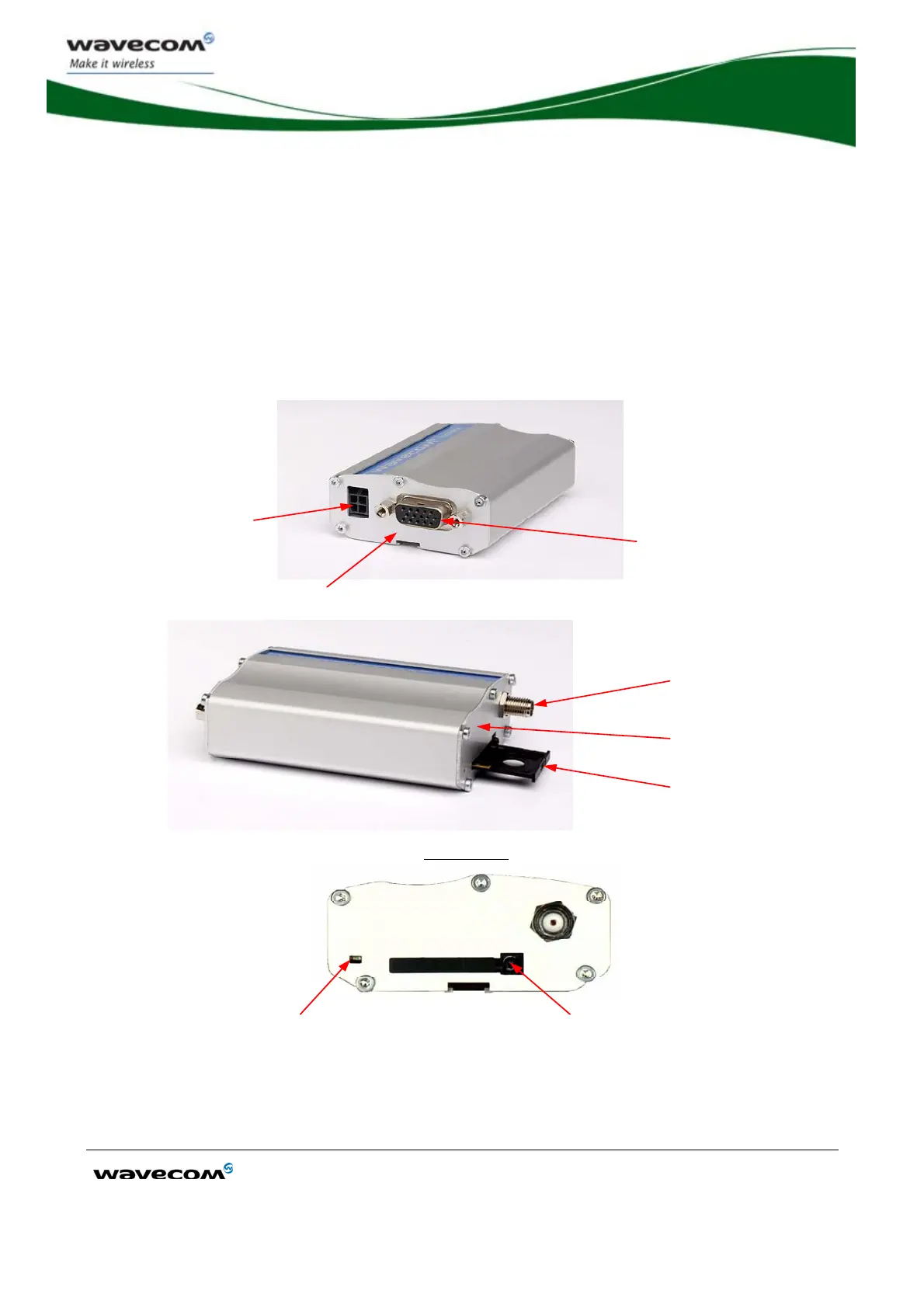

The Fastrack M1306B description is given in the Figure 4 below.
Micro-Fit
connector
Sub HD
connector
SMA
connector
LED
Front cap
Back cap
Extractible
SIM card
holder
BACK CAP
SIM card
holder ejector
Figure 4: Fastrack M1306B general description
