Fastrack M1306B User Guide
Using the M1306B Wireless CPU
®
5 Using the M1306B Wireless CPU
®
5.1 Getting Started
5.1.1 Mount the M1306B

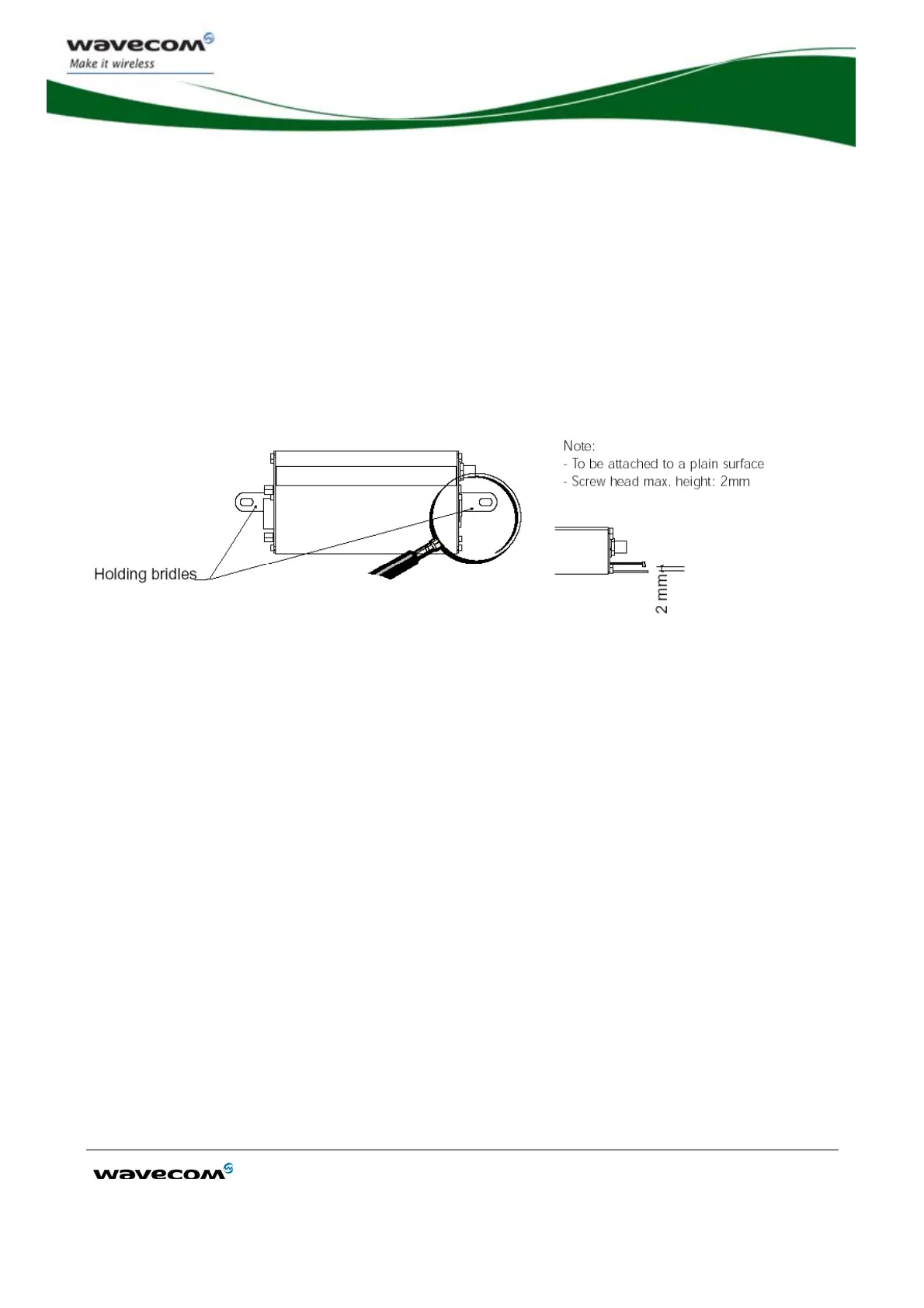

To mount the M1306B on its support, bind it using the holding bridles as shown in
the Figure 10 below.
Figure 10: M1306B mounting
For the drill template, refer to Figure 16.
5.1.2 Set up the M1306B
To set up the M1306B, perform the following operations:
• Press SIM card holder ejector with a sharp object (for example, the tip of a
pen).
• Insert the SIM card in the holder.
• Verify the SIM card fits in the holder properly.
• Insert the holder in the M1306B.
• Connect the antenna to the SMA connector.
• Connect both sides of the serial and control cable (15-pin Sub HD connector on
the M1306B side).
• Connect the power supply cable to the external power supply source.
confidential © Page: 27 / 65
This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged
without prior written agreement.
WM_PRJ_M13_UGD_001 -003 November 11, 2006
