Wavecom TnP-500 User Manual

30
TnP-500 User Manual Wavecom
Loading the media
Loading media into the TT-040-50 Printer is quick and easy. To begin, open the printer top cover by pulling the tabs
located on each side towards the front of the printer, and then lift the top cover to the maximum open angle.

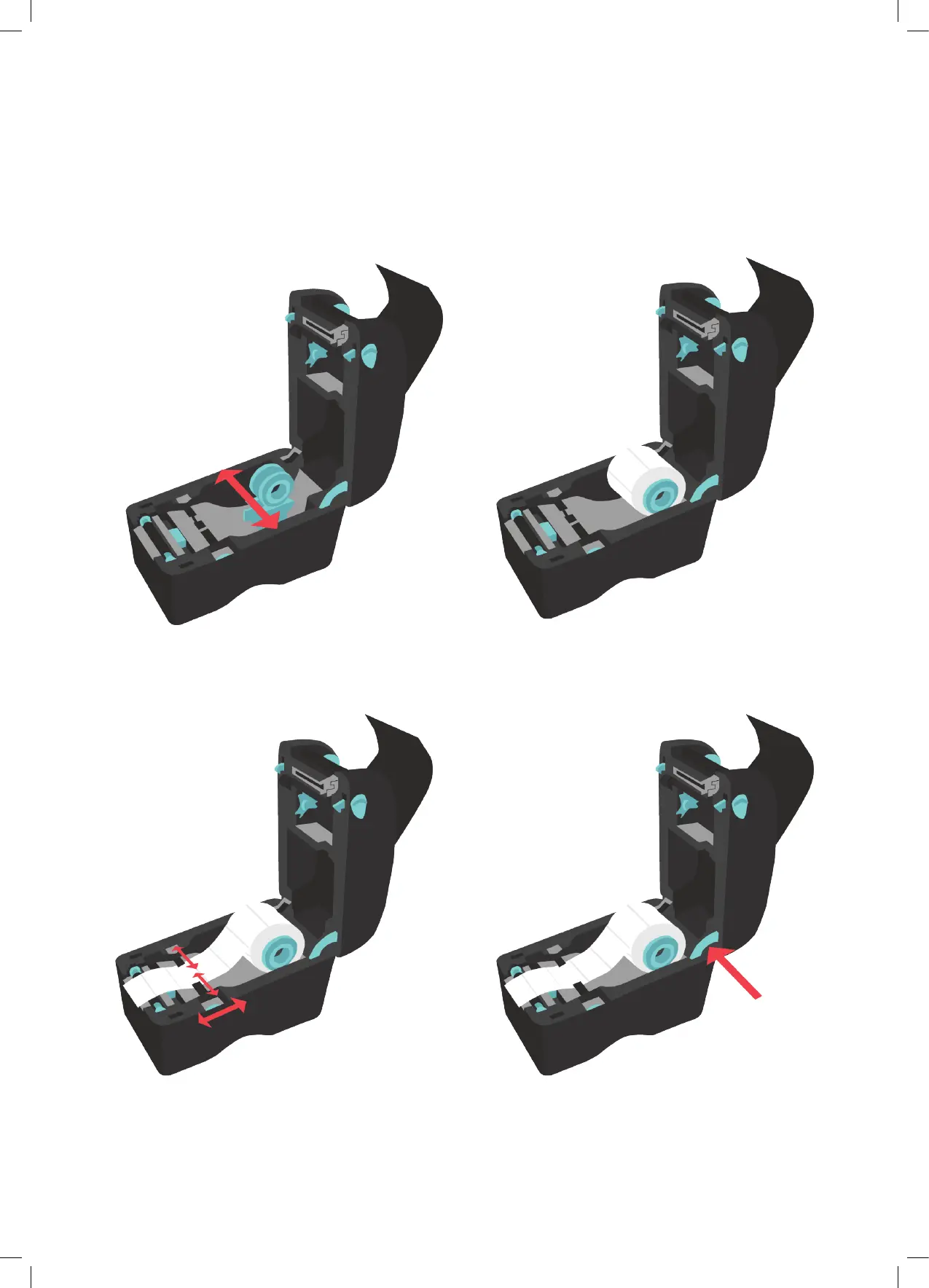

1. Separate the Label Holders by gently pulling
them in opposite directions
2. Insert the media between the label holders as
shown
3. Using the Media Guide Adjuster Knob, adjust the
Media Guide until it is flush but not tight against
the media.
4. To shut the printer, push the support hinge in,
then gently shut the printer, ensuring it latches
shut. Press the Feed button on the printer before
printing, to ensure the tag is printed correctly.
