SAT System WAVECOM Decoder W74PC, W-PCI/e, W-CODE, W-CLOUD Manual V9.1.0
to display a file, double click on the corresponding File field. This enables the correct viewer. It is also
possible to directly view a file through Windows Explorer; however, this does not change the Display Sta-
tus.

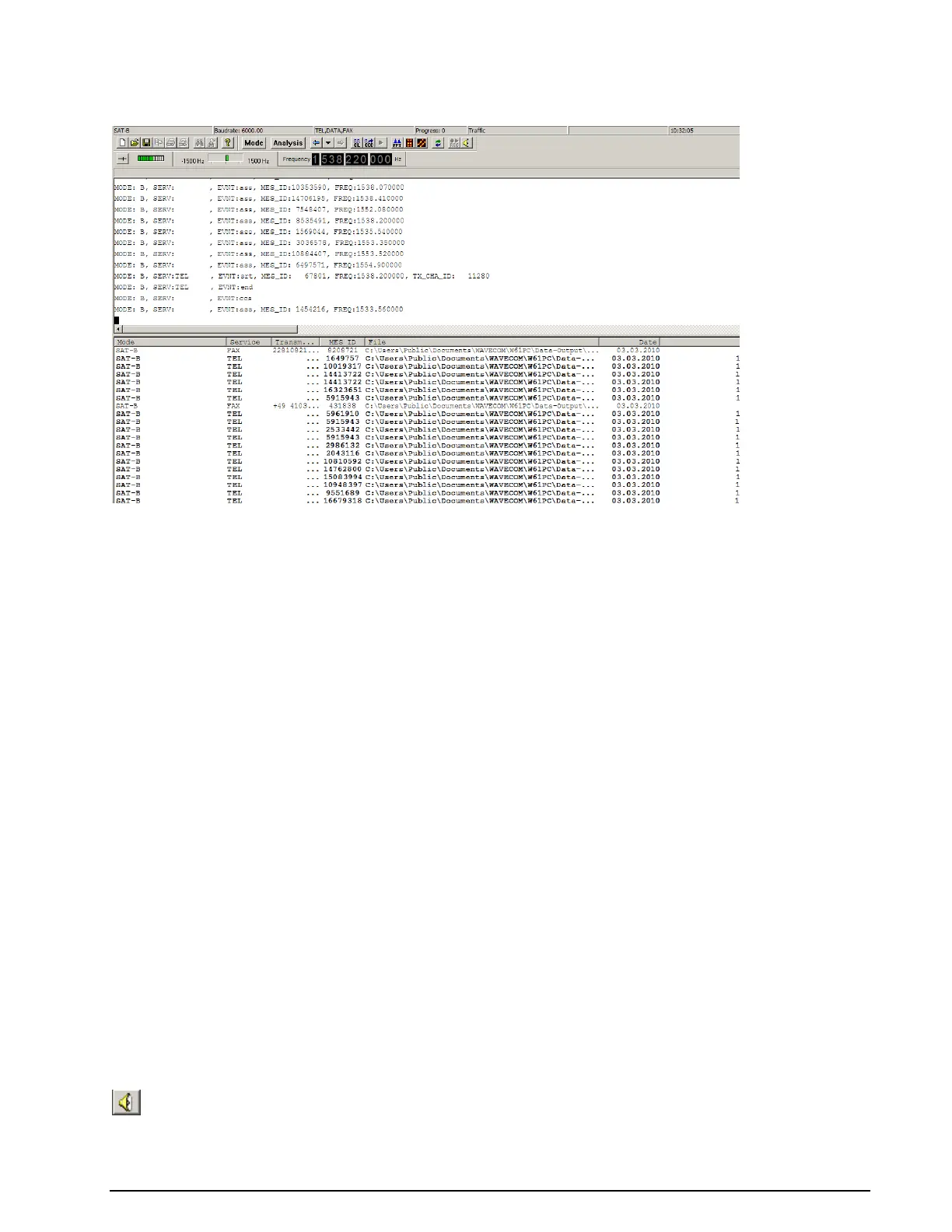

The fields of the Session List Window are listed below:
 Mode: The mode of the recorded session
 Service: The service of the recorded session
 MES ID: The Forward MES ID of the user terminal of the recorded session
 Transmitter ID: Fax ID (usually a name or fax number)
 File: Path and file name of the monitored data. The file name contains the date and time of the
session
 Date, Time: Start date and time of the recorded session
 Duration: Duration of recorded session
 Size: For Fax service - The number of pages of the fax. For Data service - The number of user
bytes transmitted
Termination:
 EOD - End-of-data
 ChannelRelease – Normal channel release
 StopMode - Bit stream interrupted
 SyncLost – Excessive number of resync attempts
 TONoSync – Sync or resync time-out
 TONoScrVect – Bad scrambling vector
 TooManyBadCRCs – Excessive number of failed checksum calculations
 UserCanc – User cancellation
A file in the Session List Window can be deleted by right-clicking on it and following the delete dialog.
For the modes SAT-B, SAT-M and SAT-B-C-TFC it is possible to listen to live voice output during TEL ses-
sions.
With the speaker-button in the tool bar the user can mute the output.
