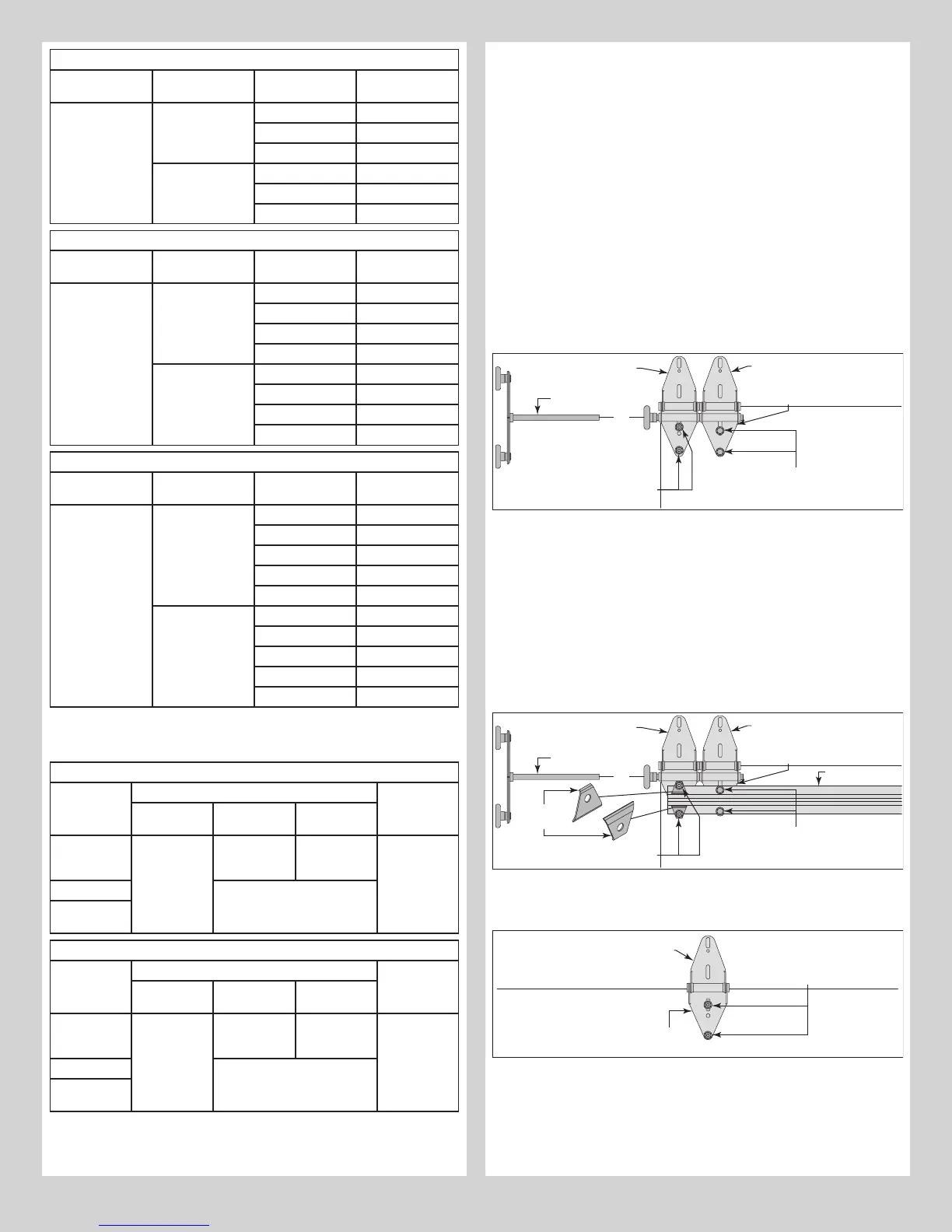

5 Section High Graduated End Hinge Schedule
Door Height Track Section Type Graduated End
Hinge Number
5 Section High Door 2” Intermediate III #4
Intermediate II #3
Intermediate I #2
3” Intermediate III #6
Intermediate II #5
Intermediate I #4
6 Section High Graduated End Hinge Schedule
Door Height Track Section Type Graduated End
Hinge Number
6 Section High Door 2” Intermediate IV #5
Intermediate III #4
Intermediate II #3
Intermediate I #2
3” Intermediate IV #7
Intermediate III #6
Intermediate II #5
Intermediate I #4
7 Section High Graduated End Hinge Schedule
Door Height Track Section Type Graduated End
Hinge Number
7 Section High Door 2” Intermediate V #6
Intermediate IV #5
Intermediate III #4
Intermediate II #3
Intermediate I #2
3” Intermediate V #8
Intermediate IV #7
Intermediate III #6
Intermediate II #5
Intermediate I #4
NOTE: Refer to the Strutting Schedules below, to determine the appropriate strutting for your
Intermediate(s) section. Measure the height of the long strut(s) to determine if you have 2”
or 3”.
Intermediate Section Strutting Schedule For Door Heights Less Than Or Equal to 8’0”
Door Models Door Width Location On
Intermediate
Section
Up To and In-
cluding 12’2”
From 12’3” To
16’0”
From 16’1” To
18’0”
105 / 106 N/A (1) Long Strut per
Intermediate II
Section
N/A Top Of Section
110 / 116 (1) Long Strut per Intermediate II
Section
310 / 311 / 314
/ 316
Intermediate Section Strutting Schedule For Door Heights Greater Than Or Equal to 8’1”
Door Models Door Width Location On
Intermediate
Section
Up To and In-
cluding 12’2”
From 12’3” To
16’0”
From 16’1” To
18’0”
105 / 106 N/A (1) Long Strut
per Intermediate
Section
N/A Top Of Section
110 / 116 (1) Long Strut per Intermediate Section
310 / 311 / 314
/ 316
NOTE: Center hinge(s) use #1 graduated end hinges at each pre-drilled or vertical stile loca-
tion. The pre-drilled locations are located at the top rails on the inside of the section surface.
NOTE: Some struts also may or may not have holes in them. If they don’t, then prior to
installing the strut and hinge to the section surface, you may have to drill a 3/16” hole for the
appropriate fastener on one or both sides of the strut legs.
Using the appropriate graduated end hinges for the ends and depending on the width of
your door, enough center hinge(s) for each pre-drilled hole location(s). Starting at the upper
left hand corner of the Intermediate section. Position the lower hinge leaf of the appropriate
graduated end hinge onto the upper corner of the Intermediate section. Align the slots of the
lower hinge leaf with the pre-drilled holes in the Intermediate section. If applicable, lay a long
strut over the lower hinge leaf and over the top rail of the bottom section. Center the long
strut from side to side.
FOR GRADUATED END HINGES WITHOUT A LONG STRUT: Attach the upper slot of the
graduated end hinge to the Intermediate section using (1) 1/4” - 20 x 1-7/8” carriage bolt
and (1) 1/4” - 20 flange hex nut. Secure the lower hole of the graduated end hinge to the
Intermediate section using (1) 1/4” - 20 x 1-7/8” carriage bolt and (1) 1/4” - 20 flange hex
nut. Repeat for other side.
IF YOU HAVE DOUBLE GRADUATED END HINGES WITHOUT A LONG STRUT: Position the
second graduated end hinge next to the first (single) graduated end hinge. Using the second
graduated end hinge as a template, drill pilot holes, 1” deep into the Intermediate section
using a 1/8” drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Secure the graduated end hinge to the Intermediate section using (2) 1/4” - 14 x 1” lag
screws. Repeat for other side.
(2) 1/4” - 20 x 1-7/8” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
Lower hinge
leaf(s)
Single graduated end hinge
with short stem track roller
Double graduated end hinge
with long stem track roller
(2) 1/4” - 14 x 1”
Lag screws
Intermediate
section
Tandem
roller
Or
FOR GRADUATED END HINGES WITH A LONG STRUT: Attach the upper leg of the strut, (1)
strut clip to the upper slot of the graduated end hinge to the Intermediate section using (1)
1/4” - 20 x 1-7/8” carriage bolt and (1) 1/4” - 20 flange hex nut. Secure the lower leg of the
strut, (1) strut clip to the lower hole of the graduated end hinge to the Intermediate section
using (1) 1/4” - 20 x 1-7/8” carriage bolt and (1) 1/4” - 20 flange hex nut. Repeat for other
side.
IF YOU HAVE DOUBLE GRADUATED END HINGES WITH A LONG STRUT: Position the
second graduated end hinge next to the first (single) graduated end hinge. Using the second
graduated end hinge as a template, drill pilot holes, 1” deep into the Intermediate section
using a 1/8” drill bit.
IMPORTANT: BE EXTREMELY CAREFUL NOT TO DRILL THRU THE SECTION. ONLY DRILL 1”
DEEP.
Secure the graduated end hinge to the Intermediate section using (2) 1/4” - 14 x 1” lag
screws. Repeat for other side.
(2) 1/4” - 20 x 1-7/8” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
Lower hinge
leaf(s)
Single graduated end hinge
with short stem track roller
Double graduated end hinge
with long stem track roller
(2) 1/4” - 14 x 1”
Lag screws
Tandem
roller
Or
Intermediate
section
LONG STRUT
(2) Strut
clips
FOR CENTER HINGES WITHOUT A LONG STRUT: Attach the upper slot of the center hinge
to the Intermediate section using (1) 1/4” - 20 x 1-7/8” carriage bolt and (1) 1/4” - 20 flange
hex nut. Secure the lower hole of the center hinge to the Intermediate section using (1) 1/4” -
20 x 1-7/8” carriage bolt and (1) 1/4” - 20 flange hex nut. Repeat for other center hinge(s).
Center hinge
Lower
hinge leaf
(2) 1/4” - 20 x 1-7/8” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
Intermediate
section
FOR CENTER HINGES WITH A LONG STRUT: Attach the upper leg of the strut, (1) strut clip
to the upper slot of the center hinge to the Intermediate section using (1) 1/4” - 20 x 1-7/8”
carriage bolt and (1) 1/4” - 20 flange hex nut. Secure the lower leg of the strut, (1) strut clip
to the lower hole of the center hinge to the Intermediate section using (1) 1/4” - 20 x 1-7/8”
carriage bolt and (1) 1/4” - 20 flange hex nut. Repeat for other center hinge(s).
9
