23

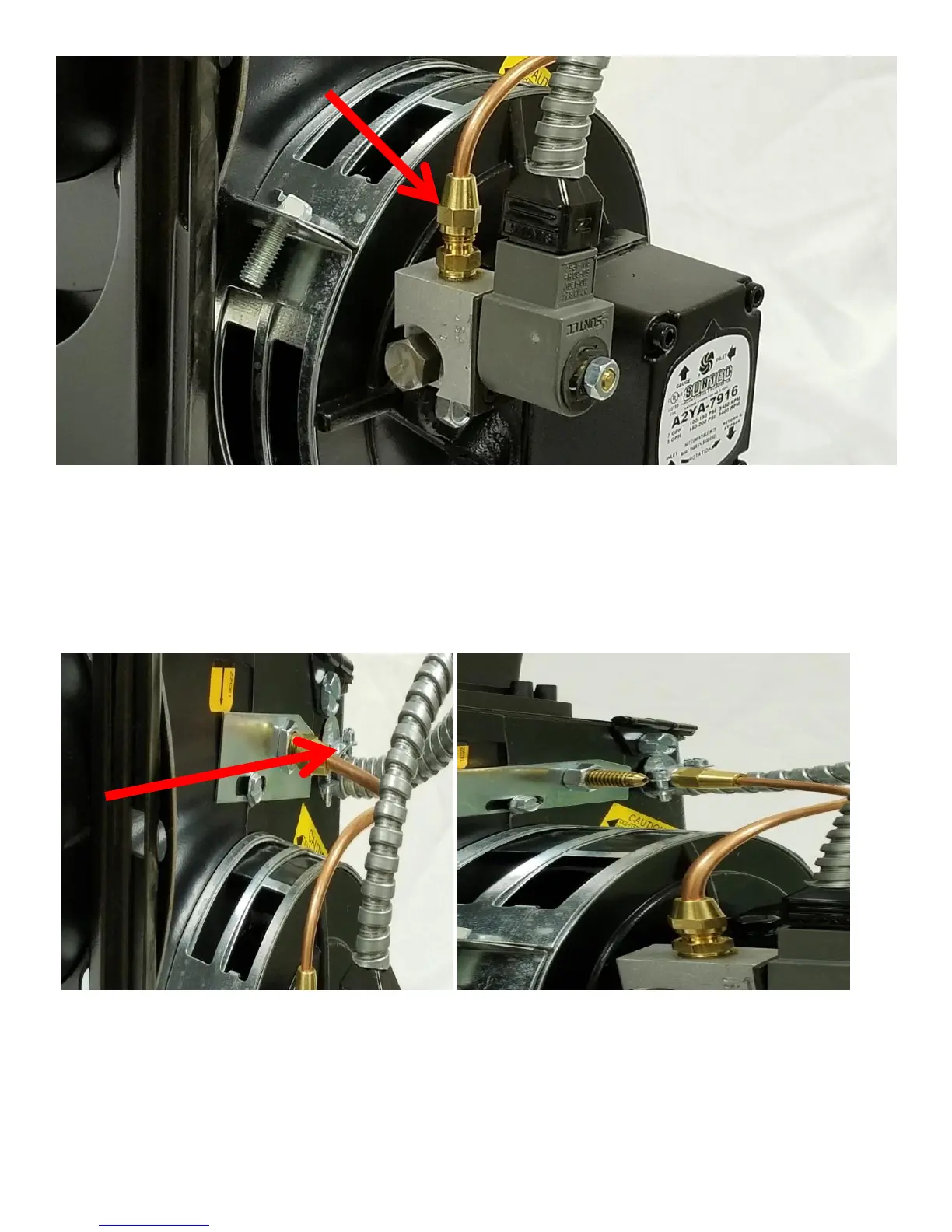

Figure 7 EH/EHASR Oil Line Assembly Fitting
2. Loosen and disconnect the brass nut of the copper oil line assembly from the oil gun assembly fitting and rotate the oil
line out of the way (Figure 8).
Figure 8 EH/EHASR Oil Line Removal
