24

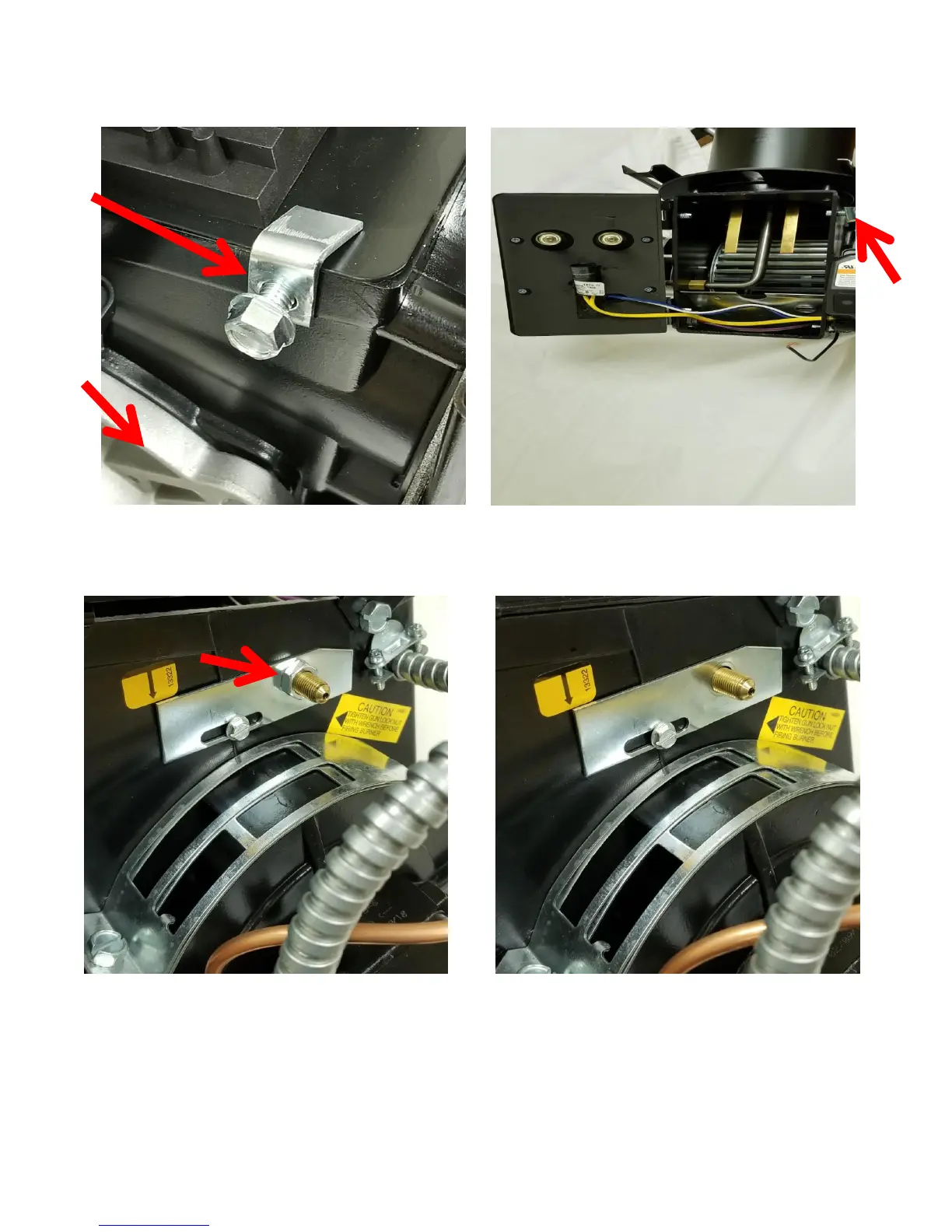

3. Next loosen the ignition device mounting plate clip screw by using a flat head screwdriver, move the hold down clip off
of the mounting plate, this will allow the igniter device assembly to swing open to the left. For now leave the plate in
the closed position (Figure 9).
Figure 9 EH/EHASR Ignitor mounting plate screw removal
4. Using a 9/16 inch wrench loosen and remove the oil gun assembly locknut (Figure 10).
Figure 10 EH/EHASR Oil Gun Lock Nut Removal
