Wayne P250 - Exploded Views

64659-001 REV. A 07/06/18
28
Exploded Views

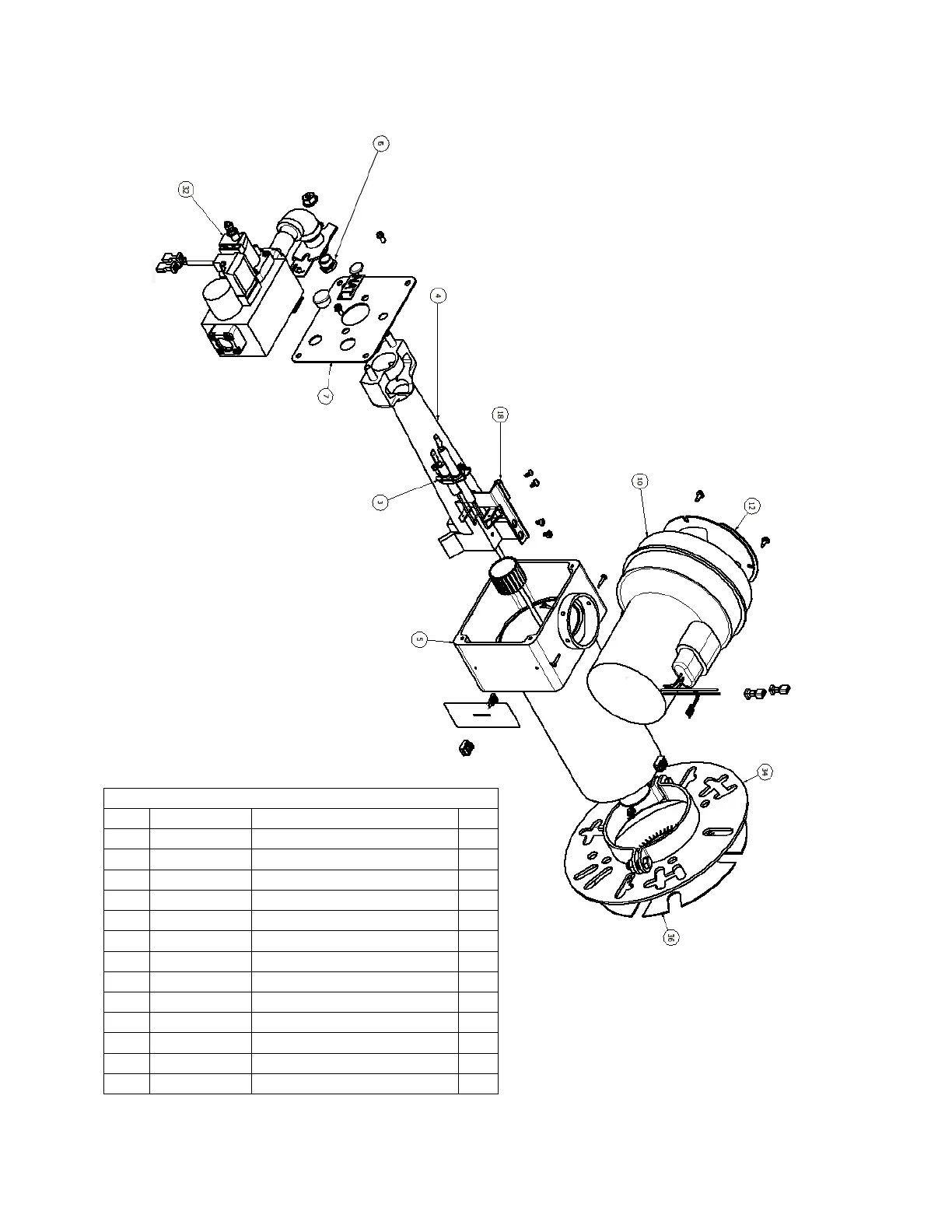

Figure 14 - Exploded View of P250 Burner
PARTS LIST (*STARRED PARTS NOT PICTURED)
ITEM
PART NUMBER
DESCRIPTION
QTY
3
62261
ELECTRODE, ASM-DI P250AF
1
4
61817
VENTURI ASM.-W/STUDS MACH
1
5
62715-003
TUBE/HOUS-9"
1
6
62371-033
ORIFICE
1
7
62049-002
PLATE, BACK HOUSING P250/265
1
10
64503-001
MOTOR/BLOWER
1
12
63566-001
SHUTTER, AIR ASM-(PIE STYLE)
1
18
62556-002
BRACKET, ELECTRODE MOUNT-DI
1
*19
63916-001
WIRE, IGNITOR LEAD-5MM 27”L
1
*20
62411-080
WIRE, SENSOR-24" BLUE
1
32
64050-006
GAS TRAIN, GAS/AIR MOD
1
34
21756-011
FLANGE ASM., ADJ-BLACK
1
36
100428-002
GASKET, FLANGE STD 4" ID
1
