Wayne P250 - Electrode Position - Factory Setting

64659-001 REV. A 07/06/18
25
Electrode Position – Factory Setting
1/4” ± 1/16”
6.4 ± 1.6 mm
1/8” (3.2 mm)
gap

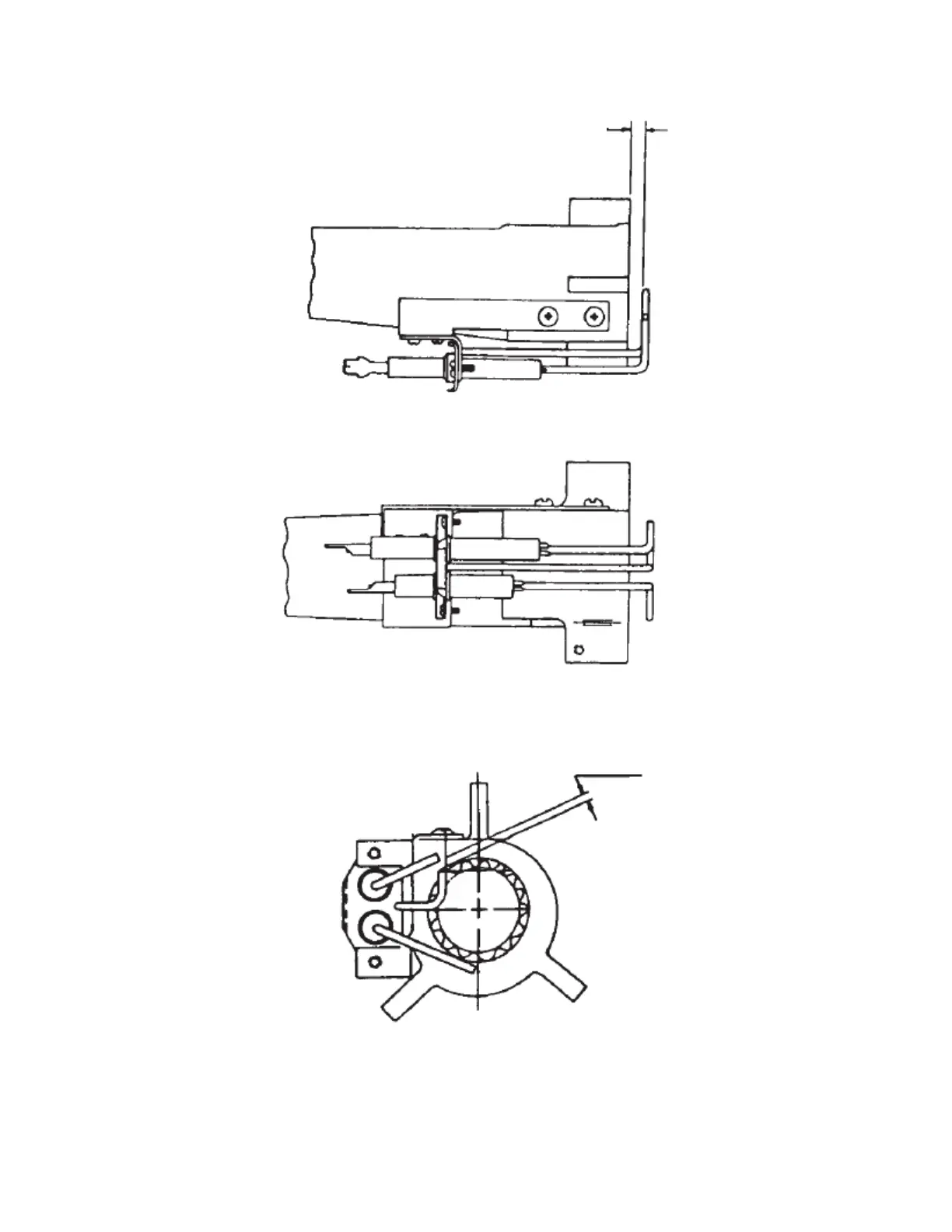

Figure 11 – P250 Electrode Positions, Factory Setting
