BURNER INSTALLATION
Mounting the Burner
The burner ships with a mounting flange which grips the burner tube and has holes to bolt to the
appliance. Dimensions for the flange are shown below. Burners with iHEAT are also available with all
burner parts contained in an enclosure. Such burners have additional mounting holes on the enclosure
body or may be mounted on an optional pedestal.

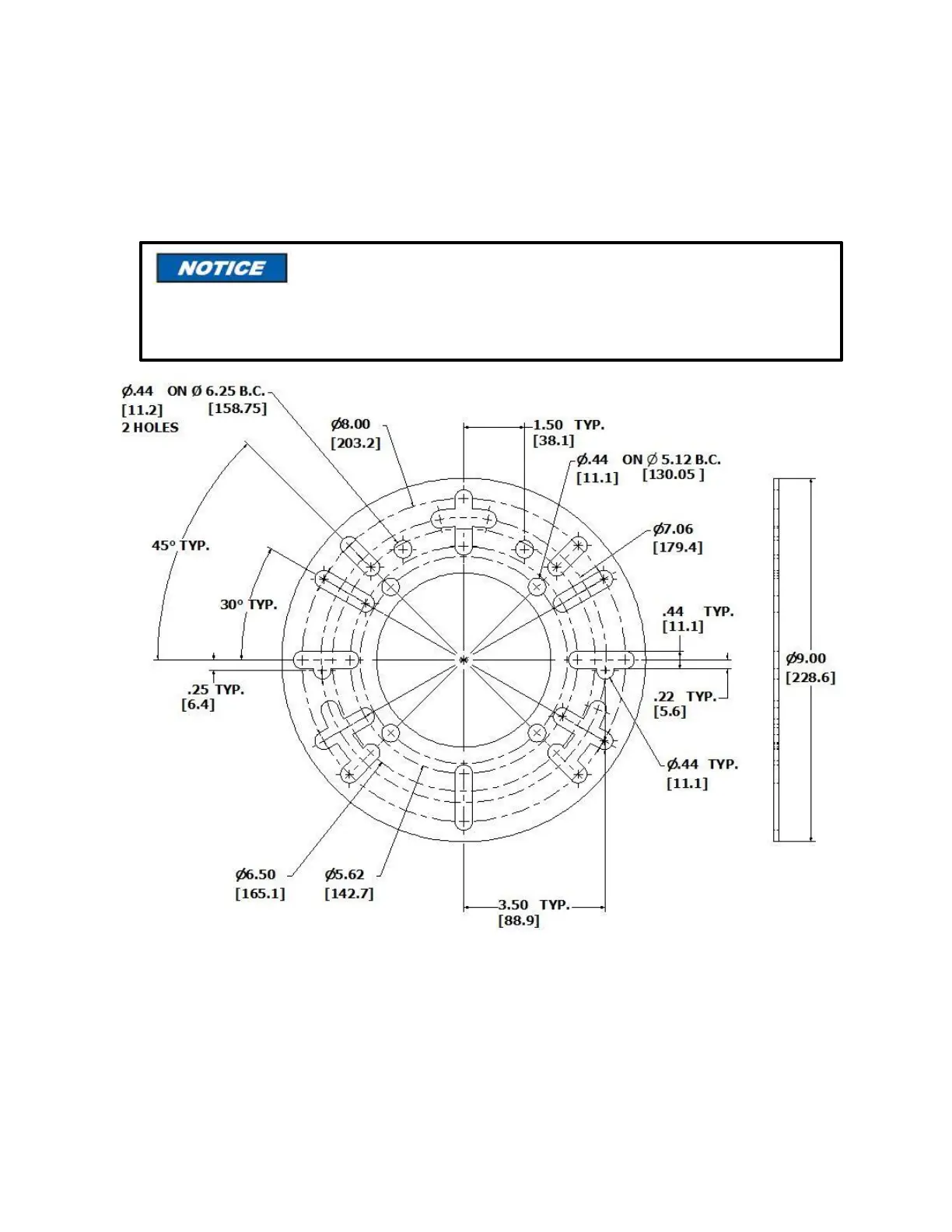

Figure 1 - Mounting Flange Dimensions
Flange may not support the full weight of burners that have an attached enclosure. Use the
mounting holes provided in the enclosure or the optional pedestal accessory for additional
support to prevent equipment damage.
