Weathermatic SmartLine Controller User Manual

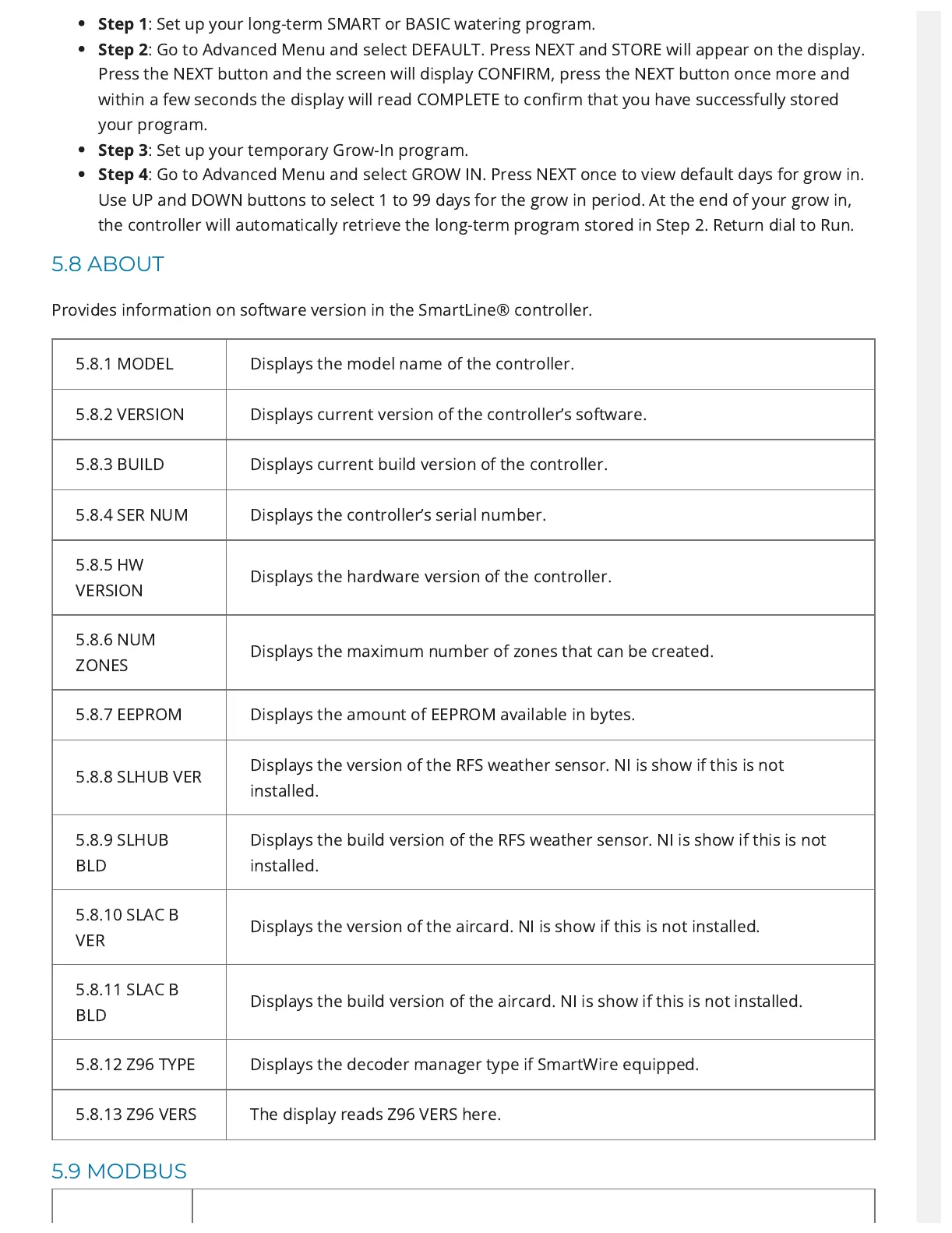

Step 1 : Set up your long-term SMART or BASIC watering program.
Step 2 : Go to Advanced Menu and select DEFAULT. Press NEXT and STORE will appear on the display.
Press the NEXT button and the screen will display CONFIRM, press the NEXT button once more and
within a few seconds the display will read COMPLETE to conrm that you have successfully stored
your program.
Step 3 : Set up your temporary Grow-In program.
Step 4 : Go to Advanced Menu and select GROW IN. Press NEXT once to view default days for grow in.
Use UP and DOWN buttons to select 1 to 99 days for the grow in period. At the end of your grow in,
the controller will automatically retrieve the long-term program stored in Step 2. Return dial to Run.
5.8 ABOUT
Provides information on software version in the SmartLine® controller.
5.8.1 MODEL Displays the model name of the controller.
5.8.2 VERSION Displays current version of the controller’s software.
5.8.3 BUILD Displays current build version of the controller.
5.8.4 SER NUM Displays the controller’s serial number.
5.8.5 HW
VERSION
Displays the hardware version of the controller.
5.8.6 NUM
ZONES
Displays the maximum number of zones that can be created.
5.8.7 EEPROM Displays the amount of EEPROM available in bytes.
5.8.8 SLHUB VER
Displays the version of the RFS weather sensor. NI is show if this is not
installed.
5.8.9 SLHUB
BLD
Displays the build version of the RFS weather sensor. NI is show if this is not
installed.
5.8.10 SLAC B
VER
Displays the version of the aircard. NI is show if this is not installed.
5.8.11 SLAC B
BLD
Displays the build version of the aircard. NI is show if this is not installed.
5.8.12 Z96 TYPE Displays the decoder manager type if SmartWire equipped.
5.8.13 Z96 VERS The display reads Z96 VERS here.
5.9 MODBUS
