Frigo Top 10 - 43 | Pordoi 2000 - 4000 11
10 Annex

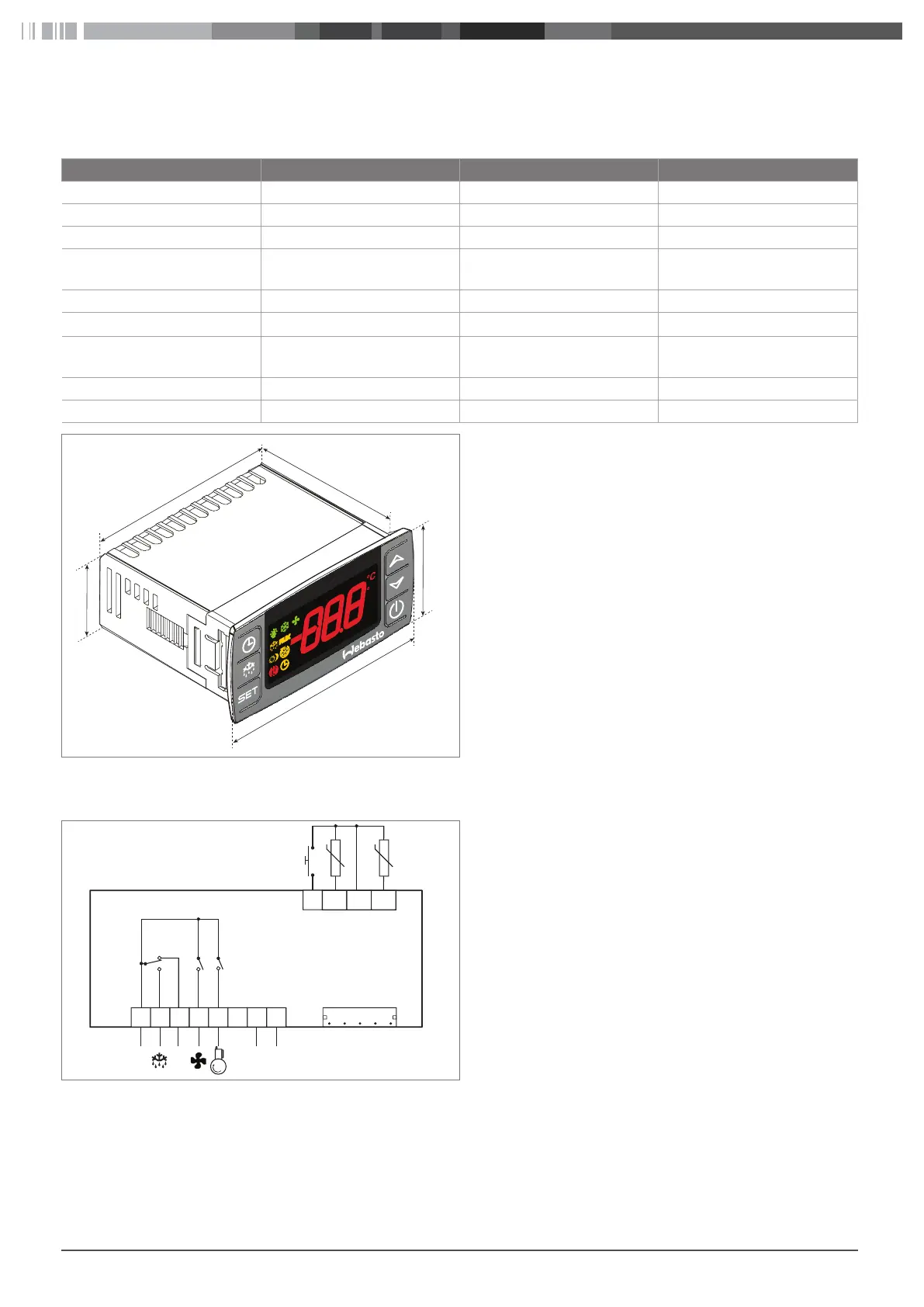

10.1 Technical data
Description Data Description Data
Power supply 12/24VDC Operating temperature 0 – 60°C (32 – 140°F)
Power consumption 3VA Storage temperature -30-85 °C (-22 – 185°F)
Protection IP20 Relative humidity 20 – 80%, non-condensing
Frontal protection IP65 Measuring and regulating
range:
Digital input Potential free contact NTC probe -40 – 110°C (-40 – 230°F)
Relay outputs: PTC probe -50 – 150°C (-58 – 302°F)
Compressor 8(3)A, 16(6)A, or 20(8)A,
250VAC
Defrost 8(3)A, 250VAC
Fan 8(3), 250VAC
Fig. 23:
F
32
74
71
29
60
Control element dimensions
10.2 (Typical) 12/24VDC wiring and connections
Max.
16 A
1 2 3 4 5 7 8
9
10 11 12
13
Fig. 24: Wiring connections
Legenda:
1. Line
2. Defrost
3. Not connected
4. Fan
5. Compressor
6. -
7. Supply 12/24V
8. Supply 12/24V
9. Digital input
10. Evaporator temperature sensor
11. Common
12. Room temperature sensor
13. Hot key plug
