W
EBASTO
S
CHOLASTIC
S
ERIES
5INSTALLATION
5-13

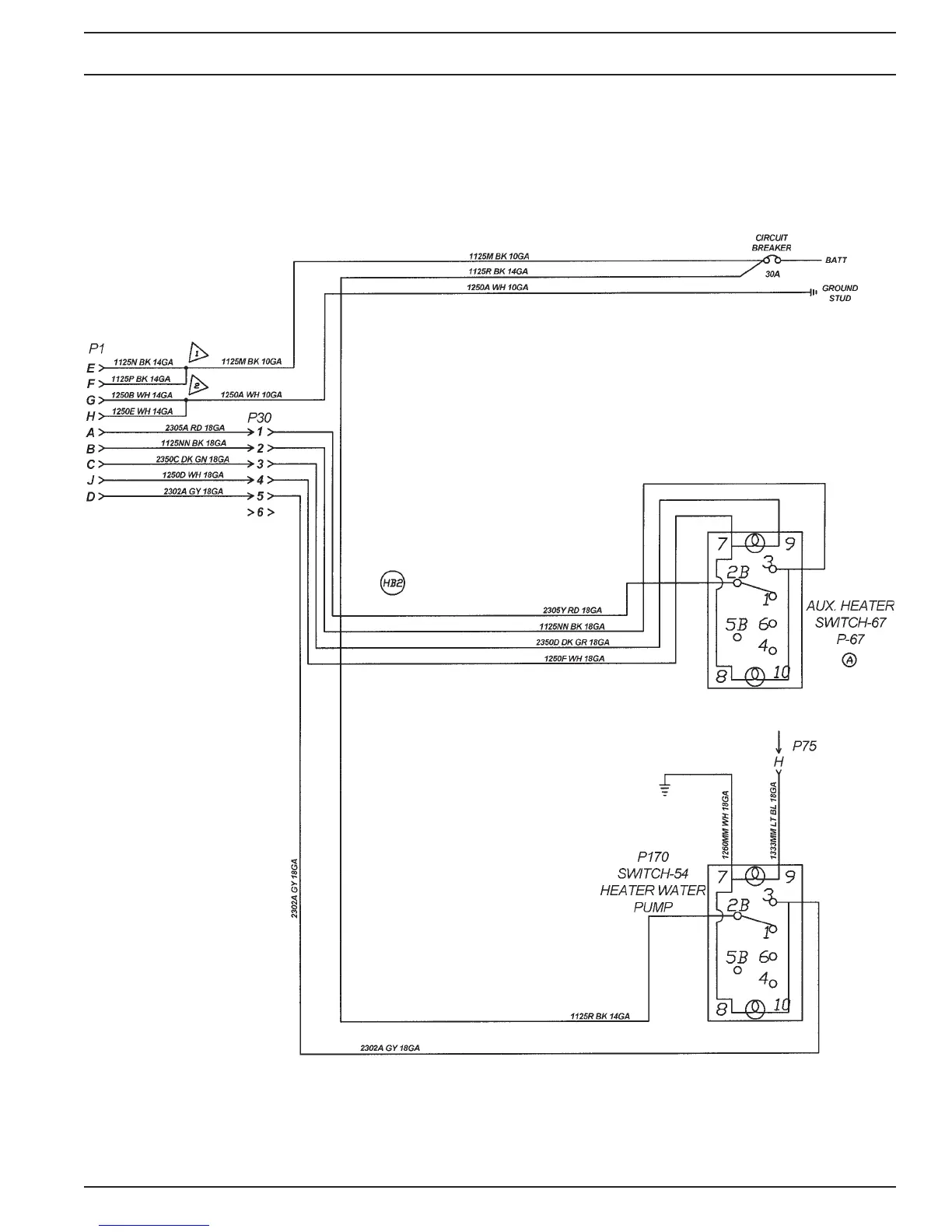

5.8.6 Wiring Diagram – Chassis / Power Harness with Switch
Fig. 5-13: Wiring Diagram - Chassis / Power Harness with Switch
0030777A
Option 1345-03
