5INSTALLATION
W
EBASTO
S
CHOLASTIC
S
ERIES
5-16
5.8.9 Wiring Diagram – Chassis / Power Harness with Digital Timer Model 1531

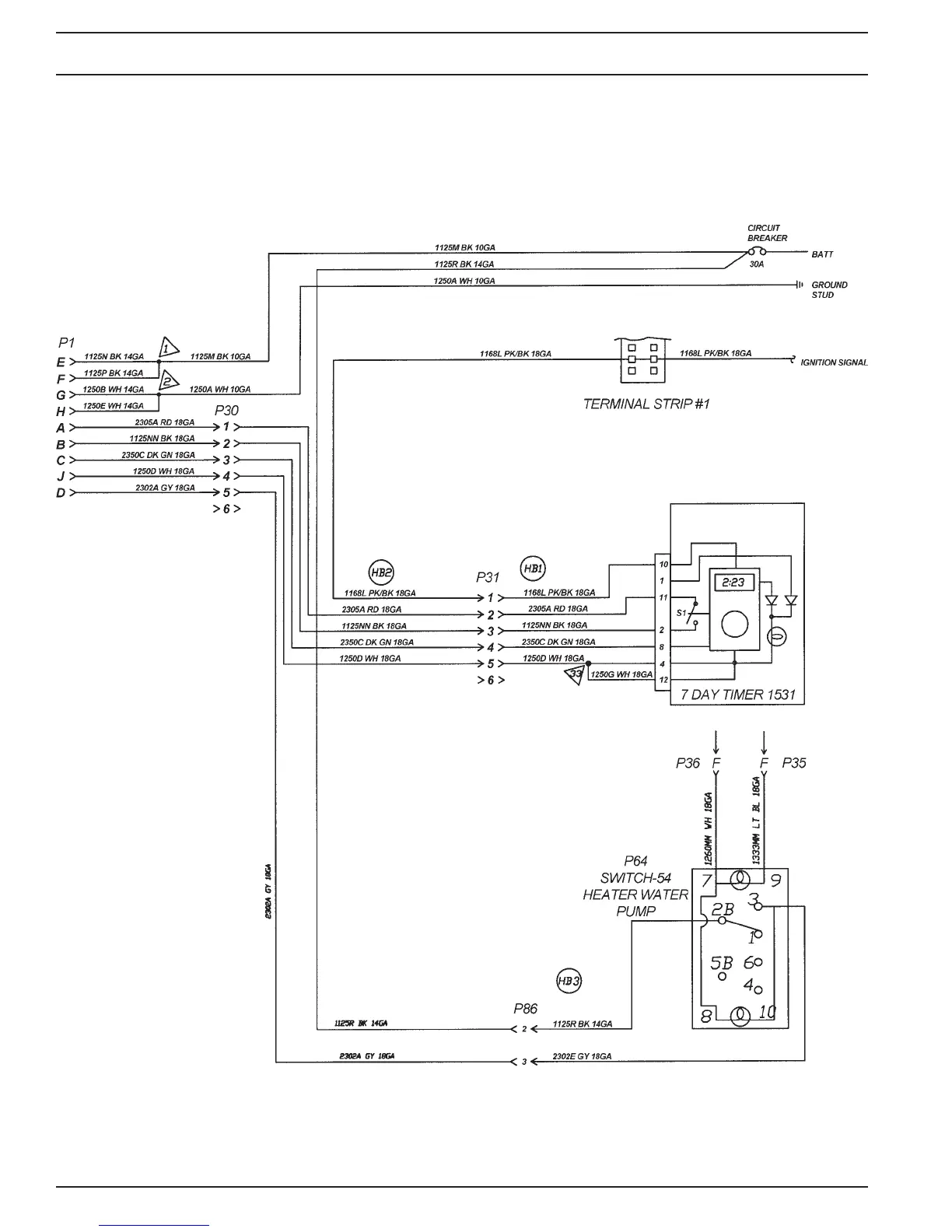

Fig. 5-16: Wiring Diagram - Chassis / Power Harness with Digital Timer Model 1531
0030512
Option 1345-04
