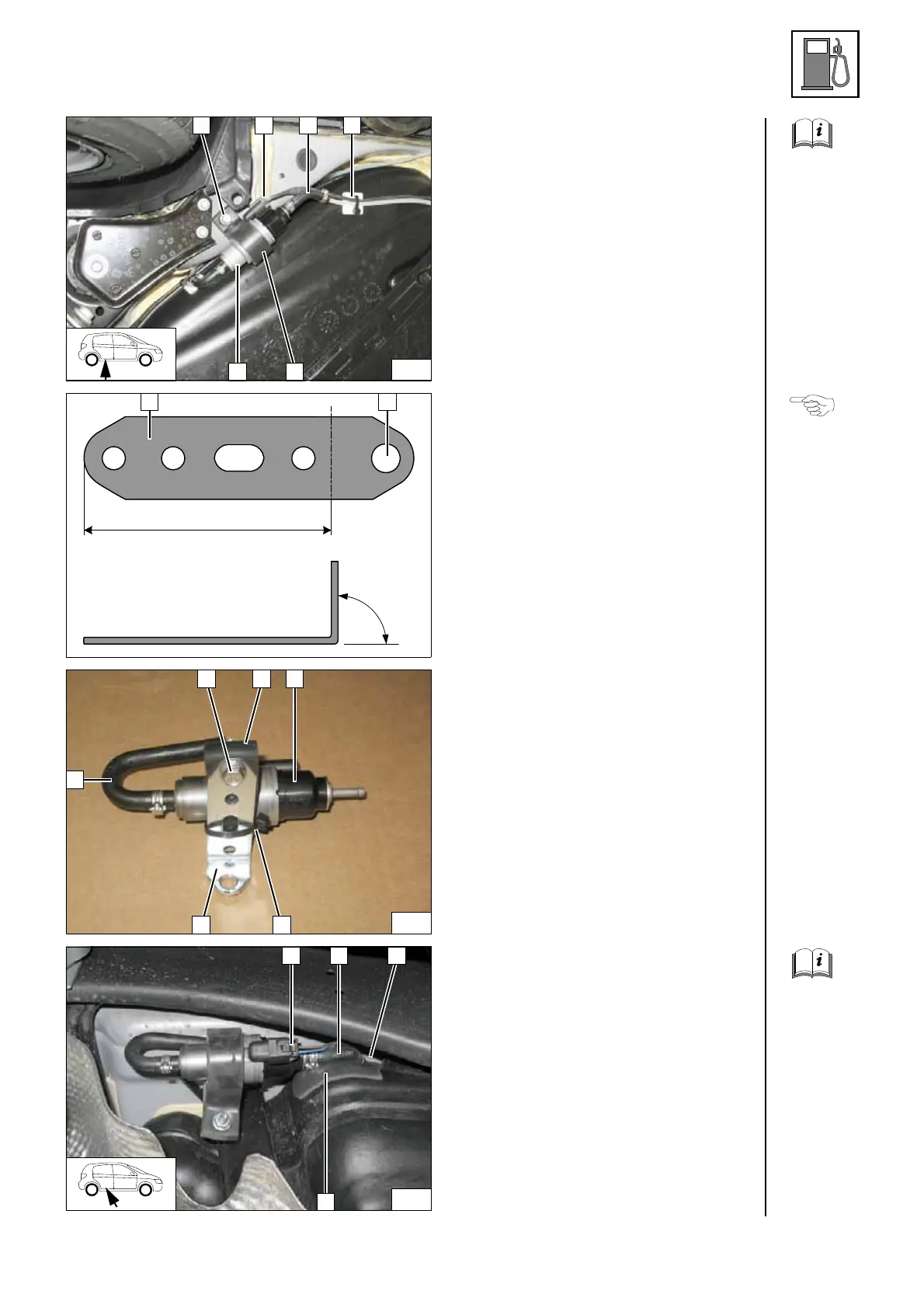

Webasto Thermo Top Evo 5+ - 80 L Fuel Tank Metering Pump; Preparing perforated bracket; Premounting metering pump; Mounting metering pump

Mercedes Benz C-Class S204, W204, C204 / GLK-Class X204
Ident. No.: 1315959G_EN Status: 31.01.2013 © Webasto Thermo & Comfort SE
22
Degrease adhesive surface for adhesive
base
4.
1 M6x25 bolt
2 Wiring harness of metering pump, con-
nector mounted
3 90° moulded hose, 10 mm dia. clamp
[2x], fuel line
4 Adhesive base, cable tie
5 Mounting of metering pump
6 Metering pump
Mounting
metering
pump
80L Fuel Tank Metering Pump
Angle down perforated bracket 1 and drill
hole at position 2 to 8.5mm dia.
Preparing
perforated
bracket
1
M6x25 bolt, flanged nut
2 Mounting of metering pump
3 Metering pump
4 Cable tie
5 Perforated bracket
6 180° moulded hose, 10 mm dia. clamp
Premount-
ing meter-
ing pump
Mount perforated bracket on original vehicle
bolt of fuel tank fastening. Paste insulation
strip
4.
1 Wiring harness of metering pump, con-
nector mounted
2 90° Moulded hose, 10 mm dia. clamp
[2x]
3 Fuel line
Mounting
metering
pump
51
2
56
431
90°
75
1 2
1
52
6
32
5 4
53
1
4
2 3
