Webasto Thermo Top Evo 5+ - Preparing Electrical System

Mercedes Benz C-Class S204, W204, C204 / GLK-Class X204
Ident. No.: 1315959G_EN Status: 31.01.2013 © Webasto Thermo & Comfort SE
7

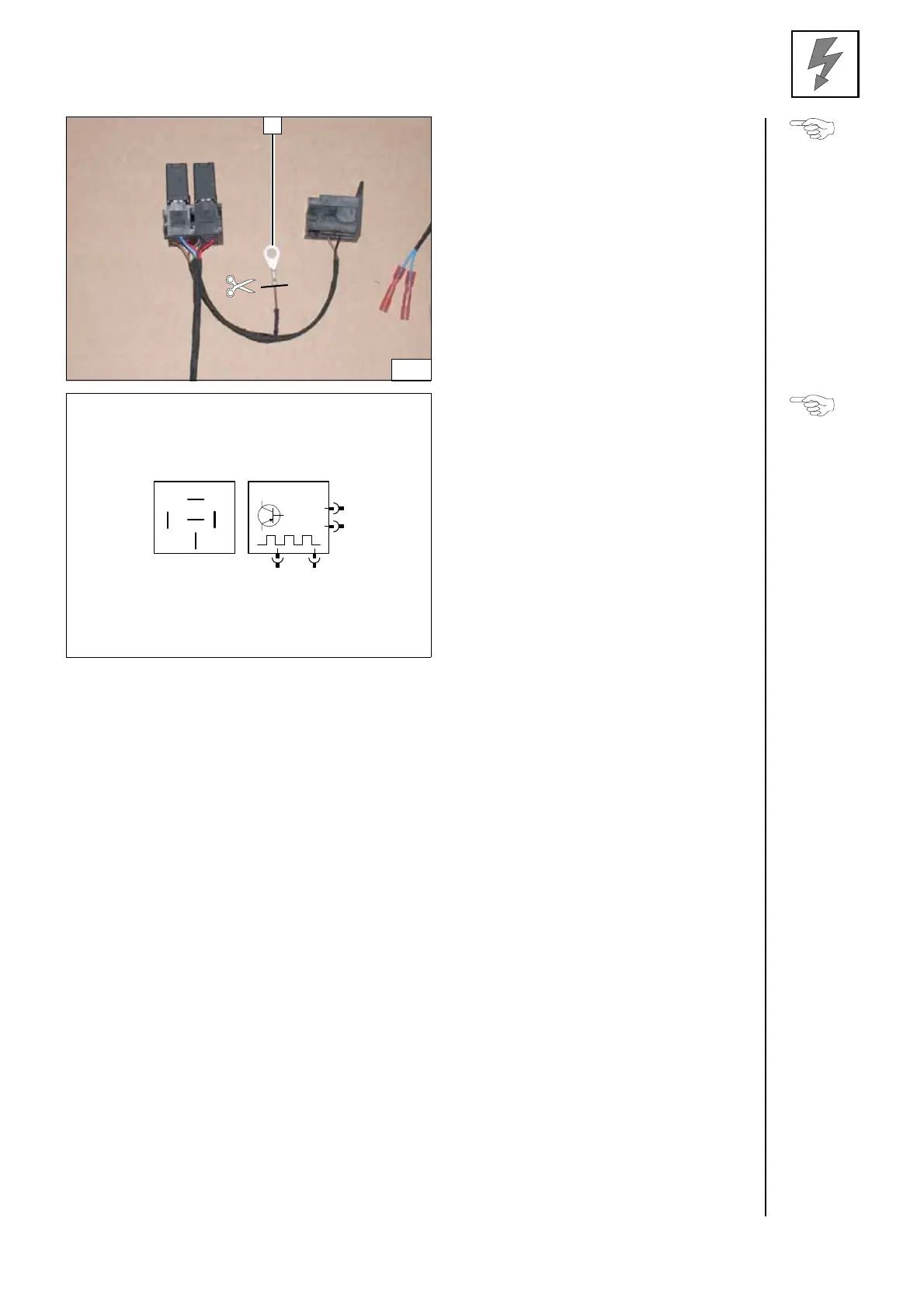

Preparing Electrical System
Detach 6mm dia. cable lug 1.
Preparing
wiring har-
ness of fan
control
IPCU view on contact side.
The pre-programmed settings are to be
checked during function control and adjusted
if necessary.
Duty cycle: 56-62%
Frequency: 400Hz
Voltage: 3.0V
Function: High-side
IPCU view
2
1
86 85
E
A
IPCU
A
15
86
85
E
