Webasto Thermo Top Evo 5+ - Page 32

Mercedes Benz C-Class S204, W204, C204 / GLK-Class X204
Ident. No.: 1315959G_EN Status: 31.01.2013 © Webasto Thermo & Comfort SE
32

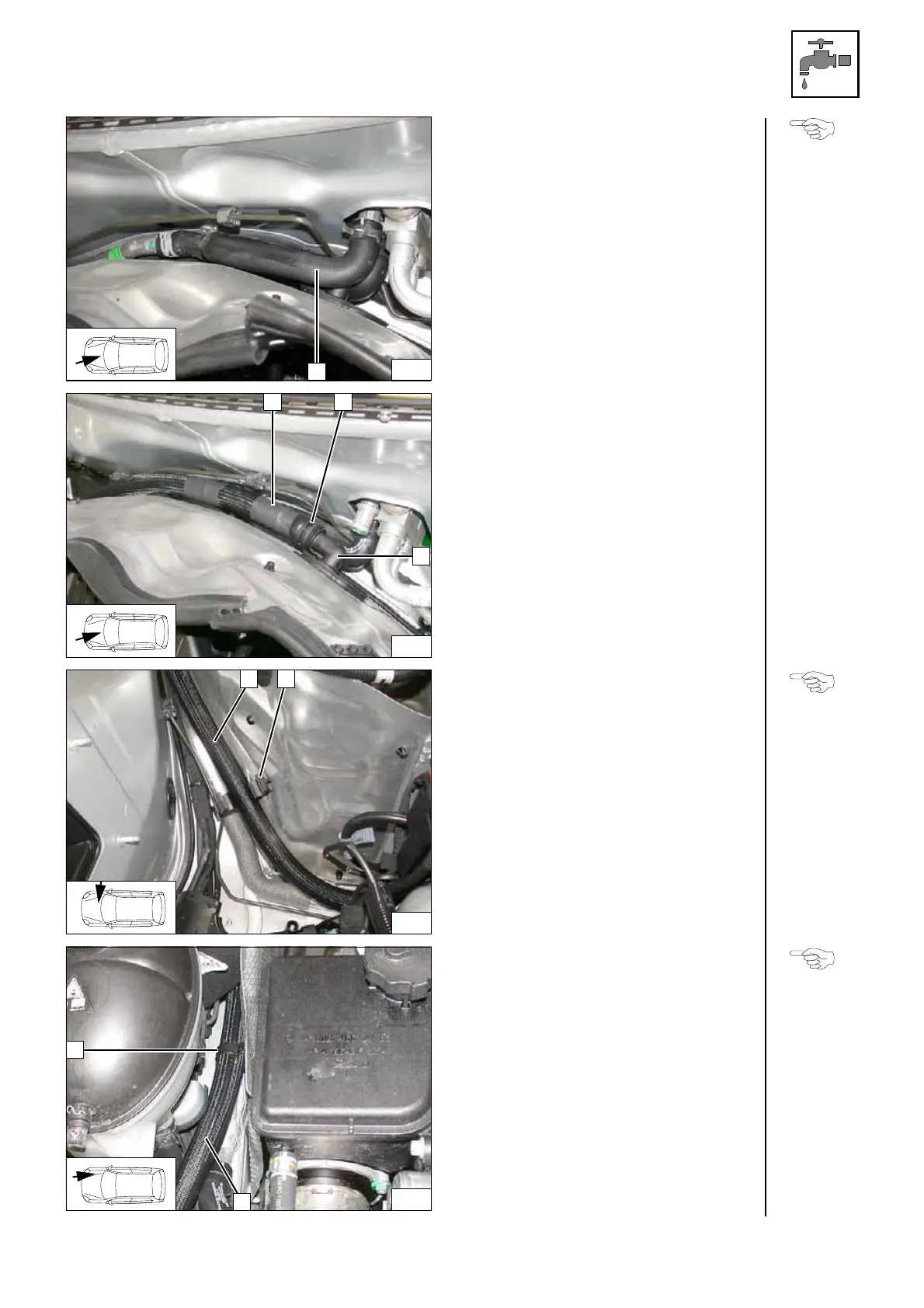

Remove original vehicle hose 1 and discard.
Original vehicle spring clips will be reused.
Cutting
point
1
Original vehicle spring clip
2 Connection piece on engine outlet
Connect-
ing engine
outlet
Route hose A into hose bracket 1 and route
forward through pass through.
Routing in
engine
compart-
ment
Insert hose bracket 1 between hose A and
the coolant pipe of the heat exchanger outlet
lying under it.
Routing in
engine
compart-
ment
82
1
83
A
2
1
84
A 1
85
A
1
