Webasto Thermo Top Evo 5+ - Page 36

Mercedes Benz C-Class S204, W204, C204 / GLK-Class X204
Ident. No.: 1315959G_EN Status: 31.01.2013 © Webasto Thermo & Comfort SE
36

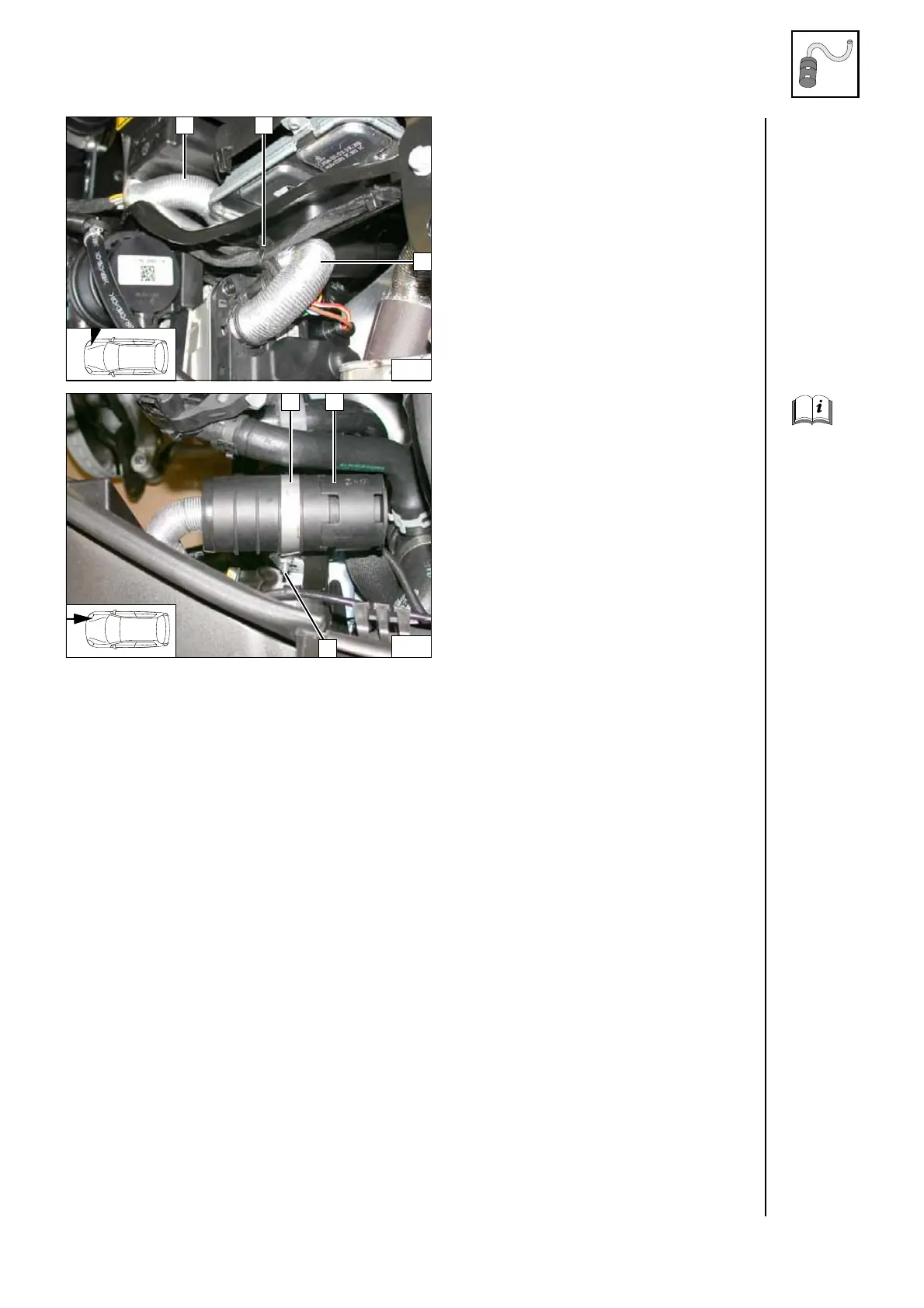

1 Combustion air pipe
2 Cable tie
Routing
combus-
tion air pipe
1
51 mm dia. p-clamp
2 Silencer
3 M5x20 bolt, flanged nut
Mounting
silencer
94
1
1
2
95
1 2
3
