8 | Unite Configuration Interface
24 / 37 5111967A OI-II Webasto Unite
l "Garo" means the cluster is limited to the maximum cur-
rent, but it also takes into account real time data from the
externally connected Garo meter (requires optional ac-
cessories) taking into account also other consumers in the
installation (schematic see 6.7.4).

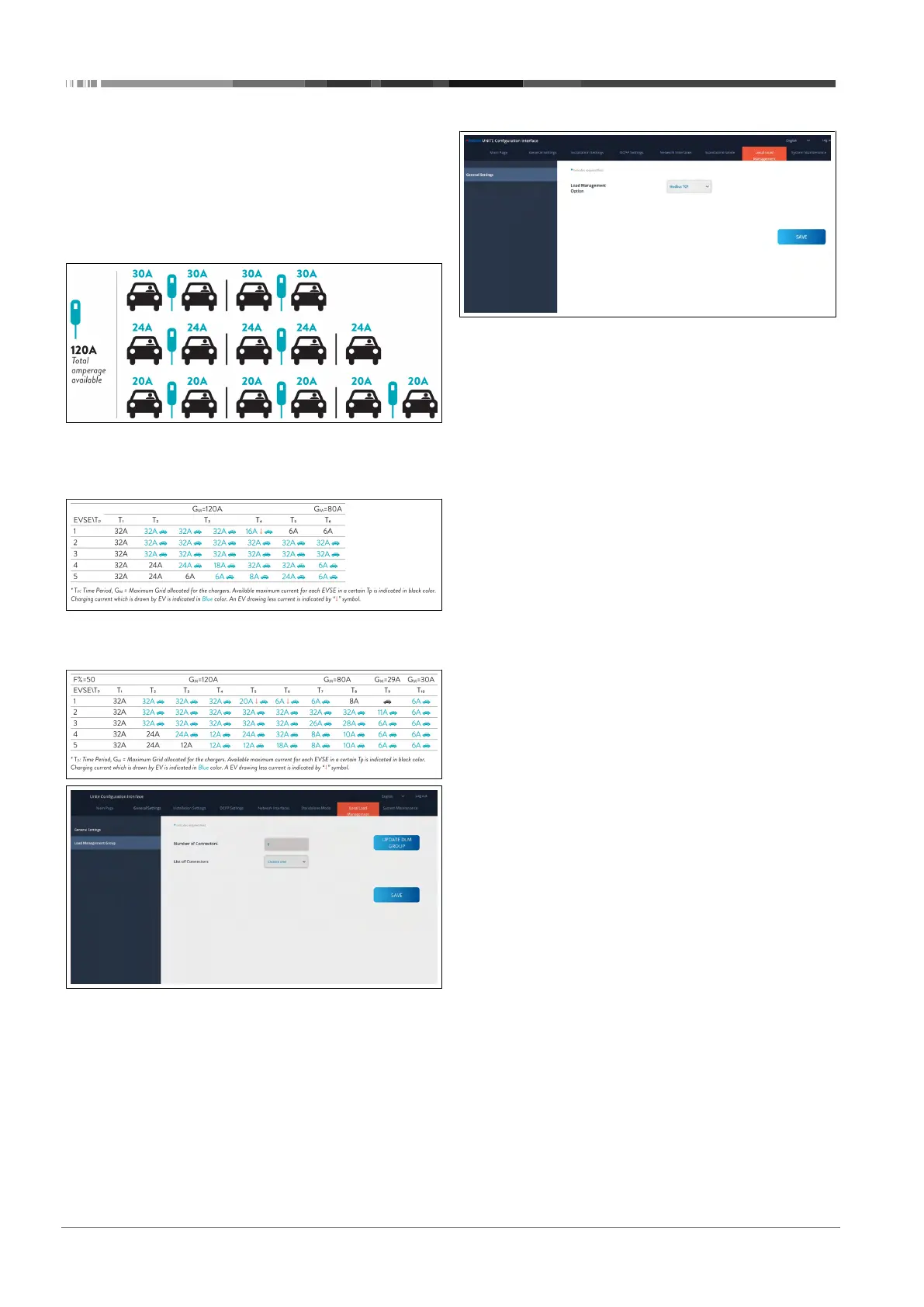

l "Load Management Mode" defines the algorithm used to
distribute the available current within the cluster:
– "Equally shared" means the available current is distrib-
uted equally within the cluster
– "FIFO" means first in first out, which means vehicles con-
nected first will receive the maximum available power
and later connected vehicles get lower current, depend-
ing on the availability.
– "Combined" means the vehicles connected first are get-
ting higher current and later connected vehicles are get-
ting the leftover power equally distributed.
In this section you can update the DLM group via the button
and then choose all charging stations that are registered within
the cluster.
Various types of data can be shown in this tab.
"Phase connection sequence" defines the order of phases in
case a phase rotation is implemented within the cluster.
8.7.2 Modbus TCP (EMS)
"Modbus TCP" enables the EMS mode. In this mode the char-
ging station can be integrated into a compatible Energy Man-
agement System (Check the online documentation for compat-
ible energy management systems). All EMS specific configura-
tions are done via the energy management system and are com-
municated to the charging station via Modbus TCP.
