Webasto Unite User Manual

Setting up charging | 9
5111967A OI-II Webasto Unite 27 / 37

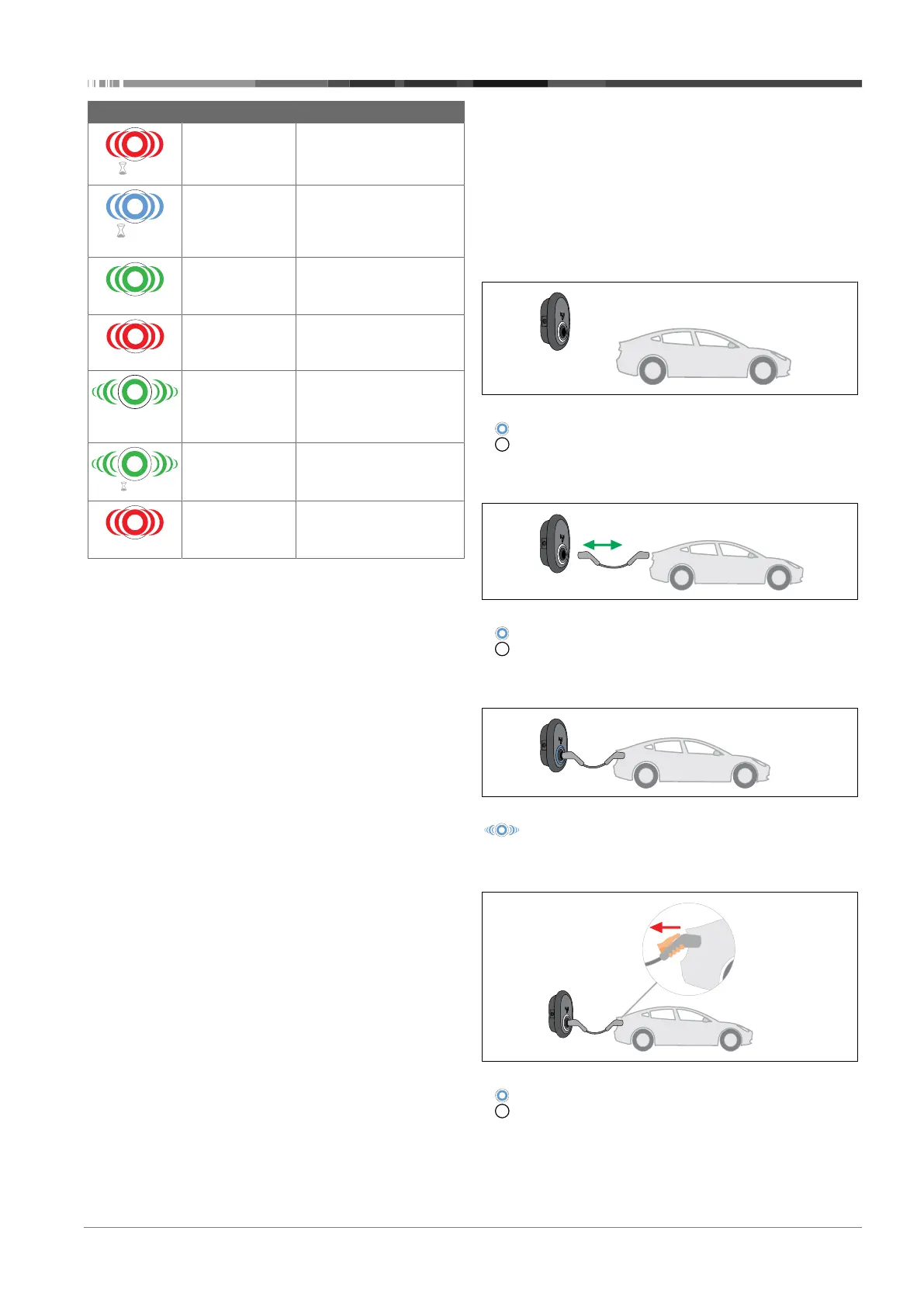

LED Description
1 sec
Blinks red every
second for 60
seconds.
Master card config mode /
Local card list reset.
2 sec
Blinks blue every 2
seconds
Waiting to tap a User RFID
card or authentication/start
with Webasto ChargeCon-
nect.
2 x
Blinks green 2
times
User RFID Card added to
local RFID list.
2 x
Blinks red 2 times User RFID card removed
from local RFID.
Green glowing Authorized
RFID Card is tapped while
the charging cable is con-
nected.
30 sec
Glows green for
30 seconds
An authorized RFID Card is
tapped while the charging
cable is not connected.
3 x
Blinks red 3 times Start / stop charging at-
tempt with unauthorized
RFID card.
9.3 Standalone / Offline Usage modes
First usage of “Standalone Usage” mode charger: Your charging
station’s master RFID card is already registered to your unit and
you can find your master RFID card in its accessories.
1. Connect the charging cable to start charging.
2. Tap your master card to add a card.
9.3.1 Autostart (Freecharging) mode
9.3.1.1 Connecting & charging
Fig.52
Constant blue (or no LED Indication in power save
mode)
Make sure that your vehicle and the charging station are ready
for charging.
Fig.53
Constant blue (or no LED Indication in power save
mode)
Insert the charging plug into the vehicle inlet and the charging
station socket outlet.
Fig.54
Blue glowing
Charging starts and the status indicator LED glows blue.
9.3.1.2 Stop charging
Fig.55
Constant blue (or no LED Indication in power save
mode)
Unplug the charging cable from the vehicle first.
