Weber 3000 Owner's Manual

11
Step 4
Continue frame assembly
You will need: frame assembly, wheel frame assembly,
front panel, caster frame, four 1/4-20 x 1/2 inch bolts, four
nylon washers and a 7/16 inch wrench.

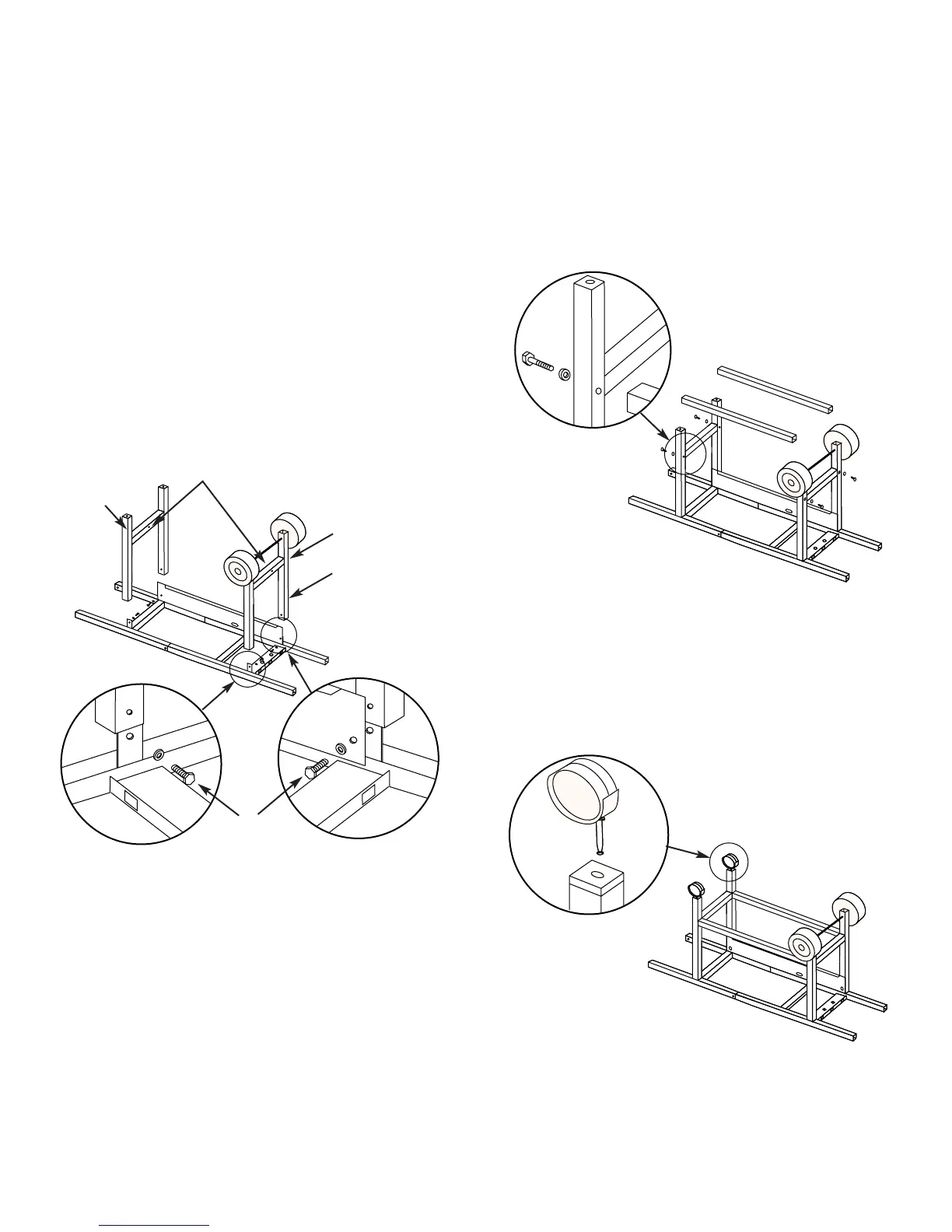

Place the caster frame onto the tabs of the left frame with
the dimple to the inside. Figure 3. Place the wheel frame
onto the tabs of the right frame with the dimple to the
inside. The fuel scale decal should face away as shown.
Figure 3.
The leg tabs must be on the inside of the frames.
Add front panel with the hole down and to your right. Add
the washers to the bolts, insert in the holes as shown.
Only start the bolts at the wheel frame, figure 3 (a) & (b),
and tighten the bolts at the caster frame.
Note - Fuel scale decal on wheel frame must be on the
same side as the front panel.
Dimples to
the inside
Fuel scale
decal
Wheel
frame
Caster
frame
Figure 3
(a)
(b)
Only start
this bolt
Step 5
Complete frame assembly
You will need: partial frame assembly, two frame
connectors, four 1/4-20 x 2 inch bolts, four nylon washers
and a 7/16 inch wrench.
Hold one frame connector between the caster and wheel
frame. Add nylon washer to the bolts. Put the bolts through
the frame and screw into frame connector. Tighten.
Repeat procedure with the other frame connector. Figure 4.
Figure 4
Step 6
Insert casters
You will need: frame assembly and two casters.
Push the casters firmly into the inserts in the ends of the
caster legs. Figure 5.
Figure 5

Weber 3000 Specifications

General

Burners	3
Ignition	Electronic
Fuel Type	Propane
BTU Output	30, 000 BTU/hour
Category	Gas Grill
