ANNUAL MAINTENANCE
5
6
7
11
9
10
12
13
8

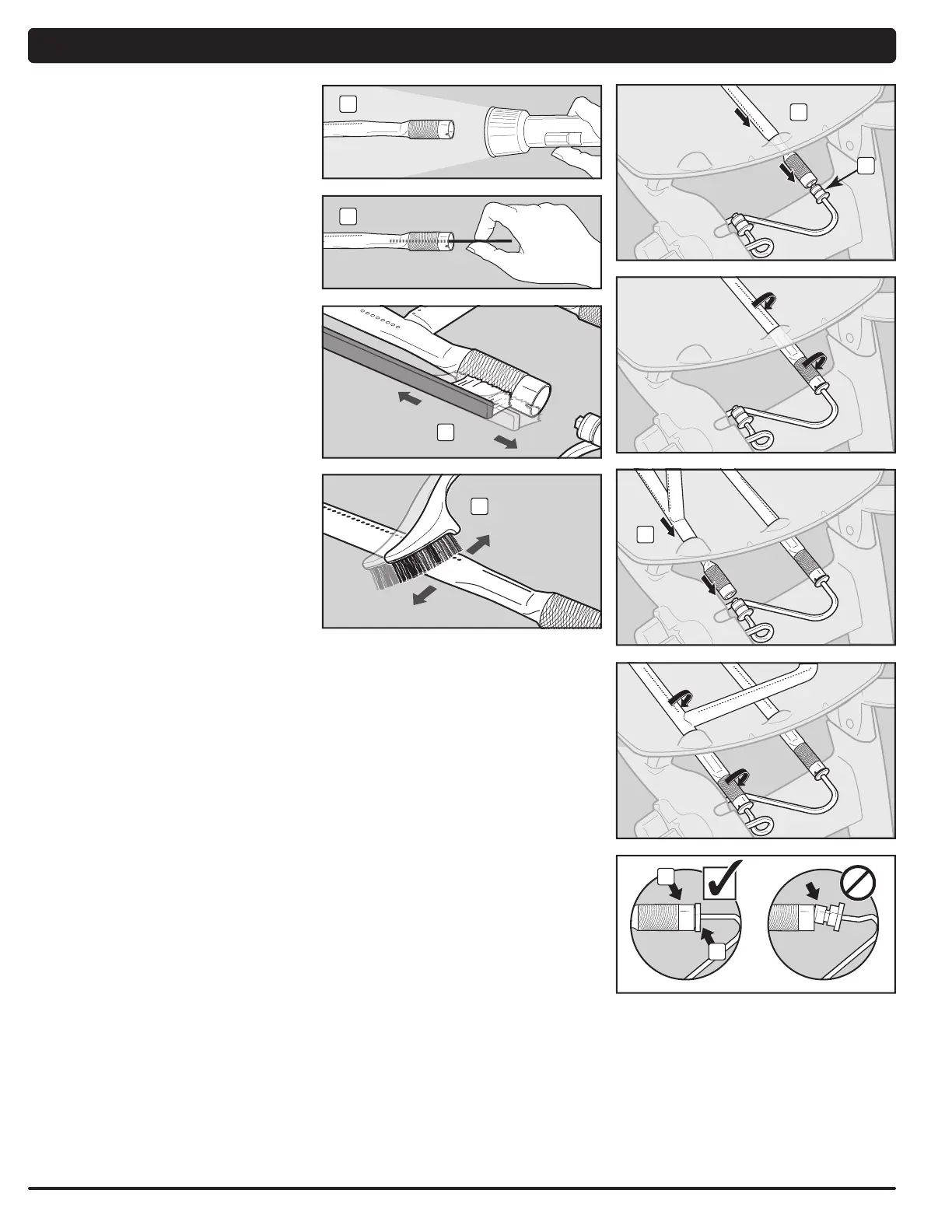

Clean Burner Tubes
You will need: A flashlight, a wire (a straightened-out coat
hanger), a suitable stainless steel bristle brush, and a soft
bristle brush (toothbrush).
A) Look inside each burner tube with a flashlight(5).
B) Clean any debris or blockage from the inside of the
burner tubes with the wire(6).
C) Check spider/insect screens at the ends of the burner
tubes and clean them using the soft bristle brush(7).
m CAUTION: Do not clean the spider/insect
screens with hard or sharp tools. Do not
dislodge the spider/insect screens or
enlarge the screen openings.
D) Use the steel bristle brush to clean the outside of the
burner tubes. This is done to make sure all burner
ports (openings) running along the length of the
burner tubes are fully open(8).
m CAUTION: Do not enlarge the burner
ports when cleaning.
Reinstall Burner Tubes
You will need: A 3/8" nut driver.
A) Carefully slide the inside burner tube back into hole in
right side of cookbox (9), aligning burner tube opening
with valve orifice (10).
B) Reinstall screw that holds the inside burner tube to
the cookbox.
C) Repeat this procedure for the outside burner tube
(11).
m CAUTION: The burner tube openings (12)
must be positioned properly over the
valve orifices (13).
m WARNING: You should check for
gas leaks every time you disconnect
and reconnect a gas fitting. Refer to
“CHECKING FOR GAS LEAKS.”
D) Replace cookbox components.
