ANNUAL MAINTENANCE
BURNER TUBE CLEANING
OR REPLACEMENT
Confirm that Barbecue is Off and Cool
A) Turn gas supply off at source and disconnect gas
fitting.
B) Check that all burner control knobs are in the off
( )position. Check by pushing burner control knobs
in and turning them clockwise until they stop. If
they do not turn, they are already off. If they do turn,
continue turning them clockwise until they stop; then
they are off.
C) Open lid and remove cookbox components.

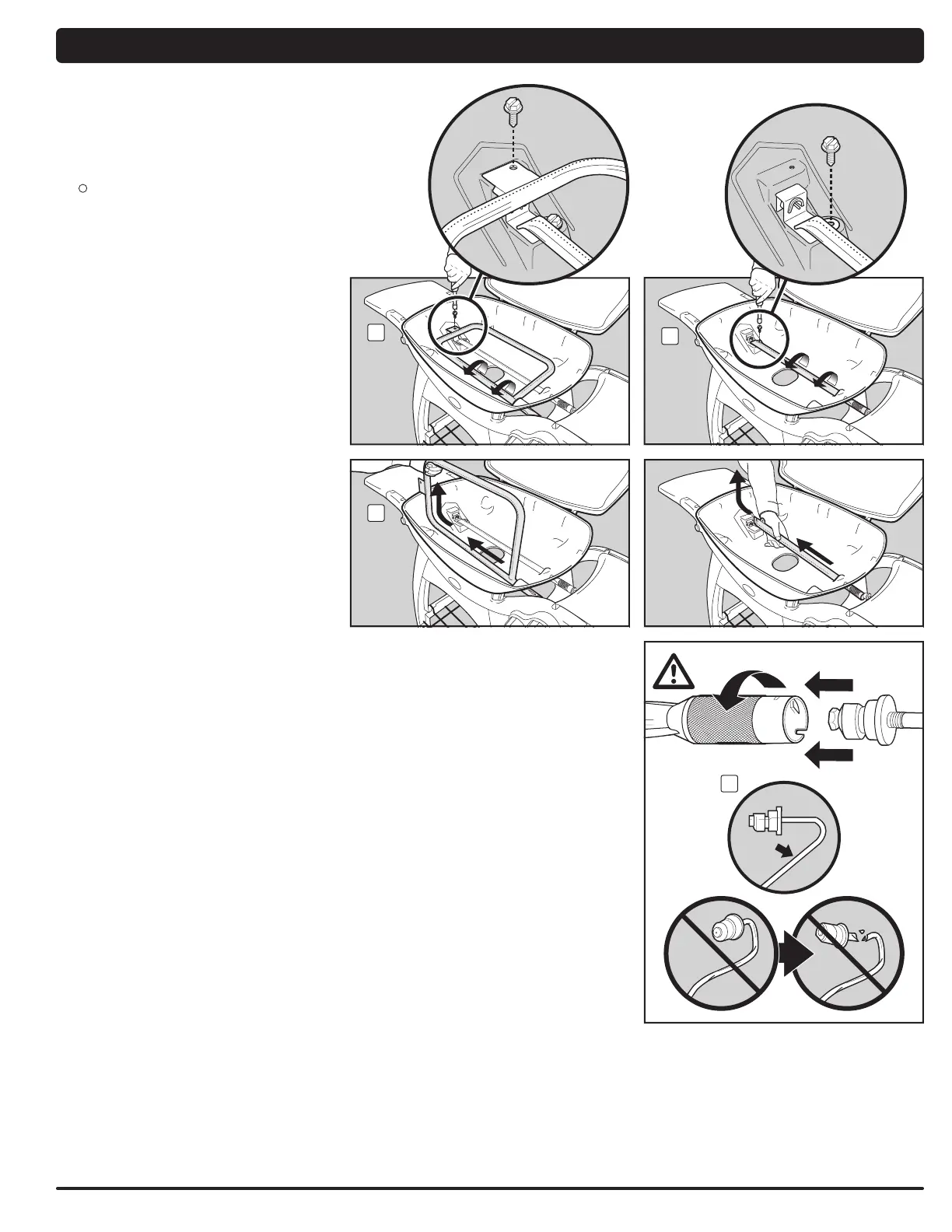

Remove Burner Tubes
You will need: A 3/8" nut driver.
A) Remove the screw that holds the outside burner tube
to the cookbox (1).
B) Rotate the outside burner tube 90° to unlock it from
the valve orifice. Slide and lift burner tube away from
valve orifice and remove from cookbox. (2)
C) Repeat this procedure for the inside burner tube (3).
m CAUTION: Care must be taken when
removing or reinstalling burner tubes.
Do not force or bend the gas lines that
connect the control valves to the burner
tubes (4).
4
1
2
3
