Weber Summit 4 BURNER - Page 14

14
MAINTENANCE

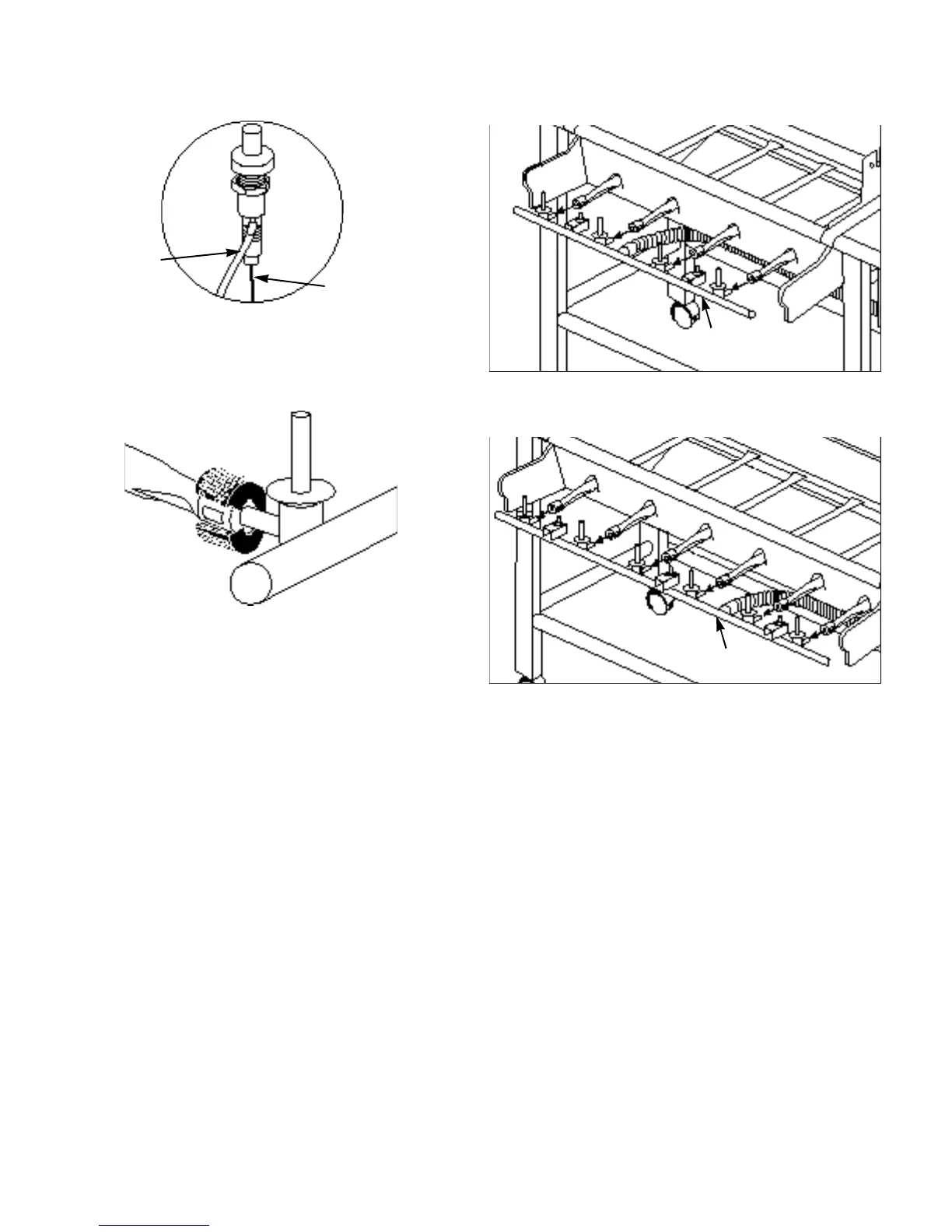

8. Unlatch the Spider Stopper Guards and remove.
Figure 12.
Figure 12
Manifold
9. Pull the manifold out of the burners. Figure 13.
Figure 13
7. Disconnect white and black wire from each igniter.
Figure 11.
Figure 11
Black wire
White wire
Summit 4 Burner
Manifold
Summit 6 Burner
