INSTALL FLAVORIZER
BARS
You will need: seven flavorizer bars.

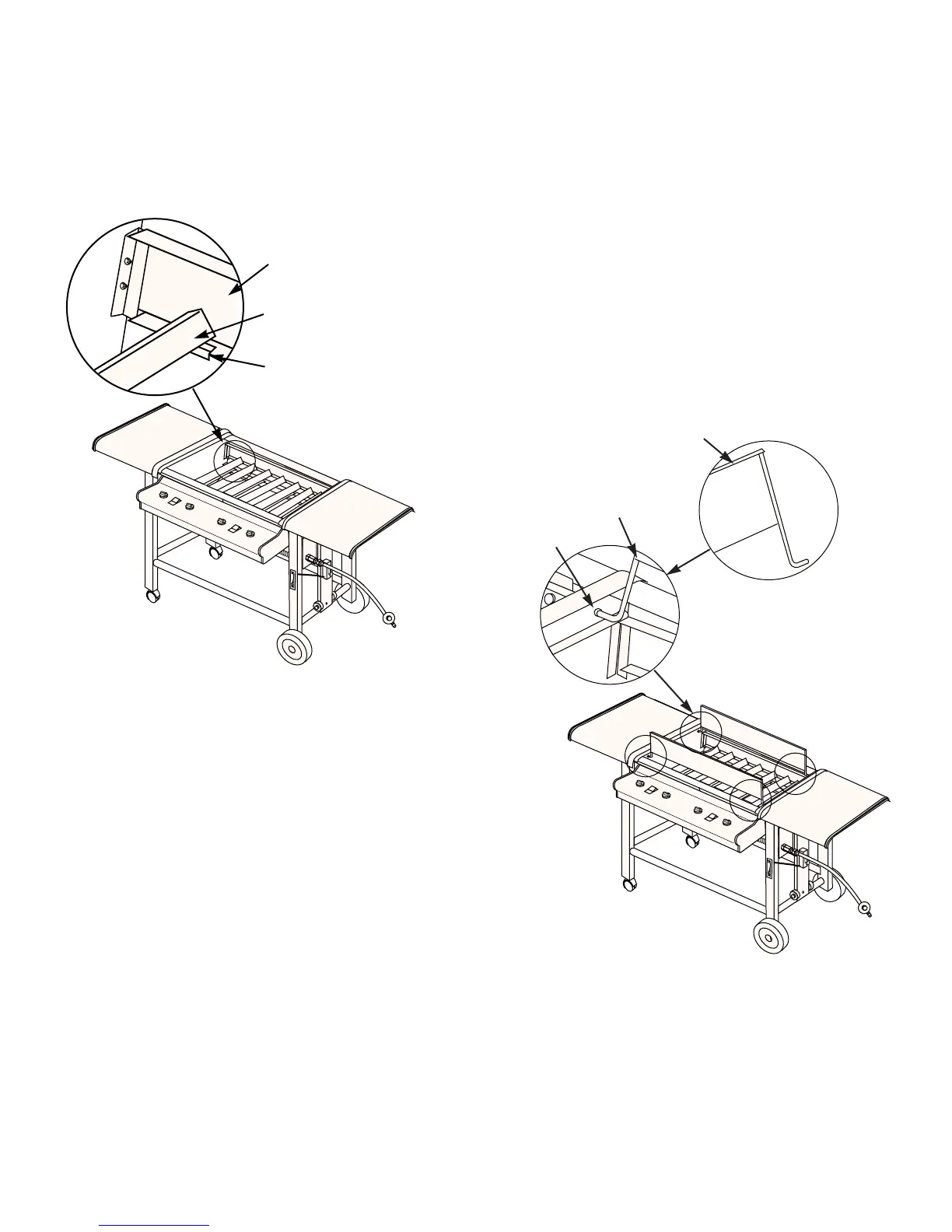

Set the Flavorizer bars front to back over the burners in
the slots of the Flavorizer Bar/cooking grill support.
Figure 1(a).
Figure 1
Flavorizer Bar/cooking grill
support
Flavorizer Bar
Slot
You will need: two splash guards
The splash guards are already in place. This step is
only for reinstallation.
Position splash guard, flanges to the rear, at the back of
the cooking box assembly. Figure 2 (a). Insert both wire
ends into the mounting holes in the cooking box.
Figure 2 (b).
Note:You will have to bend the splash guards slightly to
fit into the mounting holes.
Position the second splash guard, flanges facing you, at
the front of the cooking box assembly. Insert both wire
ends into the mounting holes in the cooking box. Figure 2.
Figure 2
(a)
(b)
REINSTALL SPLASH
GUARDS
Flanges at the
back of the
splash guards
Mounting holes
Splash guards
