5

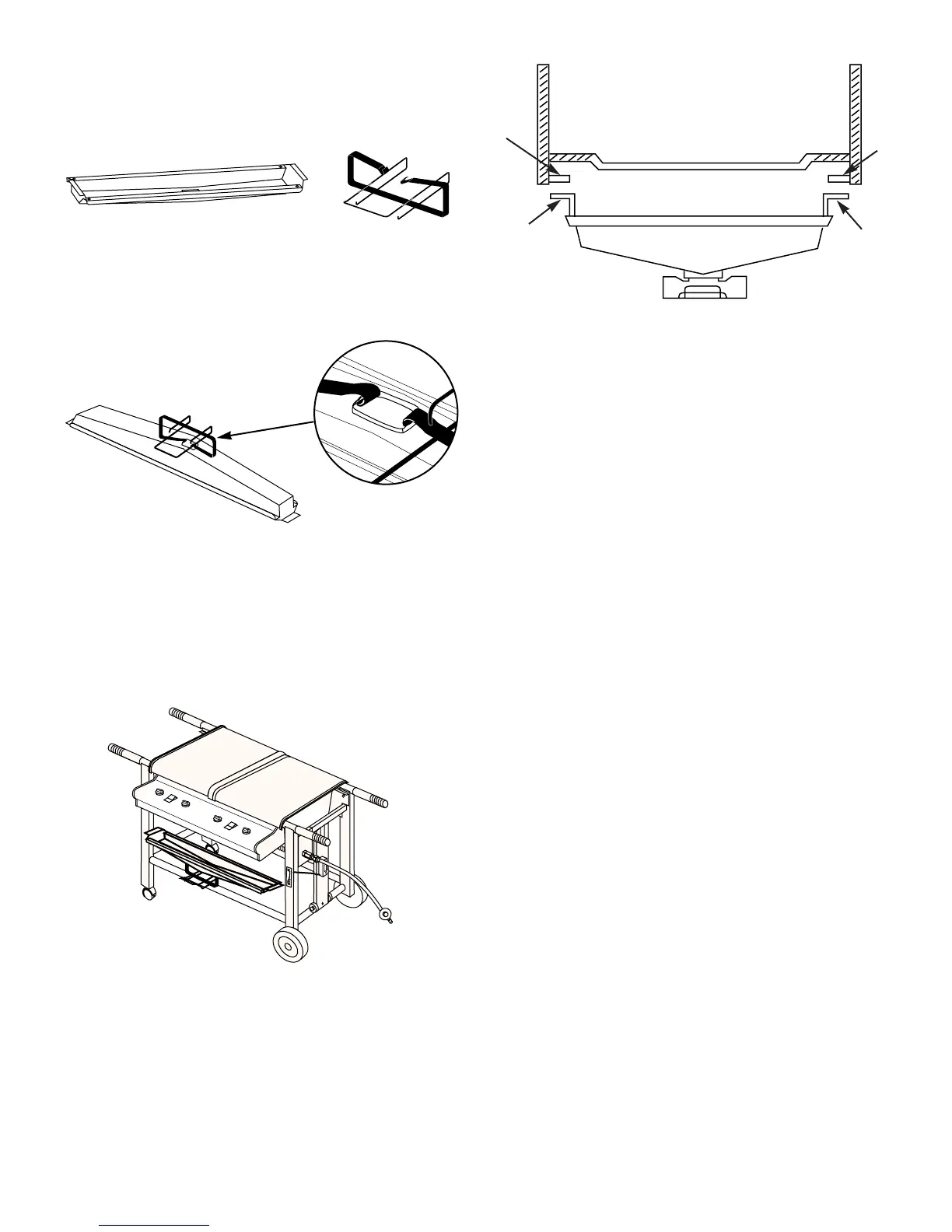

INSTALL BOTTOM TRAY
You will need: Bottom tray, catch pan holder, catch pan,
and one drip pan.
Figure 6
Figure 7
Figure 8
Figure 9
Note: It may be easier to install the catch pan holder by
removing the catch pan from the holder.
Hook the ends of the catch pan holder into the hole in the
bottom tray. Figure 7.
Slide the bottom tray into the mounting slots under the
bottom of the cooking box with the finger grip of the catch
pan toward you. Figure 8.
CAUTION: Do not line the bottom tray with aluminum
foil. It can cause grease fires by trapping the grease
and not allowing grease to flow into the catch pan.
Put the foil drip pan into the catch pan.
Mounting
slots
Mounting
slots
View from front of the Cooking Box
Tabs of
bottom tray
Tabs of
bottom tray
To Next Page
