Weber SUMMIT SB38 S - Connection Chart

20

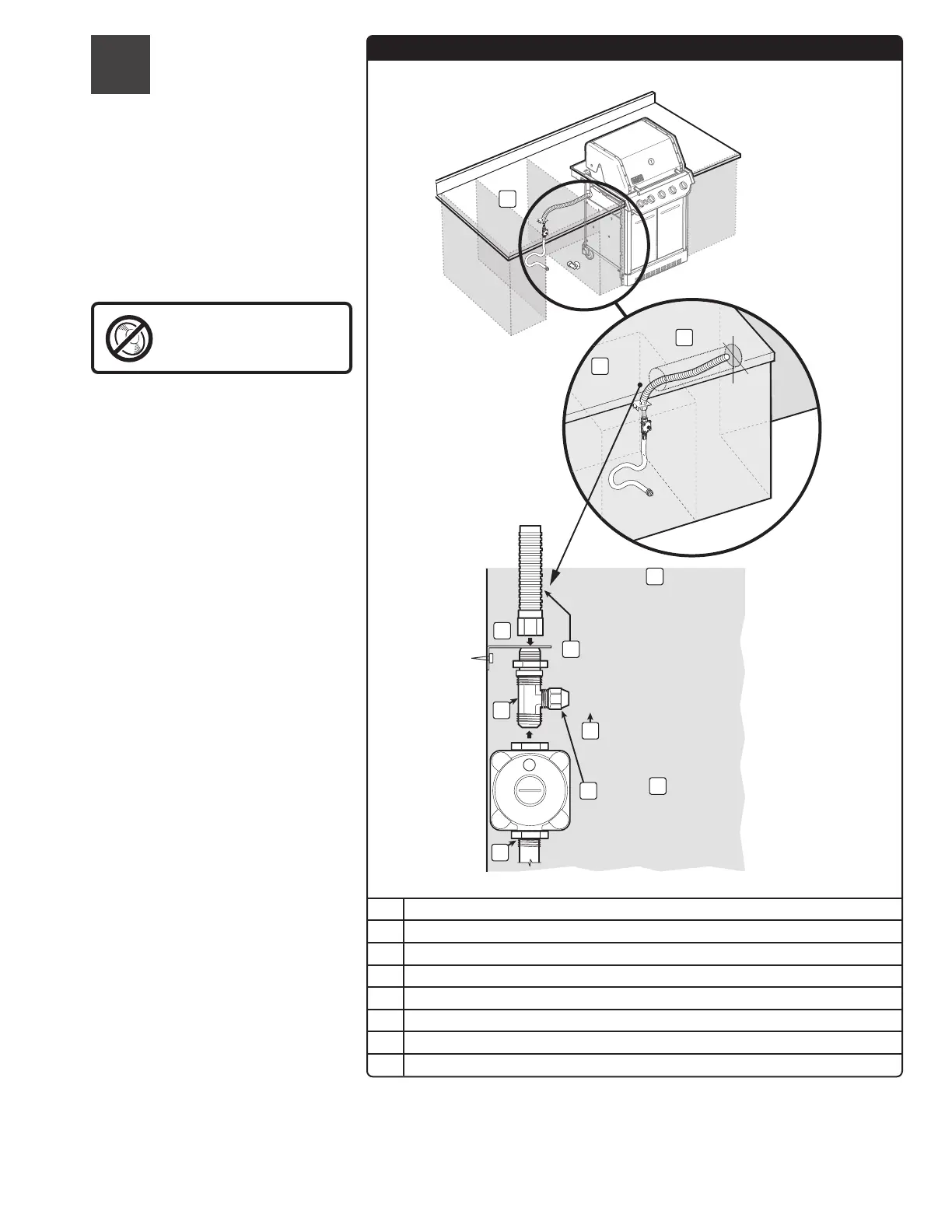

CONNECTION CHART
2
2
4
5
7
8
10
9
1
3
6
3 Typical gas supply cabinet or gas supply enclosure location
4 Side view
5 Top of box
6 Back of box
7 Corrugated gas line to manifold
8 Bulkhead
9
3
⁄8" (9.5mm) cap - DO NOT REMOVE
10 Connect hose and regulator to bulkhead
Connect Gas Supply
A 58 inch (147 cm) main corrugated gas line is
connected to the manifold of the grill.
A) Pass the main corrugated gas line through the
“island” structure cavity to the bulkhead inside the
gas supply enclosure (1).
B) Connect the main corrugated gas line to the
1
⁄2 inch (12.7mm) flare fitting on the bulkhead (2).
NOTE:
3
⁄8 inch (9.5 mm) flared gaskets are included with
your Built-In Gas Barbecue for future installation of
any
3
⁄8 inch (9.5 mm) gas accessory connection. For this
installation, the
3
⁄8 inch (9.5 mm) flared gasket is not
needed.
3
⁄8" (9.5mm) Flared Gasket
DO NOT USE. These are not needed
for this installation.
