Weber Summit Series Service Manual

1
2
4
5
6

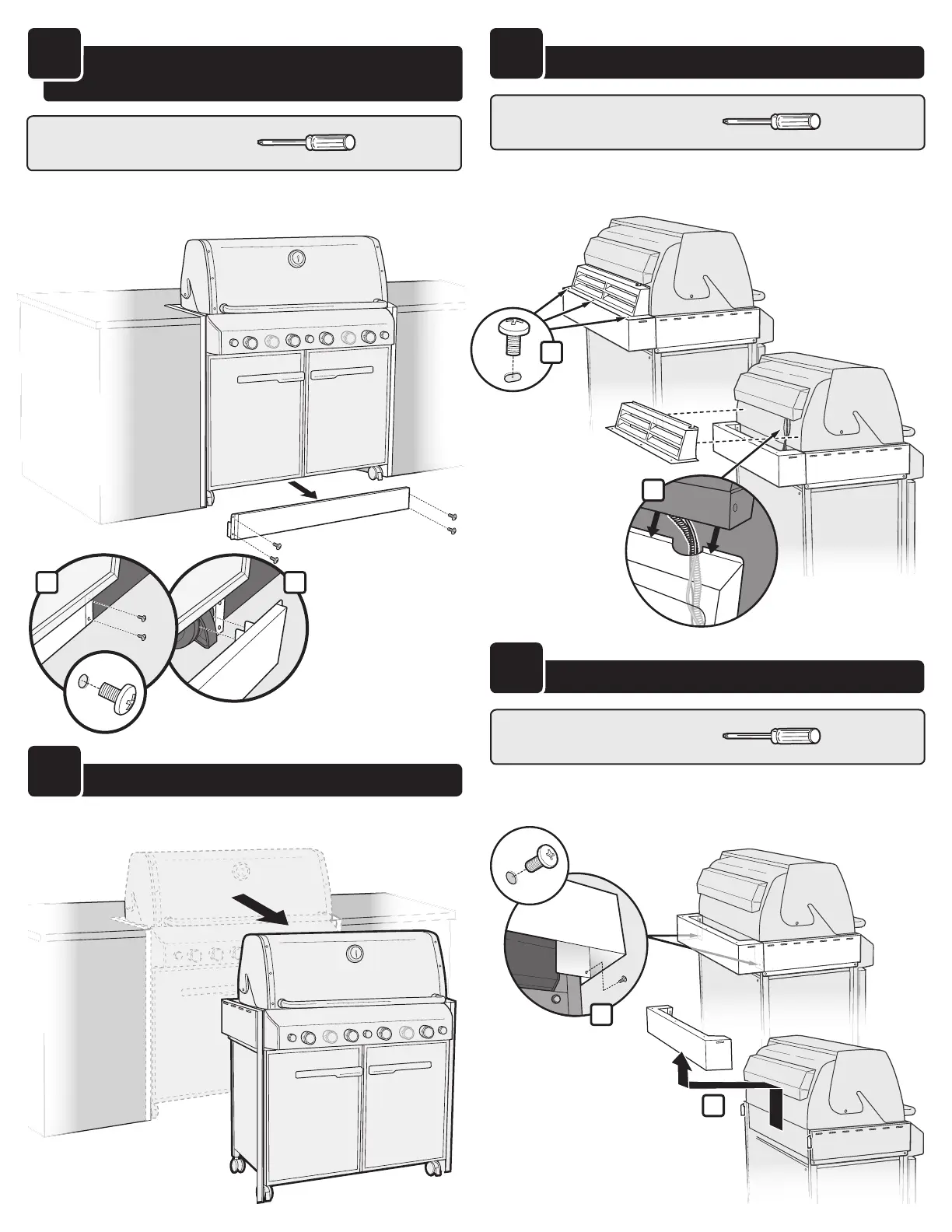

GRill aSSemblY RemOVal
ReaR Vent RemOVal
ReaR Vent bRacket RemOVal
TOOLS NEEDED: - PHILLIPS
TOOLS NEEDED: - PHILLIPS
A) Unlock front casters of grill assembly (Not Pictured).
B) Pull grill assembly away from island structure.
A) Using a Phillips head screwdriver, remove screws that secure rear vent to
rear vent bracket (1).
B) Lift rear vent off grill assembly (2).
A) Using a Phillips head screwdriver, remove screws that secure rear vent
bracket to frame assembly (1).
B) Lift rear vent bracket off grill assembly hooks (2).
1 2
1
2
3
RemOVal OF
FROnt WHeel aliGnment panel
TOOLS NEEDED: - PHILLIPS
A) Using a Phillips head screwdriver, remove screws that secure front wheel
alignment panel to frame assembly (1).
B) Pull front wheel alignment panel away from grill assembly (2).
