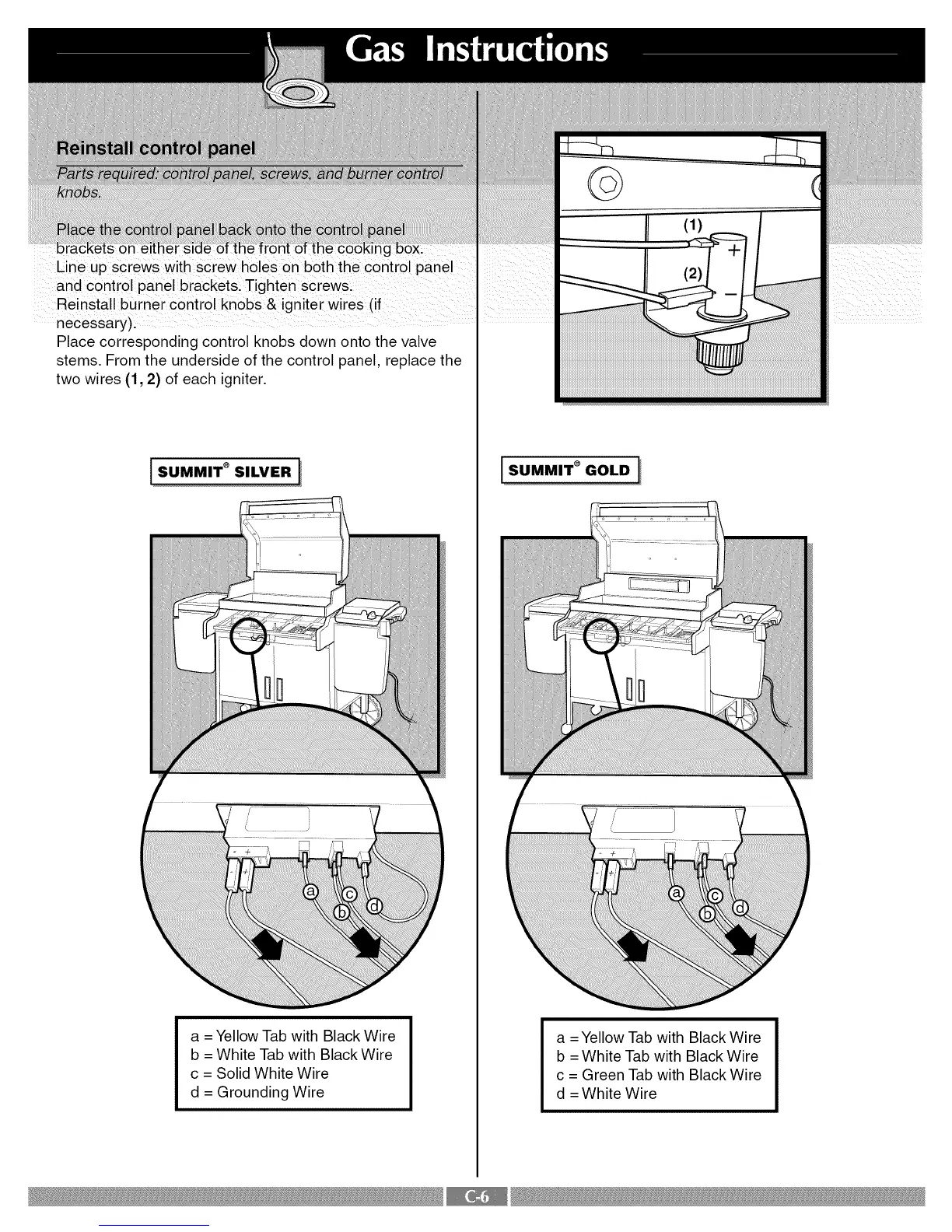

Weber SUMMIT SILVER B - Reinstall Control Panel

Line up Screws with screw holes 0n both the Control panel
and control panel brackets Tighten screws:
ReinStall burner c0ntr01 knobs & igniter wires (if
necessary)i
Place corresponding control knobs down onto the valve
stems. From the underside of the control panel, replace the
two wires (1,2) of each igniter.
I SUMMIT _ SILVER _!
a = Yellow Tab with Black Wire
b = White Tab with Black Wire
c = Solid White Wire
d = Grounding Wire
©
(1)
a = Yellow Tab with Black Wire
b = White Tab with Black Wire
c = Green Tab with Black Wire
d = White Wire
