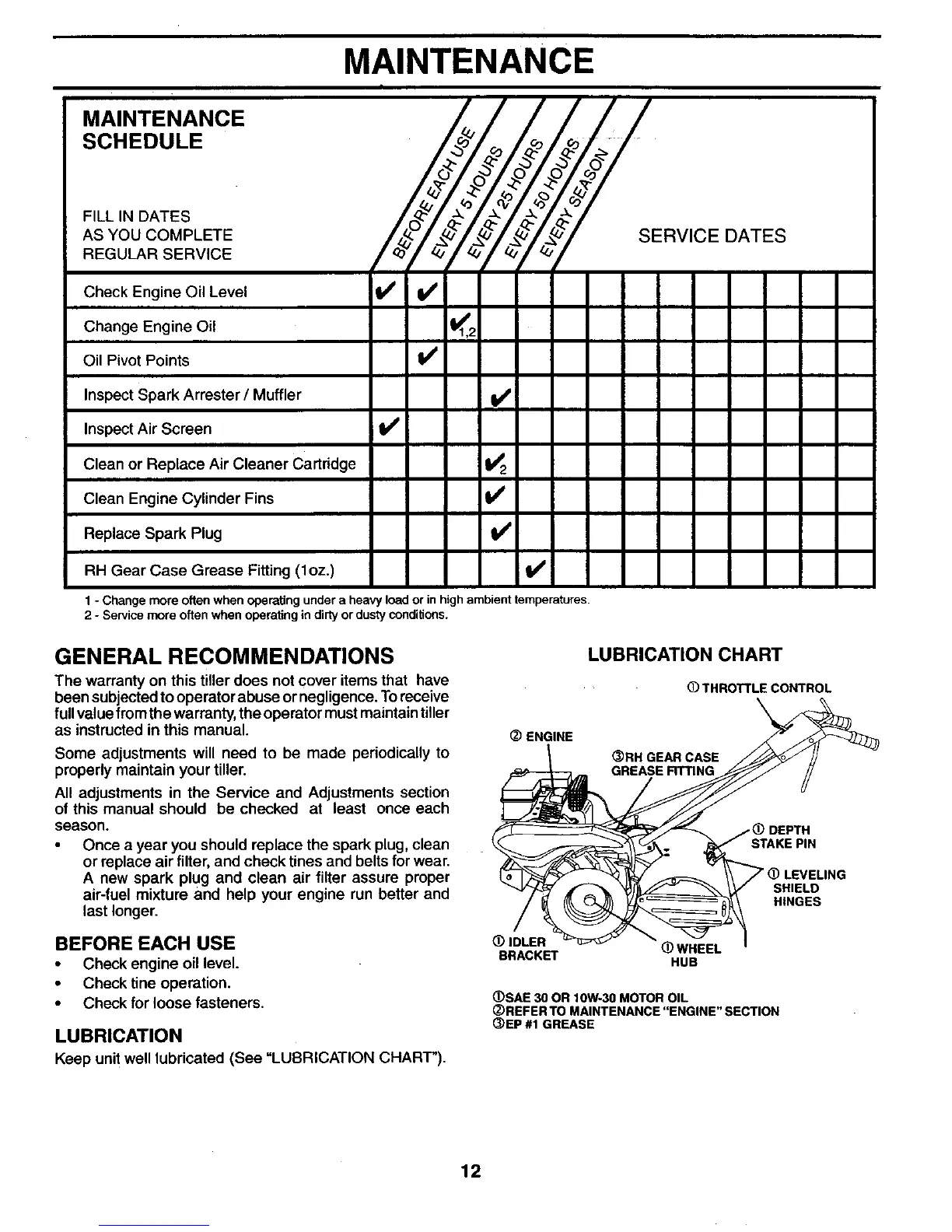

MAINTENANCE
I
MAINTENANCE
SCHEDULE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
Y
SERVICE DATES
Check Engine Oil Level li/' !_
Change Engine Oil 1_1,2
Oil Pivot Points If
Inspect Spark Arrester/Muffler V'
Inspect Air Screen I_
Clean or Replace Air Cleaner Cartridge I/2
Clean Engine Cylinder Fins Ii/
Replace Spark Plug
RH Gear Case Grease Fitting (1oz.) V'
1- Change moreoften whenoperatingunder a heavyloador inhighambienttemperatures.
2 - Servicemore often whenoperatingin dirtyordustyconditions.
GENERAL RECOMMENDATIONS
The warranty on this tiller does not cover items that have
been subjected to operator abuse or negligence. To receive
full value from the warranty, the operator must maintain tiller
as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your tiller.
All adjustments in the Service and Adjustments section
of this manual should be checked at least once each
season.
• Once a year you should replace the spark plug, clean
or replace air filter, and check tines and belts for wear.
A new spark PlUg and clean air filter assure proper
air-fuel mixture and help your engine run better and
last longer.
BEFORE EACH USE
• Check engine oil level.
• Check tine operation.
• Check for loose fasteners.
LUBRICATION
Keep unitwell lubricated (See "LUBRICATION CHART").
LUBRICATION CHART
O THROTTLE CONTROL
(_ ENGINE
(_RH GEAR CASE
GREASE FITTING
STAKE PIN
SHIELD
HINGES
_) IDLER (D WHEEL
BRACKET HUB
(DSAE 30 OR 10W-30 MOTOR OIL
_)REFER TO MAINTENANCE"ENGINE" SECTION
(_EP #1 GREASE
