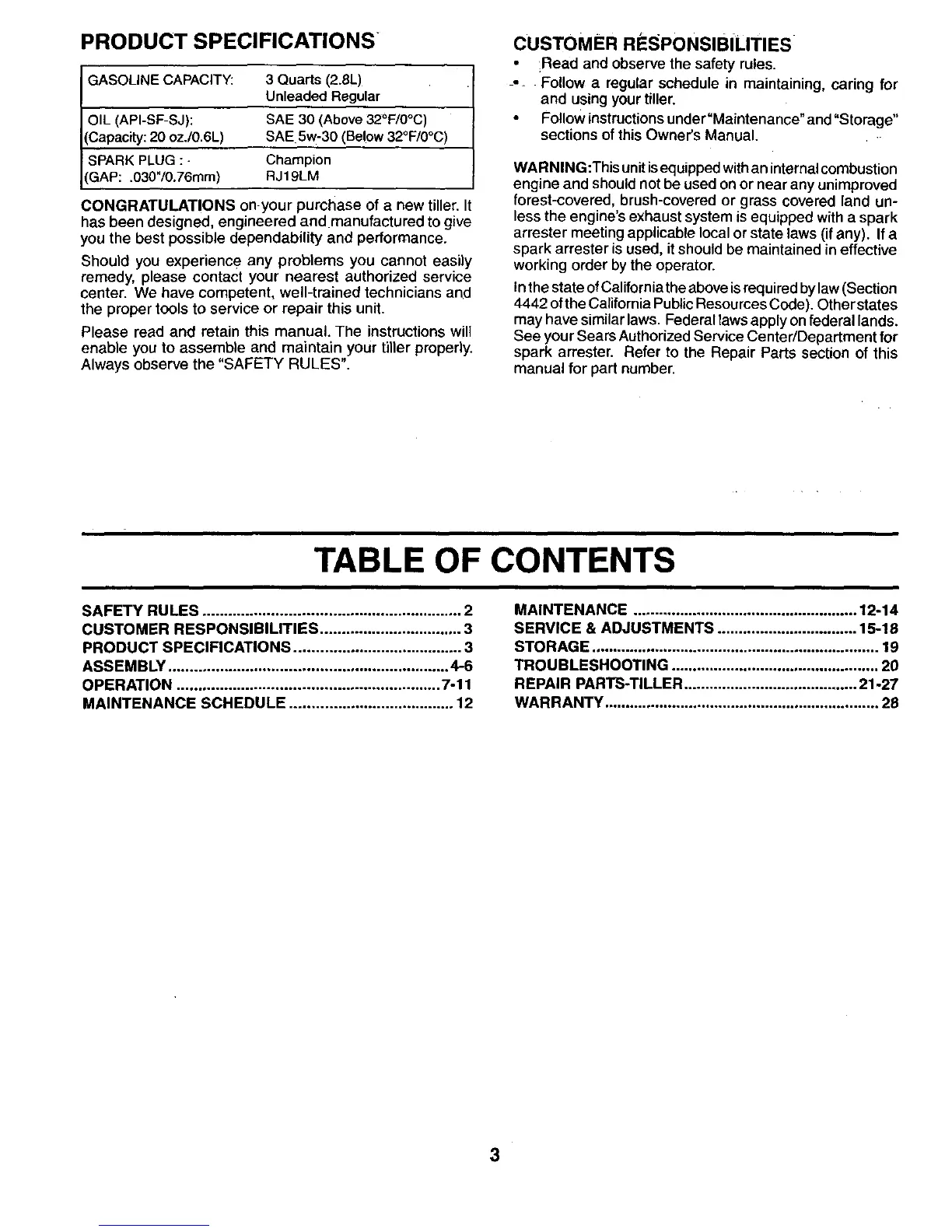

PRODUCT SPECIFICATIONS
GASOLINE CAPACITY: 3 Quarts (2.8L)
Unleaded Regular
OIL (API-SF-SJ): SAE 30 (Above 32°F/0°C)
(Capacity: 20 ozJ0.6L) SAE 5w-30 (Below 32°F/0°C)
SPARK PLUG : - Champion
GAP: .030"/0,76mm) RJ19LM
CONGRATULATIONS on your purchase of a new tiller. It
has been designed, engineered and manufactured to give
you the best possible dependability and performance.
Should you experience any problems you cannot easily
remedy, please contact your nearest authorized service
center. We have competent, well-trained technicians and
the proper tools to service or repair this unit.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your tiller properly.
Always observe the "SAFETY RULES".
CUSTOMER RESPONSIBILITIES
Read and observe the safety rules.
-_ Follow a regular schedule in maintaining, caring for
and using your tiller.
Follow instructions under"Maintenance" and "Storage"
sections of this Owner's Manual.
WARNING:This unit is equipped with an internal combustion
engine and should not be used on or near any unimproved
forest-covered, brush-covered or grass covered land un-
less the engine's exhaust system is equipped with a spark
arrester meeting applicable local or state laws (if any). If a
spark arrester is used, it should be maintained in effective
working order by the operator.
Inthe state of California the above isrequired by law(Section
4442 of the California Public Resources Code). Otherstates
may have similar laws. Federal lawsapply on federal lands.
See your Sears Authorized Service Center/Department for
spark arrester. Refer to the Repair Parts section of this
manual for part number.
TABLE OF CONTENTS
SAFETY RULES ............................................................ 2
CUSTOMER RESPONSIBILrrlES ................................. 3
PRODUCT SPECIFICATIONS ....................................... 3
ASSEMBLY ................................................................. 4-6
OPERATION ............................................................. 7-11
MAINTENANCE SCHEDULE ...................................... 12
MAINTENANCE ..................................................... 12-14
SERVICE & ADJUSTMENTS ................................. 15-18
STORAGE .................................................................... 19
TROUBLESHOOTING ................................................. 20
REPAIR PARTS-TILLER ......................................... 21-27
WARRANTY ................................................................. 28
