Weed Eater TILLER WET6500A - Handle Assembly; Repair Parts-Tiller

REPAIR PARTS
TILLER - - MODEL NUMBER WET6500A

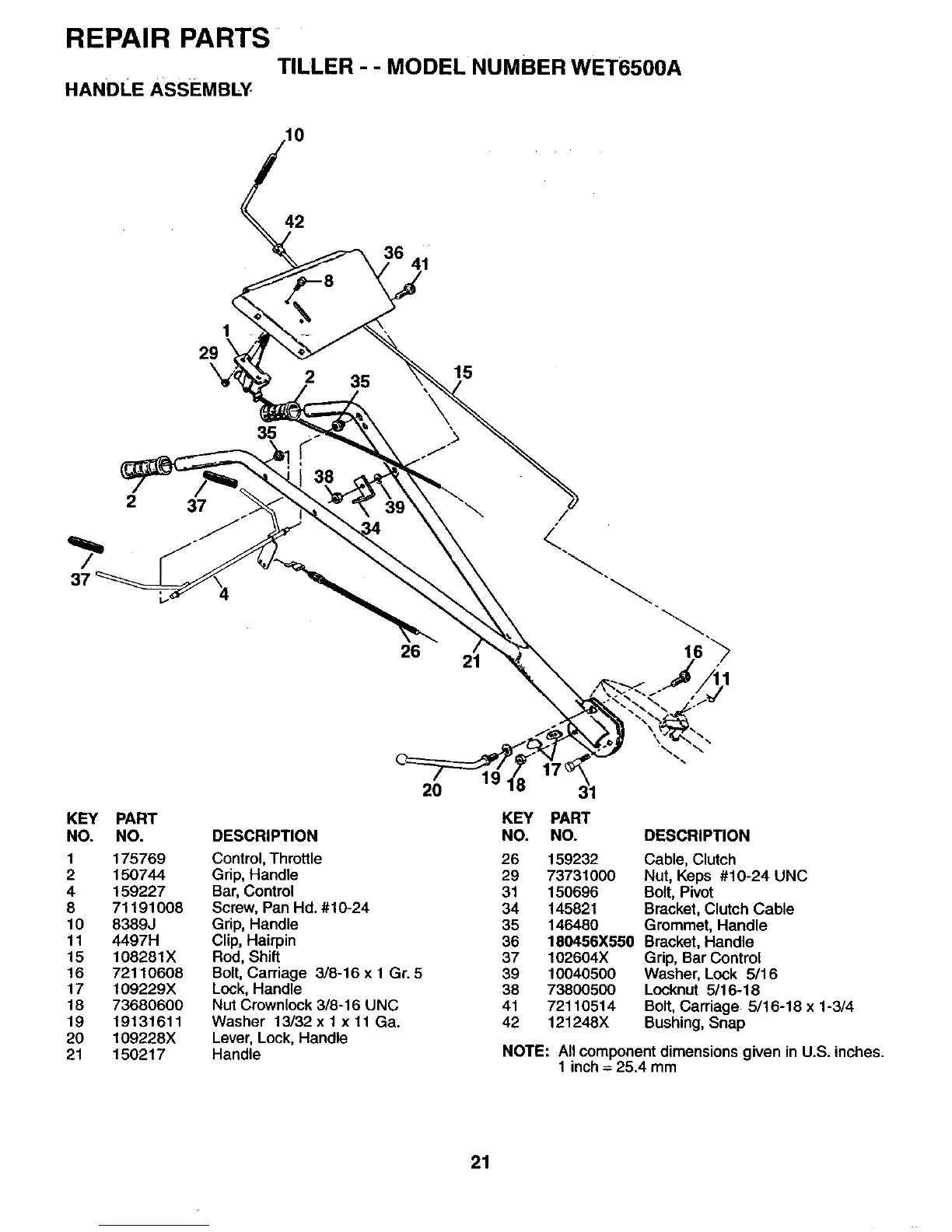

HANDLE ASSEMBLY
42
41
1
29
35
2 35
15
\
2
37
26
21
/
KEY
NO.
1
2
4
8
10
11
15
16
17
18
19
20
21
PART
NO.
175769
150744
159227
71191008
8389J
4497H
108281X
72110608
109229X
73680600
19131611
109228X
150217
DESCRIPTION
Control, Throttle
Grip, Handle
Bar, Control
Screw, Pan Hd. #10-24
Grip, Handle
Clip, Hairpin
Rod, Shift
Bolt, Carriage 3/8-16 x 1 Gr. 5
Lock, Handle
Nut Crownlock 3/8-16 UNC
Washer 13/32 x 1 x 11 Ga.
Lever, Lock, Handle
Handle
20
19,
KEY PART
NO. NO. DESCRIPTION
26 159232 Cable, Clutch
29 73731000 Nut, Keps #10-24 UNC
31 150695 Bolt, Pivot
34 145821 Bracket, Clutch Cable
35 146480 Grommet, Handle
36 180456X550 Bracket, Handle
37 102604X Grip, Bar Control
39 10040500 Washer, Lock 5/18
38 73800500 Locknut 5/16-18
41 72110514 Bolt, Carriage 5/16-18 x 1-3/4
42 121248X Bushing, Snap
NOTE: All component dimensions given in U.S. inches.
