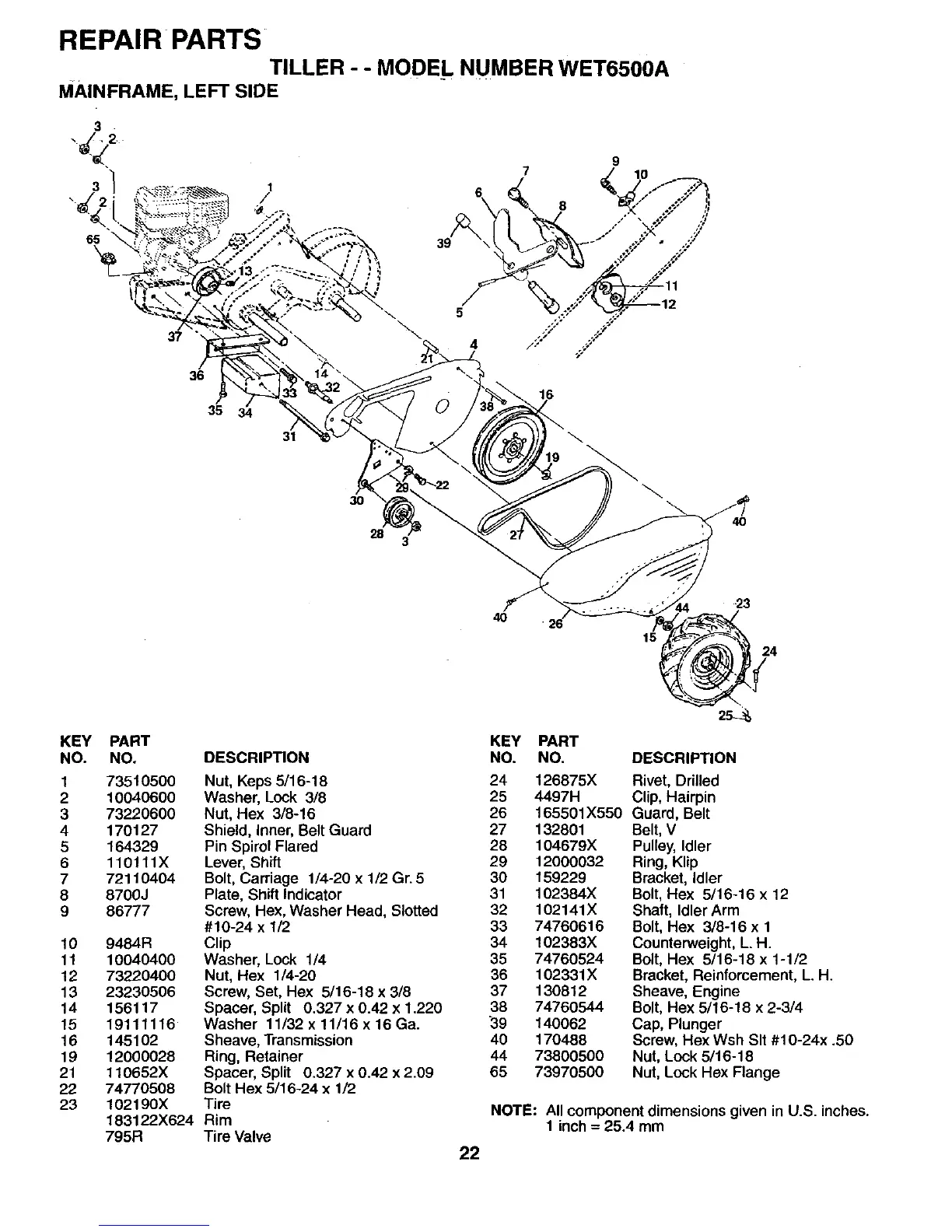

REPAIR PARTS
TILLER - - MODEL NUMBER WET6500A
MAINFRAME, LEFT SIDE
3
65
37
36
35
I
/
34
31
3O
\
\
2
16
19
\
28
3
4O
4O
- 23
15
24
KEY PART
NO. NO.
1 73510500
2 10040600
3 73220600
4 170127
5 164329
6 110111X
7 72110404
8 8700J
9 86777
10 9484R
11 10040400
12 73220400
13 23230506
14 156117
15 19111116
16 145102
19 12000028
21 110652X
22 74770508
23 102190X
183122X624
795R
DESCRIPTION
Nut, Keps 5/16-18
Washer, Lock 3/8
Nut, Hex 3/8-16
Shield, Inner, Belt Guard
Pin Spiral Flared
Lever, Shift
Bolt, Carriage 1/4-20 x 1/2 Gr. 5
Plate, Shift Indicator
Screw, Hex, Washer Head, Slotted
#10-24 x 1/2
Clip
Washer, Lock 1/4
Nut, Hex 1/4-20
Screw, Set, Hex 5/16-18 x 3/8
Spacer, Split 0.327 x 0.42 x 1.220
Washer 11/32 x 11/16 x 16 Ga.
Sheave, Transmission
Ring, Retainer
Spacer, Split 0.327 x 0.42 x 2.09
Bolt Hex 5/16-24 x 1/2
Tire
Rim
Tire Valve
KEY PART
NO. NO. DESCRIPTION
24 126875X Rivet, Drilled
25 4497H Clip, Hairpin
26 165501X550 Guard, Belt
27 132801 Belt, V
28 104679X Pulley, Idler
29 12000032 Ring, Klip
30 159229 Bracket, Idler
31 102384X Bolt, Hex 5/16-16 x 12
32 102141X Shaft, Idler Arm
33 74760616 Bolt, Hex 3/8-16 x 1
34 102383X Caunterweight, L. H.
35 74760524 Bolt, Hex 5/16-18 x 1-1/2
36 102331X Bracket, Reinforcement, L. H.
37 130812 Sheave, Engine
38 74760544 Bolt, Hex 5/16-18 x 2-3/4
_39 140062 Cap, Plunger
40 170488 Screw, Hex Wsh Sit #10-24x .50
44 73800500 Nut, Lock 5/16-18
65 73970500 Nut, Lock Hax Flange
NOTE: All camponent dimensions given in U.S. inches.
1 inch = 25.4 mm
22
