KNOWYOUR TILLER
OPERATION
L
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.
Compare the illustrationswith your tiller to familiarize yourself with the location of various controls and adjustments, Save
this manual for"futui'e reference.
These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their
meaning.
tiLLING FORWARD NEUTRAL REVERSE CAUTION ENGINE FAST SLOW
OR WARNING ON OFF
,EVER
THROTTLE CONTROL
CHOKE CONTROL
DRIVE CONTROL
BAR
DEPTH STAKE
LEVELING
OUTER SIDE
RECOIL
STARTER
HANDLE

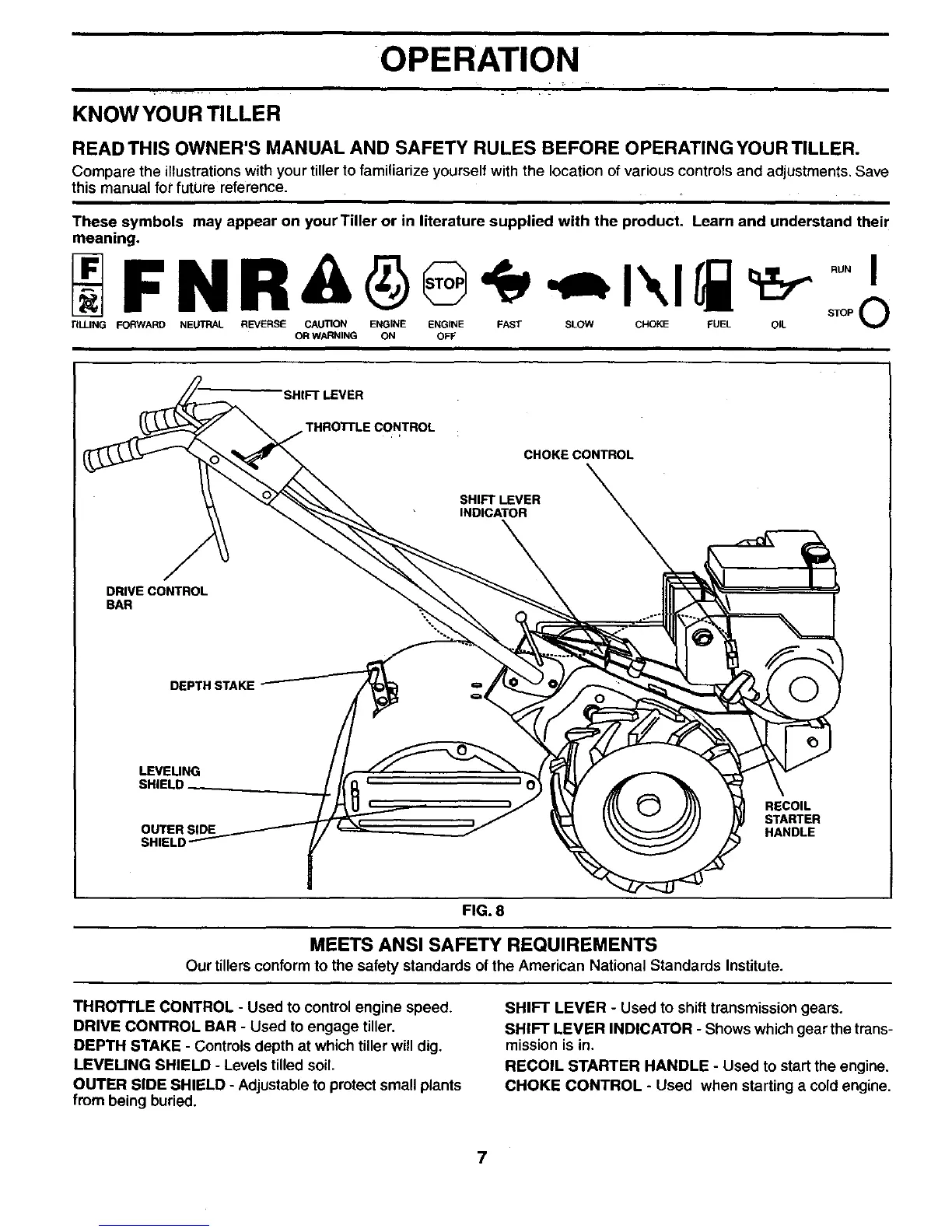

FIG. 8
MEETS ANSI SAFETY REQUIREMENTS
Our tillersconform to the safety standards ofthe American National Standards Institute.
THROTTLE CONTROL - Used to control engine speed.
DRIVE CONTROL BAR - Used to engage tiller.
DEPTH STAKE - Controls depth at which tiller will dig.
LEVELING SHIELD - Levels tilled soil.
OUTER SIDE SHIELD - Adjustable to protect small plants
from being buried.
SHIFT LEVER - Used to shift transmission gears.
SHIFT LEVER INDICATOR - Shows which gear the trans-
mission IS In.
RECOIL STARTER HANDLE - Used to start the engine.
CHOKE CONTROL - Used when starting a cold engine.
