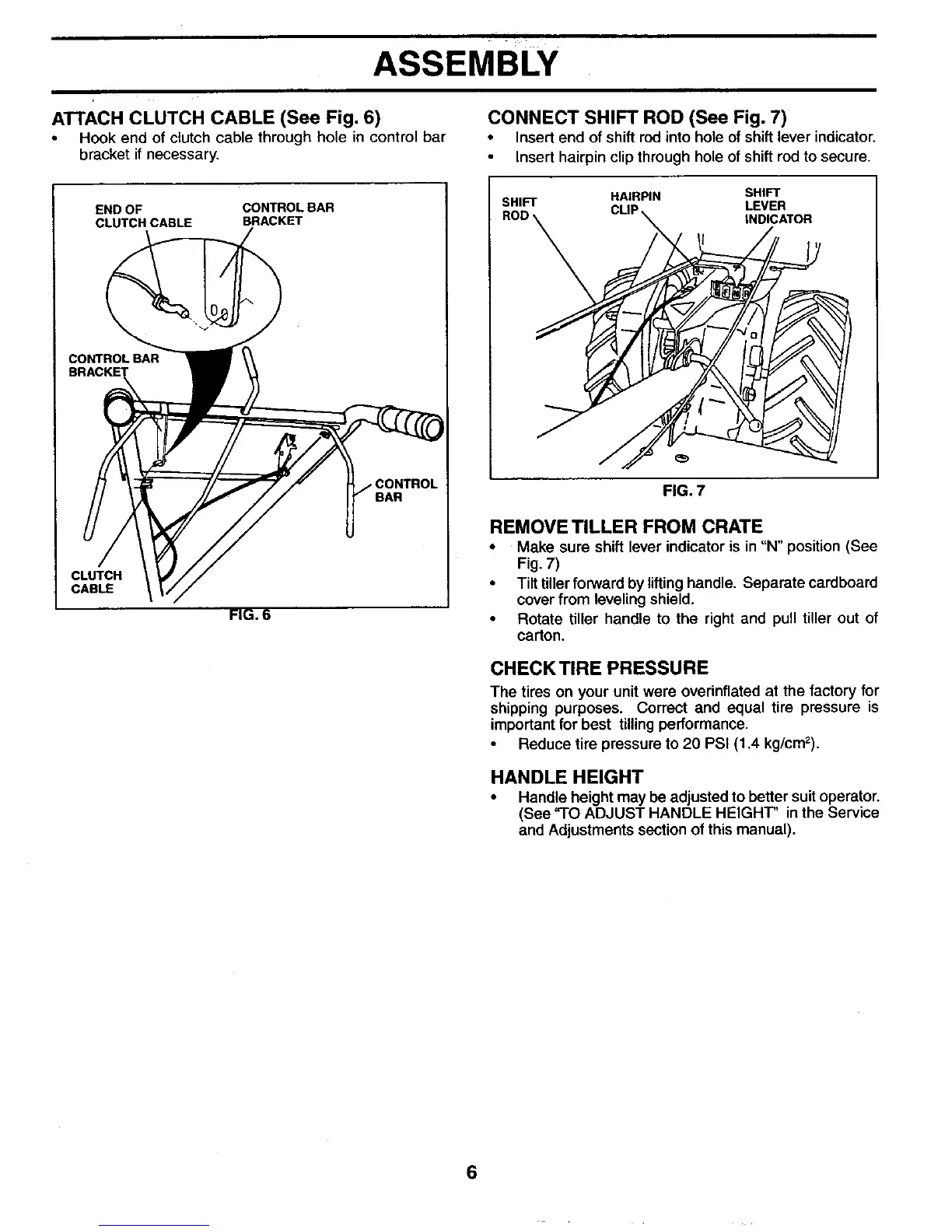

ASSEMBLY
CONNECT SHIFT ROD (See Fig. 7)
ATTACH CLUTCH CABLE (See Fig. 6)
• Hook end of clutch cable through hole in control bar
bracket if necessary.
END OF CONTROL BAR
CLUTCH CABLE BRACKET
CONTROLBAR
BRACKET
BAR
CLUTCH
CABLE
FIG. 6
• Insert end of shift rod into hole of shift lever indicator.
Insert hairpin clip through hole of shift rod to secure.
SHIFT HAIRPIN SHIFT
CLIP, LEVER
INDICATOR
FIG. 7
REMOVE TILLER FROM CRATE
• Make sure shift lever indicator is in "N" position (See
Fig, 7)
• Tilttiller forward by liftinghandle. Separate cardboard
cover from levelingshield.
• Rotate tiller handle to the right and pull tiller out of
carton.
CHECKTIRE PRESSURE
The tires on your unit were overinflated at the factory for
shipping purposes. Correct and equal tire pressure is
important for best tillingperformance.
• Reduce tire pressure to 20 PSI (1.4 kg/cm2).
HANDLE HEIGHT
• Handle height may be adjusted to better suit operator.
(See "TO ADJUST HANDLE HEIGHT" in the Service
and Adjustments section of this manual).
6
