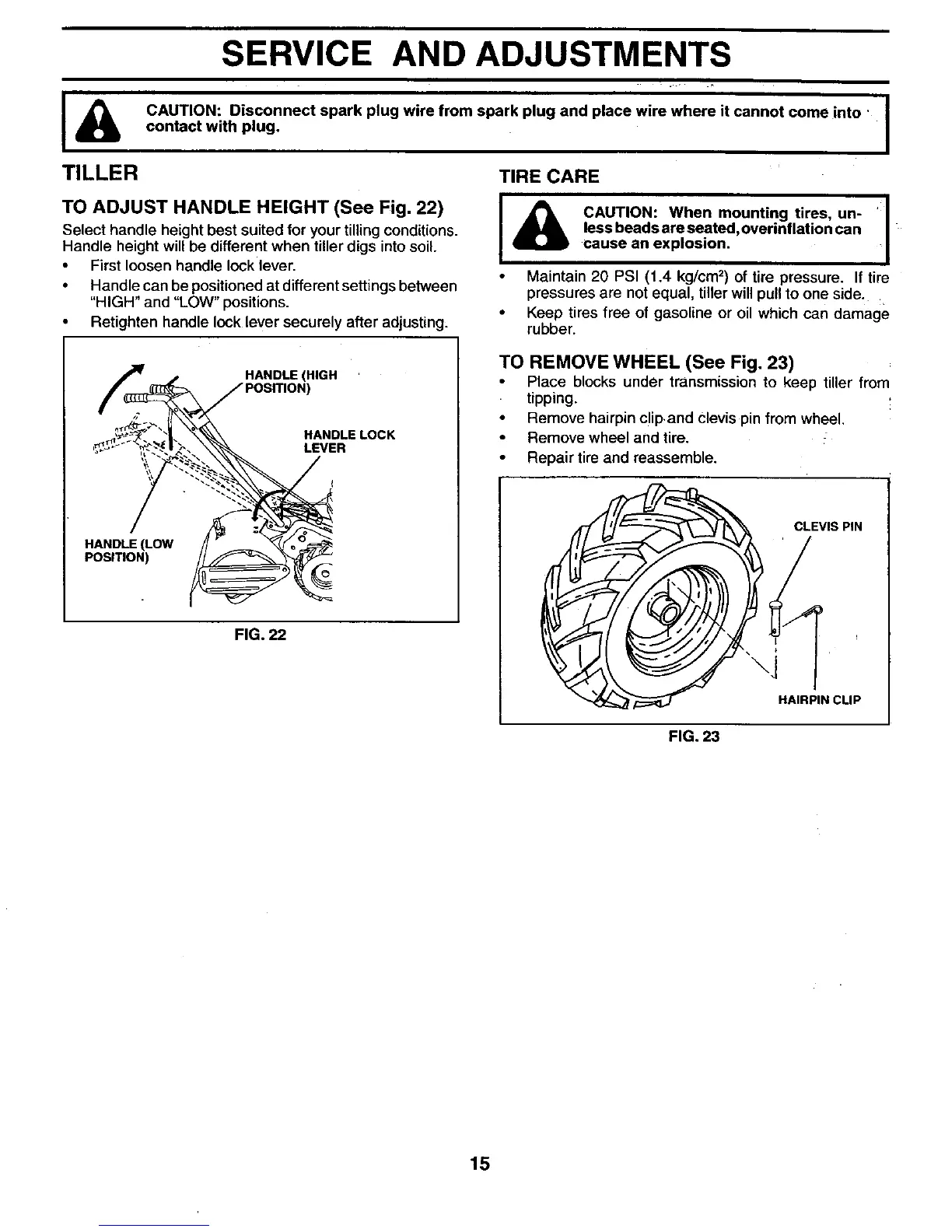

SERVICE AND ADJUSTMENTS
IA
TILLER
CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into ' I
contact with plug.
I
TO ADJUST HANDLE HEIGHT (See Fig. 22)
Select handle height best suited for your tilling conditions.
Handle height will be different when tiller digs into soil.
• First loosen handle lock lever.
• Handle can be positioned at different settings between
"HIGH" and "LOW" positions.
• Retighten handle lock lever securely after adjusting;
TIRE CARE
I A CAUTION: When mounting tires, un-
less beads are seated,overinflation can
cause an explosion. I •
Maintain 20 PSI (1.4 kg/cm 2) of tire pressure. If tire
pressures are not equal, tiller will pull to one side.
Keep tires free of gasoline or oil which can damage
rubber.
HANDLE (HIGH
)
HANDLE LOCK
LEVER
HANDLE (LOW
POSITION
FIG. 22
TO REMOVE WHEEL (See Fig. 23)
• Place blocks under transmission to keep tiller from
tipping.
• Remove hairpin c!ip,and clevis pin from wheel,
• Remove wheel and tire;
• Repair tire and reassemble.
i l
CLEVIS PIN
HAIRPIN CLIP
FIG. 23
15
