WEG CFW-11 Series Manual

11
ENGLISH
3.2 Electrical Installation - Grounding Terminals

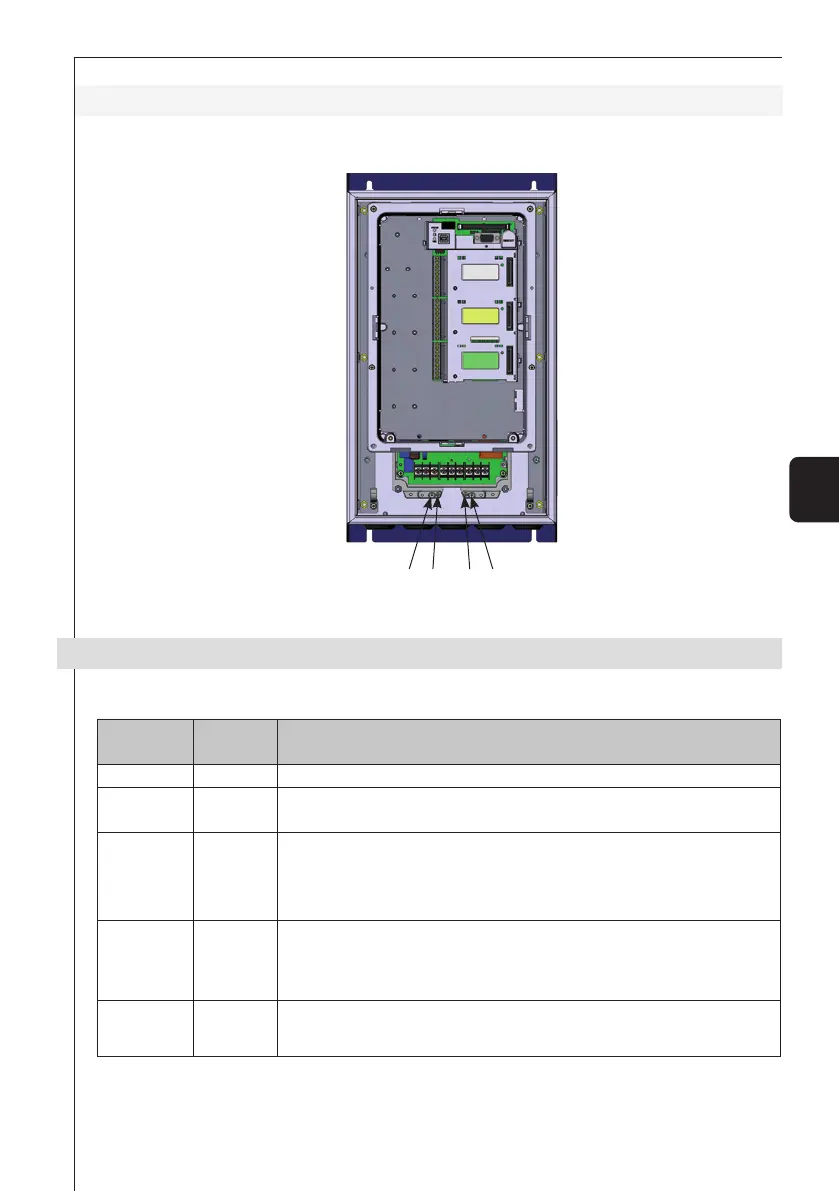

The figure 3 shows the grounding points located inside the product.
Grounding
Figure 3 - Product grounding
4. ACCESSORIES FOR THE CFW-11 IP54 PROTECTION DEGREE MODELS
Table 4 - List of available accessories for the CFW-11 with protection degree IP54
WEG Part
Number
Name Description
10960847 CCS-01 Kit for control cables shielding (included in the standard product).
11112774 PCS1-01
Shielding kit for power cables for IP54 frame size 1 models (standard for
option FA).
11112776 PCSC-02
Shielding kit for power cables for CFW110045T2O54...,
CFW110054T2O54..., CFW110070T2O54..., CFW110038T4O54...,
CFW110045T4O54... and CFW110058T4O54... models (standard for
option FA).
11119781 PCSD-01
Shielding kit for power cables for frame size D (IP20) inverters and
CFW110086T2O54..., CFW110105T2O54..., CFW110070T4O54...
and CFW110088T4O54... models - included in the standard product.
10960844 PCSE-01
Shielding kit for power cables for frame size E (IP20) and frame size 3
(IP54) inverters - included in the standard product.

WEG CFW-11 Series Specifications

General

Output Voltage	0 to Input Voltage
Communication	Modbus RTU, Profibus DP, Ethernet/IP, CANopen
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Storage Temperature	-25 to 65 °C (-13 to 149 °F)
