3.2 MOUNTING
The CPW22 is intended for installation in control cabinets with a minimum degree of protection of IP54, mounted
on a 35 mm DIN rail according to DIN EN 60715 TH35.
Fixing on 35 mm DIN rail
1º Put on DIN rail.
2º Press spring action.
3º Pull down, lock.
1º
2º
3º
Installed
Removal
1º Press spring action.
2º Pull down and front.
3º Pull up to release.
1º
3º
2º

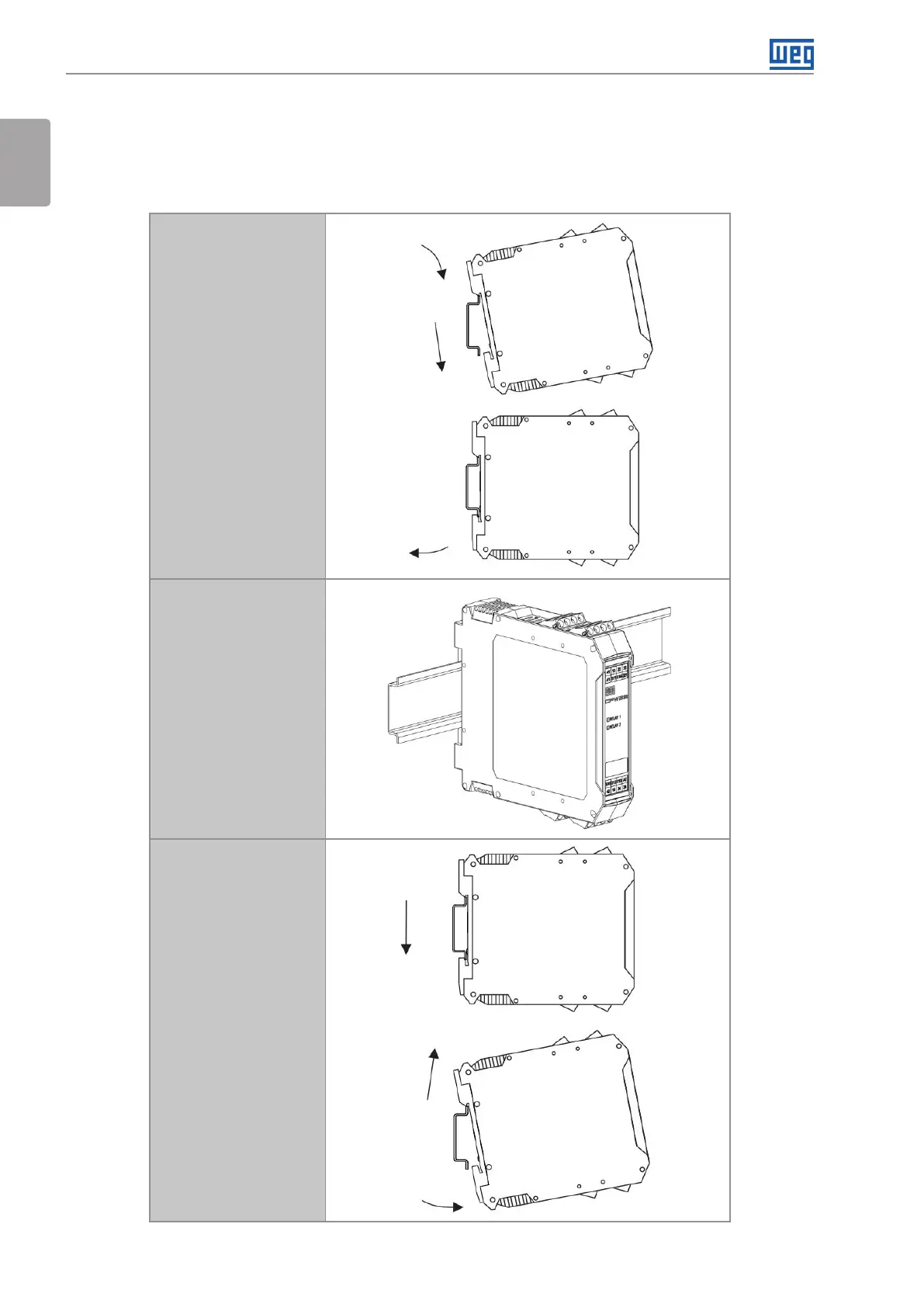

Figure 3.1: Mounting
