WEG SSW07 Series User Manual

5
Local/Remote Modes (Optional HMI):
In the previous section the soft starter was operated from the keypad (Local Mode). Note the green local indicator LED on
the bottom right of the keypad. For the factory default programming, the selection of the operation mode (Local/Remote)
is made via the “Local/Remote” key (default is Remote). Pressing of the “Local/Remote” will alternate operation between
local & remote. Notice the indicator switches from the green to the red indicator LED when “Local/Remote” is pressed.
If you wish to use an external Local/Remote switch set P220=4, connect the switch to one of the Digital Inputs (DI1-DI3),
and set the corresponding parameter (P263 to 265=2).
To always run in Local mode set P220=0.
To always run in Remote mode set P220=1.
Control and Signal Connections:
Control and signal connections (digital inputs and relay outputs) are made through the terminals (see Figure 2).

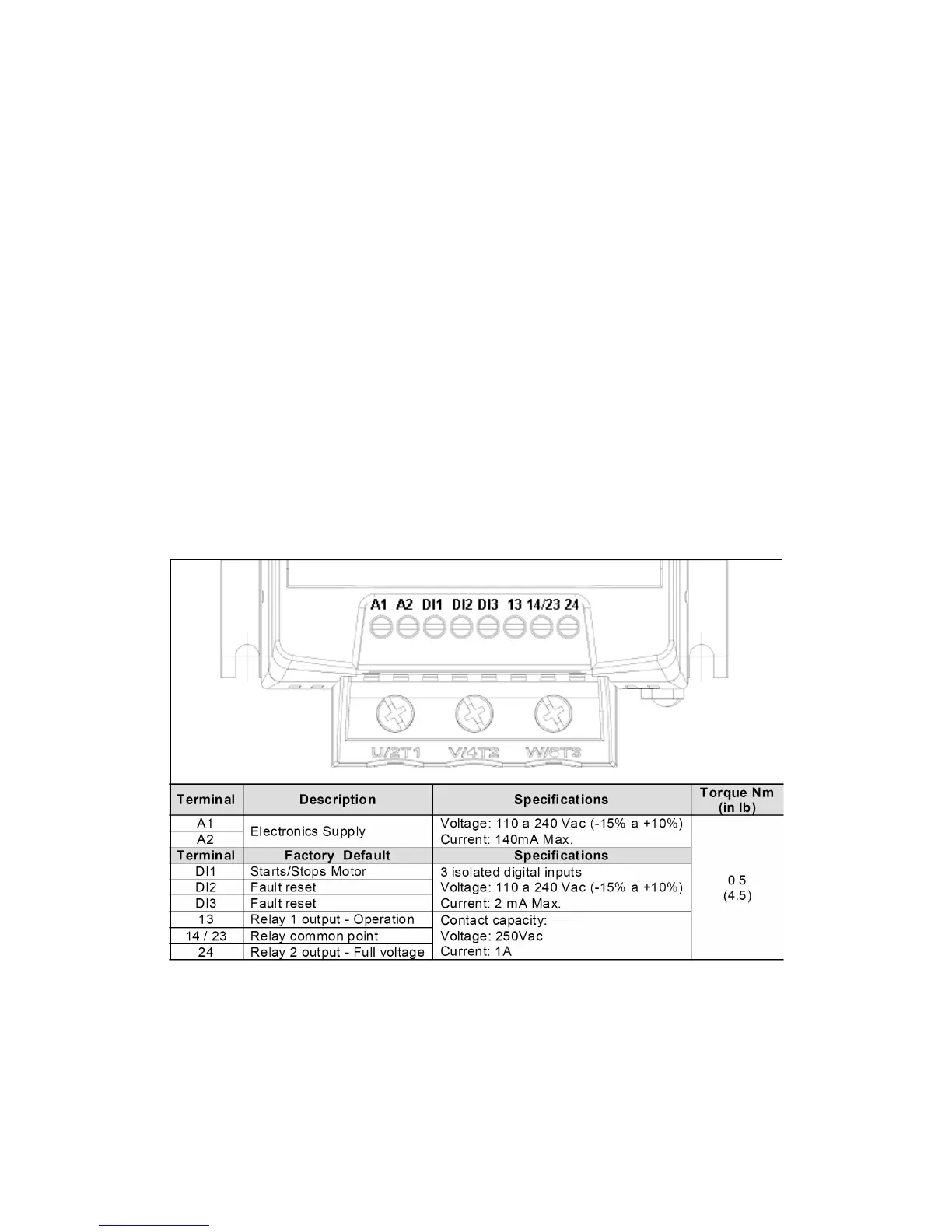

Figure 2 – Control and Signal Connections

WEG SSW07 Series Specifications

General

Control Type	Voltage Ramp (VR), Current Limit (CL)
Starting Method	Soft Start
Number of Starts per Hour	Up to 10
Frequency	50/60 Hz
Protection Degree	IP20
Protection	Phase Loss
Operating Temperature	-10 to 50 °C
Communication	RS485 Modbus RTU
Bypass Contactor	Optional
Humidity	Up to 95% non-condensing
Altitude	Up to 1000m
Voltage	220-575 V
Input Voltage	220-575 V
Storage Temperature	-25 to 60 °C
