Wega EVD Use And Maintenance Manual

TECHNICIANS' manual 25 of 100
5.6 Drilling the support base

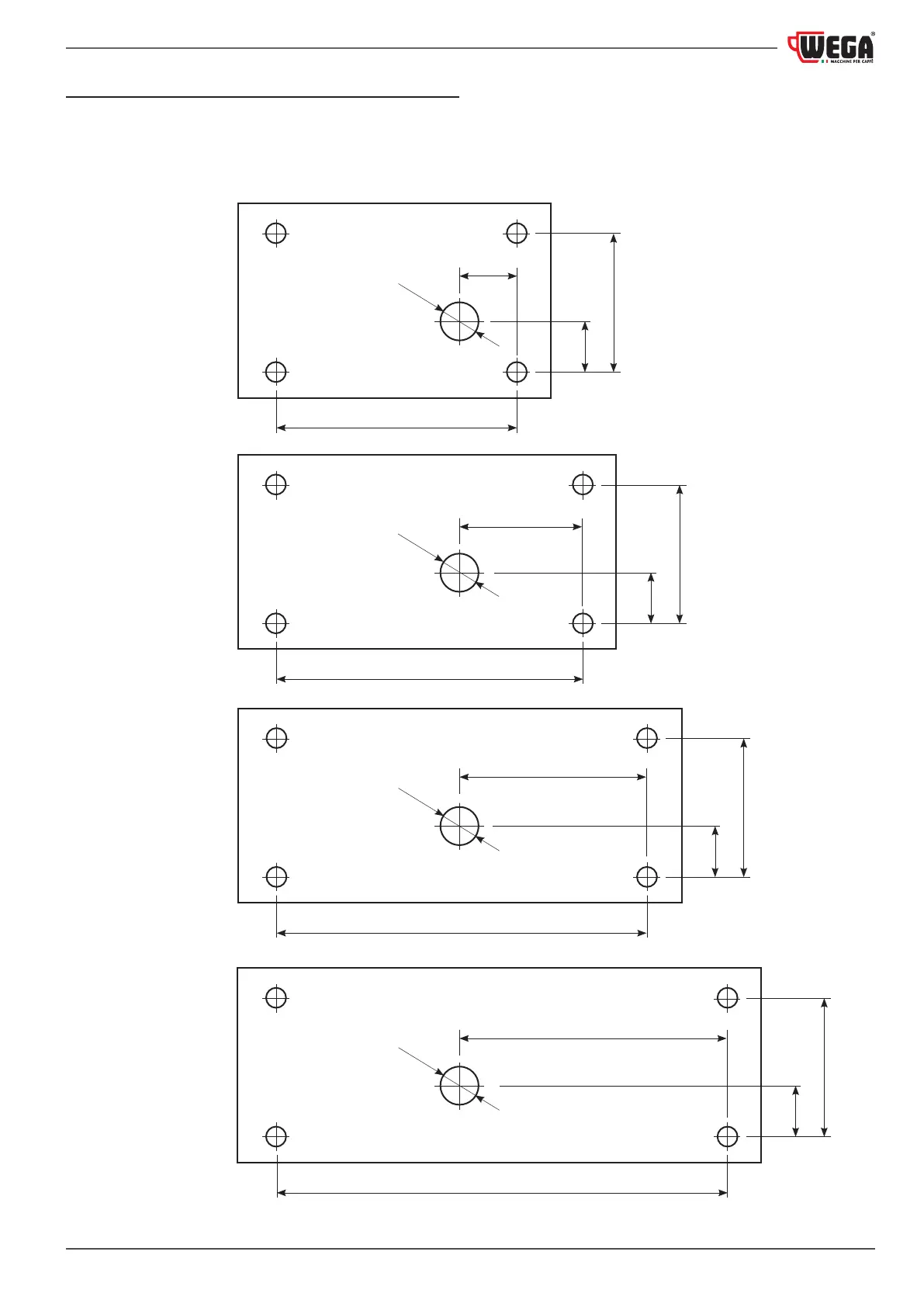

If holes need to be drilled into the support base to let the wa-
ter inlet hoses, outlet hoses and power cables pass through,
follow the directions given in the drawings below.
1 GROUP
COMPATTA
326 mm
160 mm
Front of the machine
200 mm
382 mm
100 mm
4 GROUPS
400 mm
1016 mm
Front of the machine
382 mm
200 mm
100 mm
3 GROUPS
300 mm
776 mm
Front of the machine
382 mm
200 mm
100 mm
2 GROUPS
200 mm
536 mm
Front of the machine
382 mm
200 mm
100 mm
