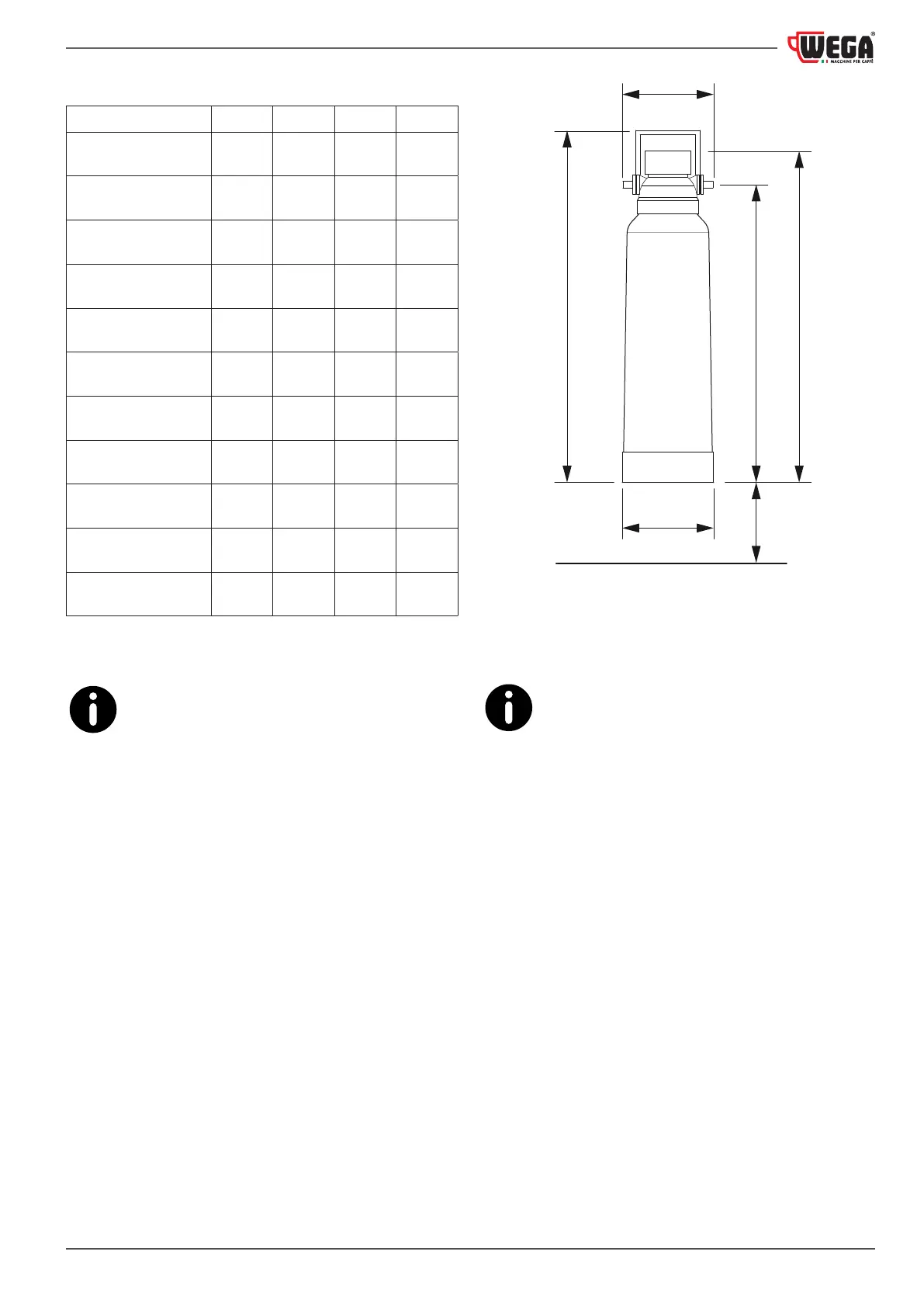

7.4.3 Technical data
Model V M L XL
Connection type 3/8" 3/8" 3/8" 3/8"
Min.-max. water sup-
ply pressure (bar)
2-8 2-8 2-8 2-8
Min. - max. water
temperature (°C)
4-30 4-30 4-30 4-30
Room temperature
min-max (°C)
4-40 4-40 4-40 4-40
Total height (A) with-
out bracket (mm)
420 475 500 500
Total height (B) with
the bracket (mm)
445 500 530 530
Connection (C) height
(mm)
370 425 450 450
Distance from the
oor (D) (mm)
65 65 65 65
Filter head width (E)
(mm)
125 125 125 125
Filter cartridge diame-
ter (F) (mm)
115 130 145 145
Weight (kg)
(empty/with water)
2.1/3.2 2.4/4.2 3.4/5.9 3.8/6.0
Replace the water lter cartridge at the frequency
indicated by the manufacturer.
E
F
B
C
D
A
To use and maintain the water lter, follow the
indications by the manufacturer.
