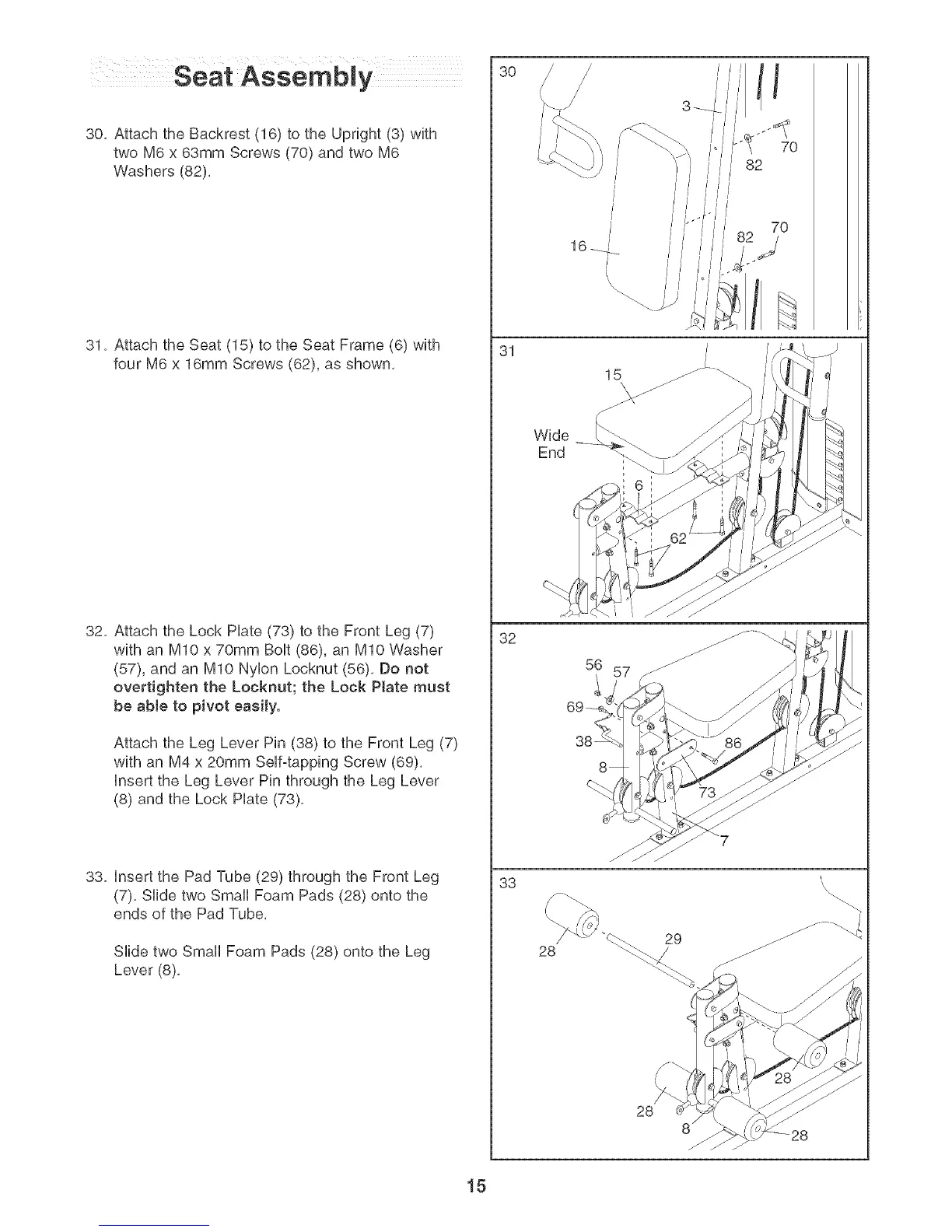

30, Attach the Backrest (16) to the Upright (3) with
two M6 x 63mm Screws (70) and two M6
Washers (82),
31, Attach the Seat (15) to the Seat Frame (6) with
four M6 x 16mm Screws (62), as shown,
32, Attach the Lock Hate (73) to the Front Leg (7)
with an MIO x 70mm BoUt(86), an MIO Washer
(57), and an MIO NyUonLocknut (56), Do not
overtighten the Locknut; the Lock Plate must
be able to pivot easily.
Attach the Leg Lever Pin (38) to the Front Leg (7)
with an M4 x 20mm Serf-tapping Screw (69),
Unsertthe Leg Lever Pin through the Leg Lever
(8) and the Lock Hate (73),
33, Unsertthe Pad Tube (29) through the Front Leg
(7), SHde two Small Foam Pads (28) onto the
ends of the Pad Tube,
SHde two Small Foam Pads (28) onto the Leg
Lever (8),
3O
31
32
33
J
Wide
End
28
56
29
28
82
15
