3, 3

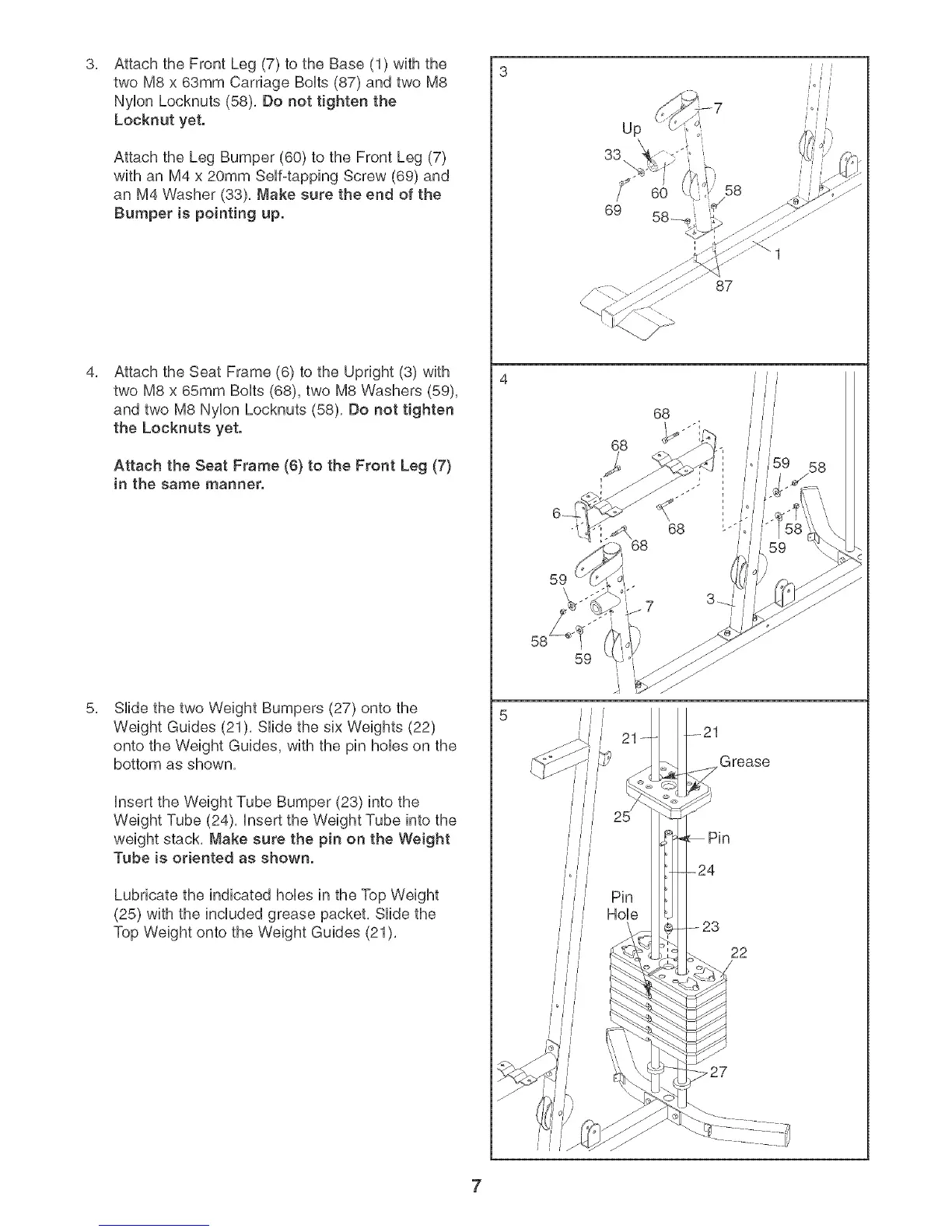

Attach the Front Leg (7) to the Base (1) with the
two M8 x 63mm Carriage BoUts(87) and two M8
NyUonLocknuts (58), Do not tighten the
Locknut yet.
Attach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 20mm Self°tapping Screw (69) and
an M4 Washer (33), Make sure the end of the
Bumper is pointing up.
Attach the Seat Frame (6) to the Upright (3) with
two M8 x 65mm Bolts (68), two M8 Washers (59),
and two M8 Nylon Locknuts (58), Do not tighten
the Locknuts yet.
Attach the Seat Frame (6} to the Front Leg (7}
in the same manner.
Slide the two Weight Bumpers (27) onto the
Weight Guides (21), Slide the six Weights (22)
onto the Weight Guides, with the pin holes on the
bottom as shown,
Insert the Weight Tube Bumper (23) into the
Weight Tube (24), Insert the Weight Tube into the
weight stack, Make sure the pin on the Weight
Tube isoriented as shown.
Lubricate the indicated hoUesin the Top Weight
(25) with the included grease packet, SHde the
Top Weight onto the Weight Guides (21),
69
60
58
59
68
68
68
7
59
_A
Grease
22
7
