6, 6

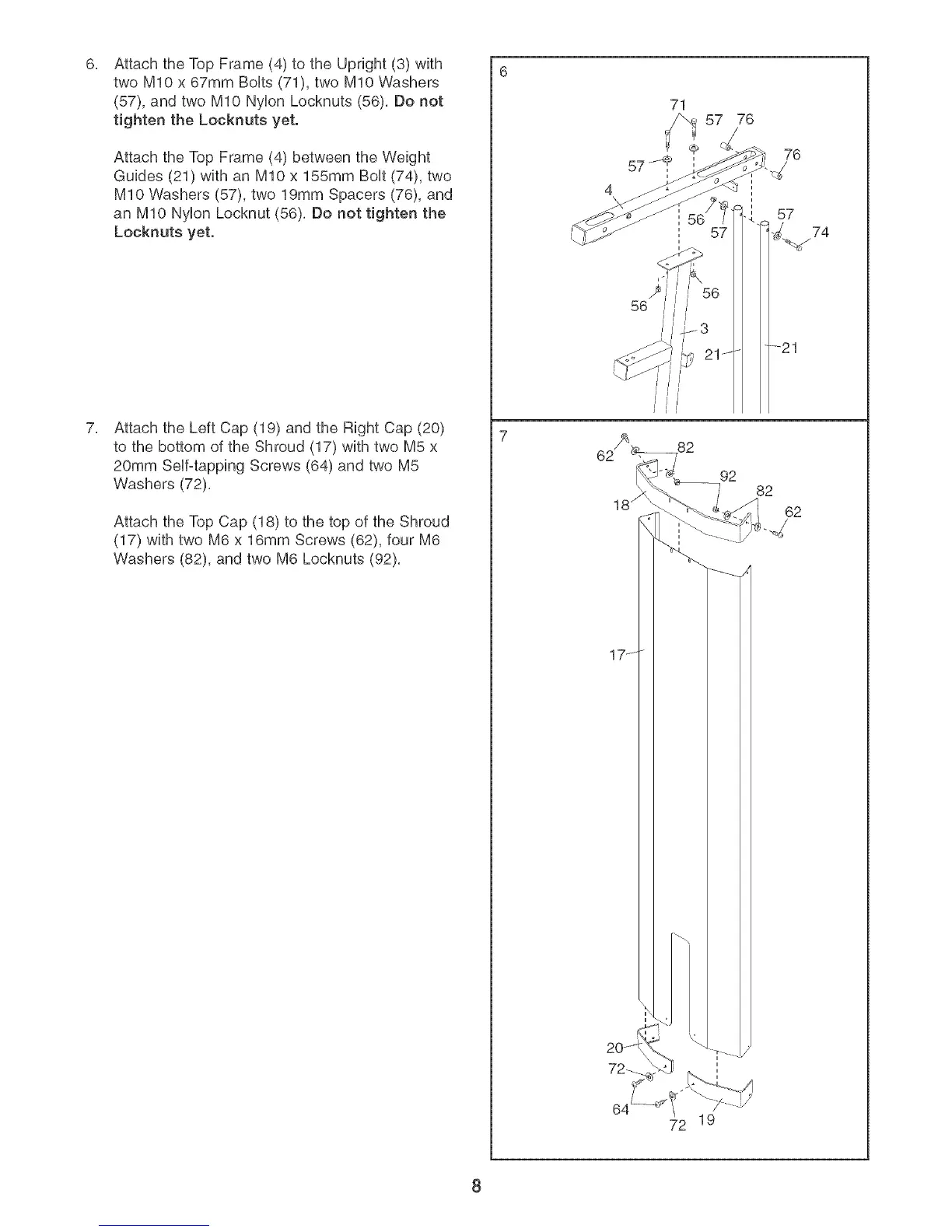

Attach the Top Frame (4) to the Upright (3) with
two MIO x 67mm Bolts (71), two MIO Washers
(57), and two MIO Nylon Locknuts (56), Do not
tighten the Locknute yet.
Attach the Top Frame (4) between the Weight
Guides (21) with an MIO x 155mm Bolt (74), two
M10 VVashers (57), two 19mm Spacers (76), and
an MIO Nylon Locknut (56), Do not tighten the
Locknuts yet.
Attach the Left Cap (19) and the Right Cap (20)
to the bottom of the Shroud (17) with two M5 x
20mm Self-tapping Screws (64) and two M5
Washers (72),
Attach the Top Cap (18) to the top of the Shroud
(17) with two M6 x 16mm Screws (62), four M6
Washers (82), and two M6 Locknuts (92),
71
57 76
82
62
92
72 19
76
57
74
-21
82
62
8
