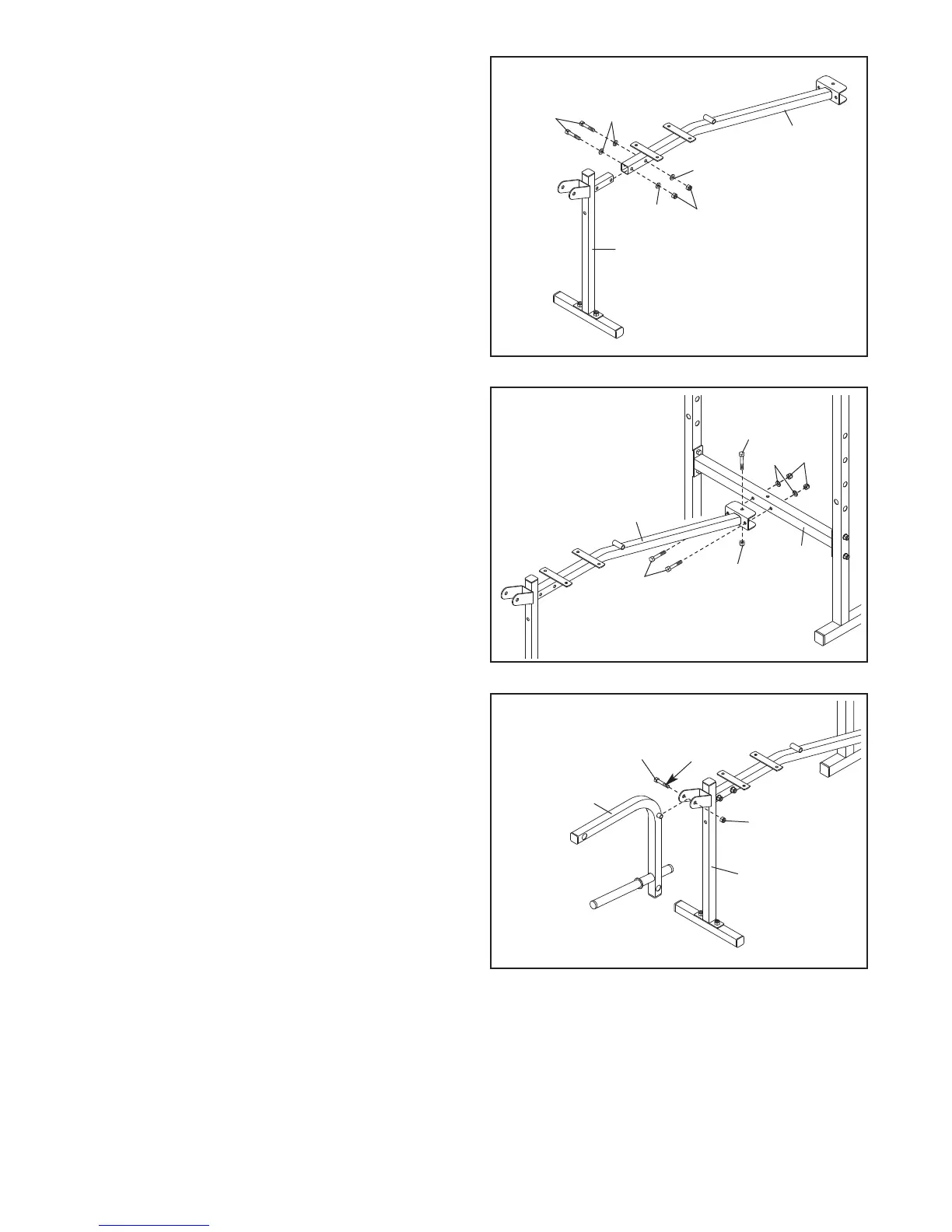

3. Attach the Front Leg (8) to the Frame (2) with two
M
8 x 43mm Bolts (27), four M8 Washers (16),
and two M8 Locknuts (17); do not tighten the
Locknuts yet.
4. Attach the Frame (2) to the Crossbar (3) with three
M8 x 55mm Bolts (18), two M8 Washers (16), and
three M8 Locknuts (17); do not tighten the
Locknuts yet.
5. Apply some of the included grease to an M10 x
63mm Bolt (32). Attach the Leg Lever (4) to the
Front Leg (8) with the Bolt and an M10 Locknut
(33). Do not overtighten the Locknut; the Leg
Lever must pivot easily.
